Zorro Unplugged

Zero Energy Cost

Compact unit with high efficiency solar panels

Overview

NEW SOLAR PATHWAY LIGHT AVAILABLE NOW!

The Zorro Unplugged is an ALL-IN-ONE luminaire design that achieves exceptional performance, it has an integrated solar panel, LED array, microwave sensor and battery all within one standalone system. This light generates energy and stores it in a high quality battery that delivers light using LUMILEDS 5050 LEDs.

The smart control system enables you to customise the lighting operation to meet the needs of the users within the environment.  Options include both sensor and/or time control.

The Zorro Unplugged is a convenient and cost-effective solution to improve visibility and safety in area that traditionally have been difficult to light because power is not available.

Product Features

5 year warranty Daylight Sensor Ingress Protection IP65 Rating LiFePo4 Battery Low Maintenance Microwave Sensor Remote Control Safety Compliance Time Control
Highlights

Key Features

  • Fully integrated luminaire with solar panel and battery avoids the complexity of assembling third party components on site
  • Adjustable independent LED lamp angle to achieve the optimal light distribution without affecting solar harvesting
  • Remote control to set the lighting levels at scheduled times
  • Reduced installation cost as no cabling is required
  • Industry leading performance with >190 Lm/W luminaire efficacy
  • Smart controls with integrated microwave motion sensor and intelligent time control
  • Quality monocrystalline silicon solar panel
  • 5 year product warranty and 3 years battery warranty

Applications

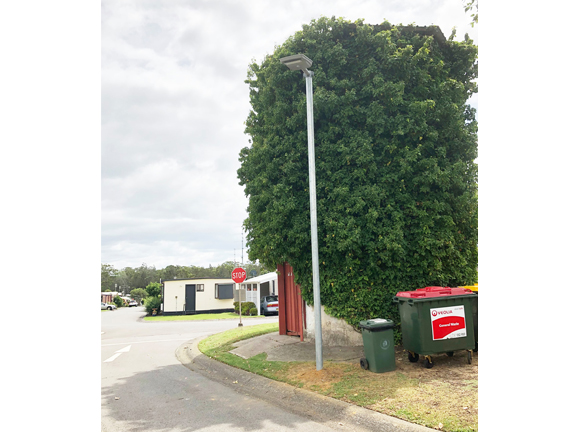

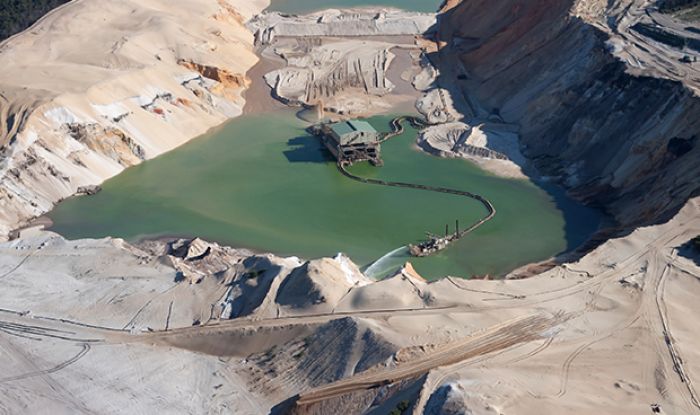

Caravan parks Pathways Temp construction sites Univesities & school campuses Mine sites
Technical Info
OPTICAL
Light SourceLUMILEDS LEDs
Lumen output1520 – 5700 lumens
CRIRa>70
CCT4000K
Luminaire efficacy>190 lm/W

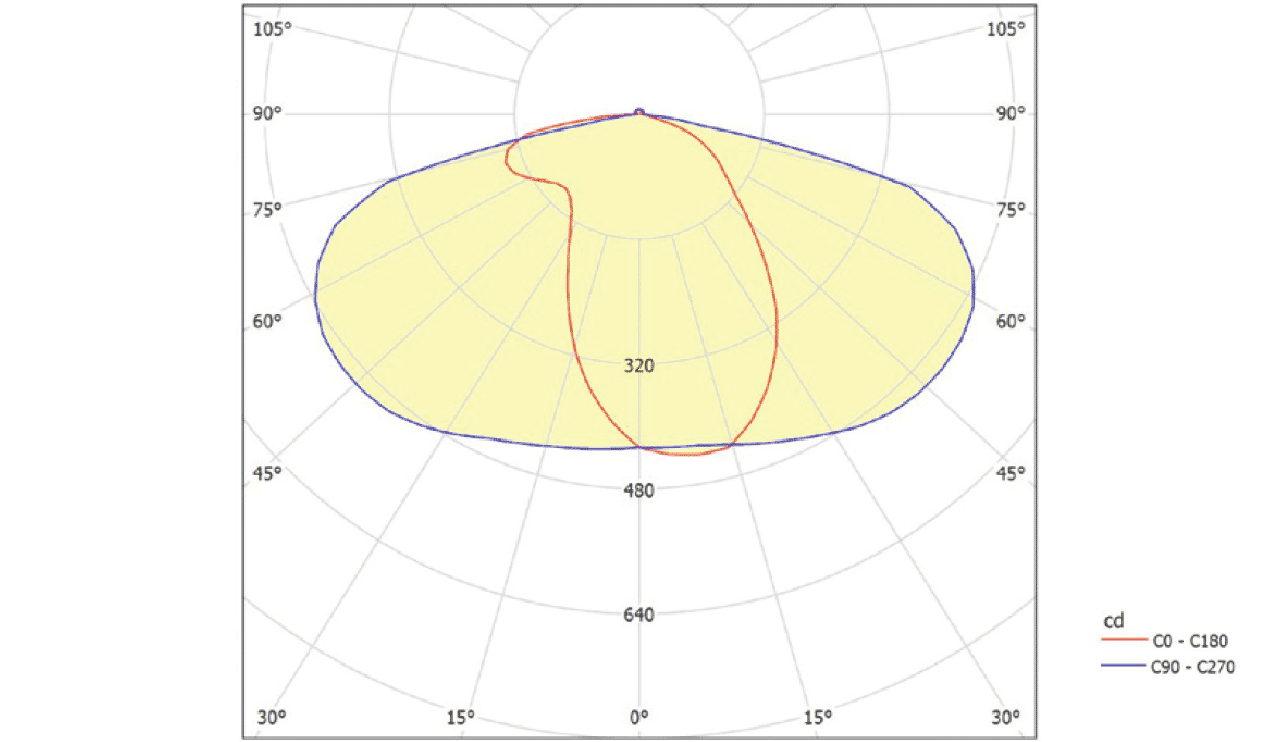

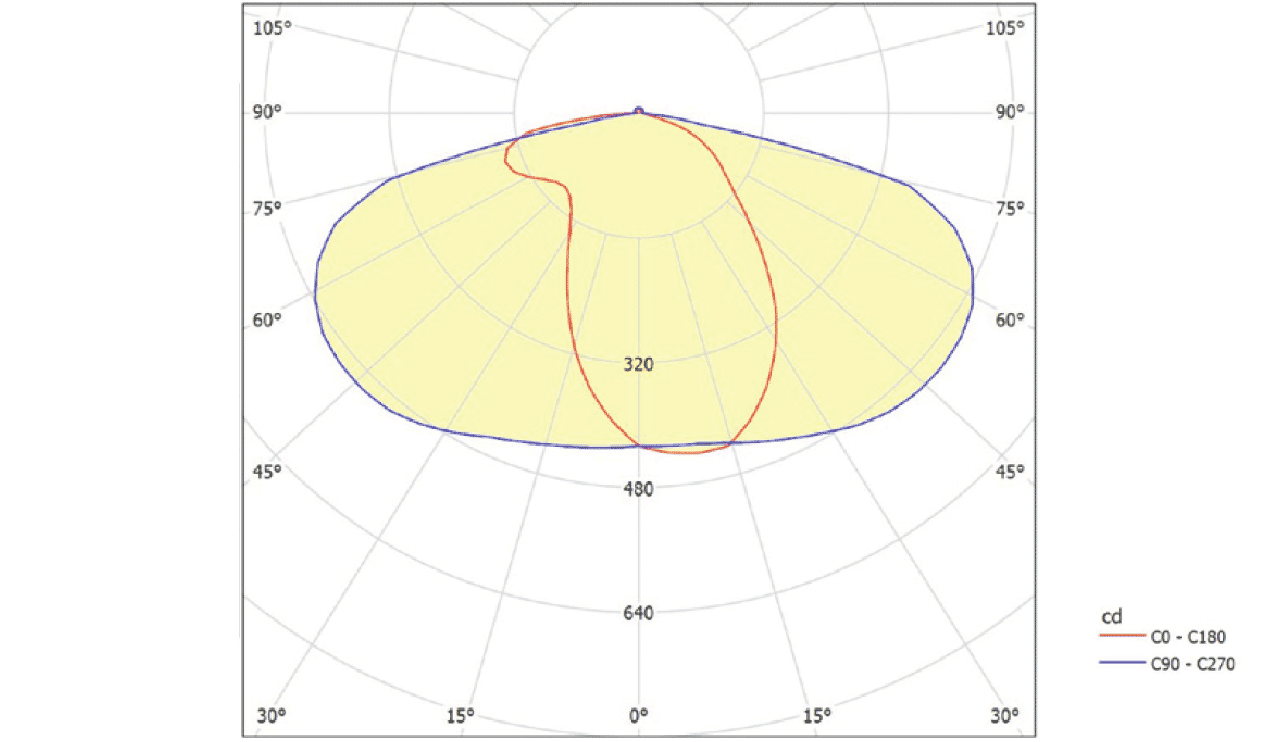

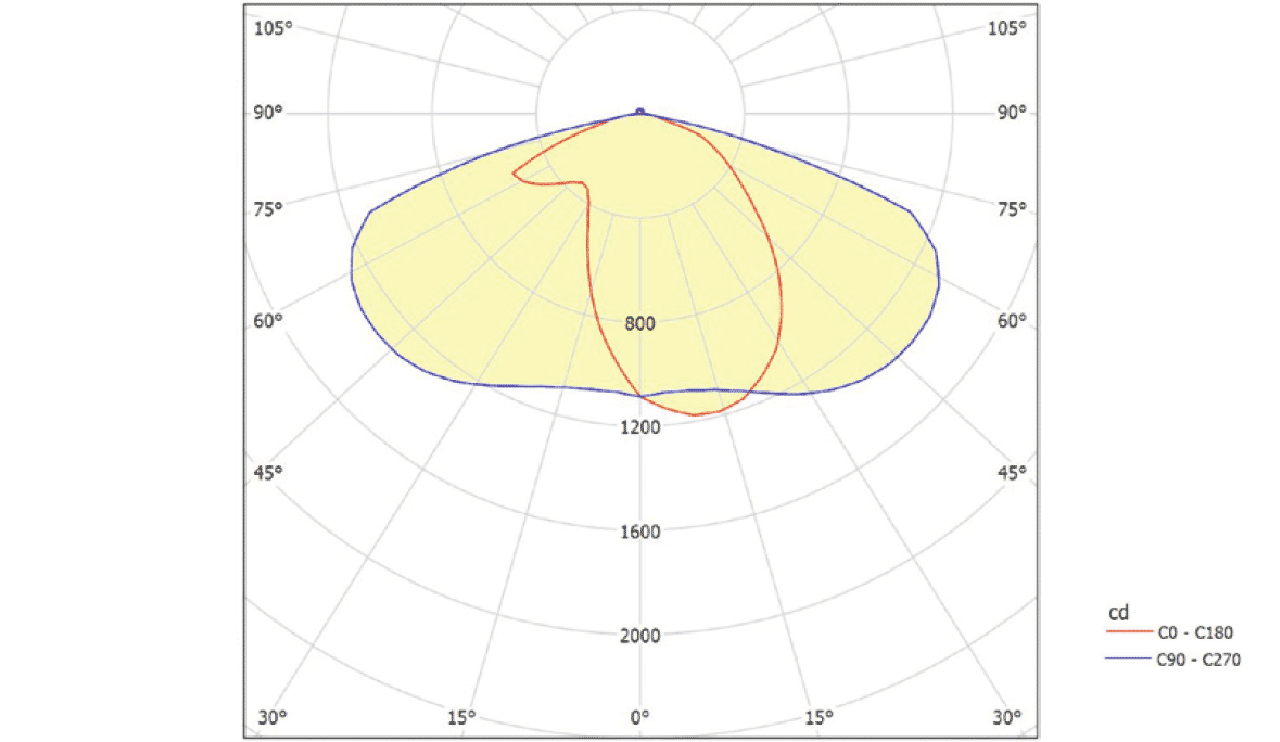

Beam angleIES Type III

ELECTRICAL
Power Consumption8W, 20W & 30W
Solar panel power generation17W, 36W & 52W
Battery rating9Ah, 19.2Ah & 30Ah; 12.8V LiFePO4
Battery lifespan2000 Cycles
Operating hoursUp to 36 hrs in dim mode
Battery charging time7 hrs (full sun)

ENVIRONMENTAL
IP ratingIP65
Impact ratingIK08 (optical lens)
Weight5.3 - 13.5 kg
Ambient temperature rating-20°C to +60°C
Material Composition (body)Die cast aluminum
Material Composition (solar panel)Monocrystalline silicon
Material Composition (lens)Polycarbonate
Expected Lifespan>72,000 hours at L70

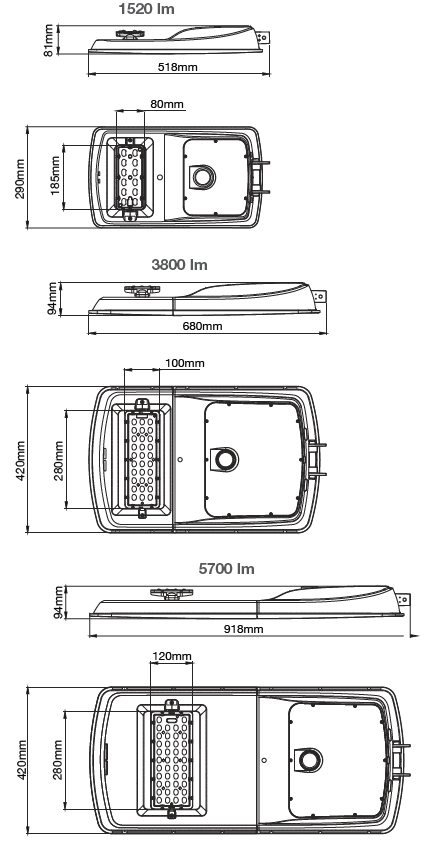

Dimensions
MODEL LUMEN OUTPUT (lm)
 DIMENSIONS (mm)
WEIGHT (kg)
SSL08-4K-TIII-GRY1520518 x 290 x 815.3
SSL20-4K-TIII-GRY3800680 x 420 x 949.8
SSL30-4K-TIII-GRY5700918 x 420 x 9413.5

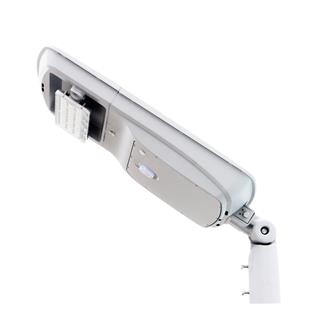

SWIVEL MOUNT
The standard Zorro Unplugged swivel mount fits on round poles from ⌀45-⌀60mm. Additional mounting accessories are available for round poles from ⌀50-⌀120mm and square poles from 50-100mm in width.

Installation

The Zorro Unplugged solar light has an integrated battery and a microwave motion sensor. The smart control system uses a microwave motion sensor and has an intelligent time control system. This light automatically switches on at dusk and switches off at dawn.

To maximise harvesting the Zorro Unplugged should not be placed in shadows and it is recommend that a minimum of 4 hours/day of sunlight is required for optimal operations. If the battery falls below 40% charge then the light fitting automatically dims to 50%.

REMOTE CONTROL
The remote control is used to set the lighting levels at scheduled times after sunset using the time intelligent mode. Full night, part night and dimming options available.
It is recommended that if two fittings are using the microwave motion sensor mode they should be mounted >5m apart to avoid microwave sensor interference.
Setting*  ApplicationWinter**  Spring, Summer, Autumn

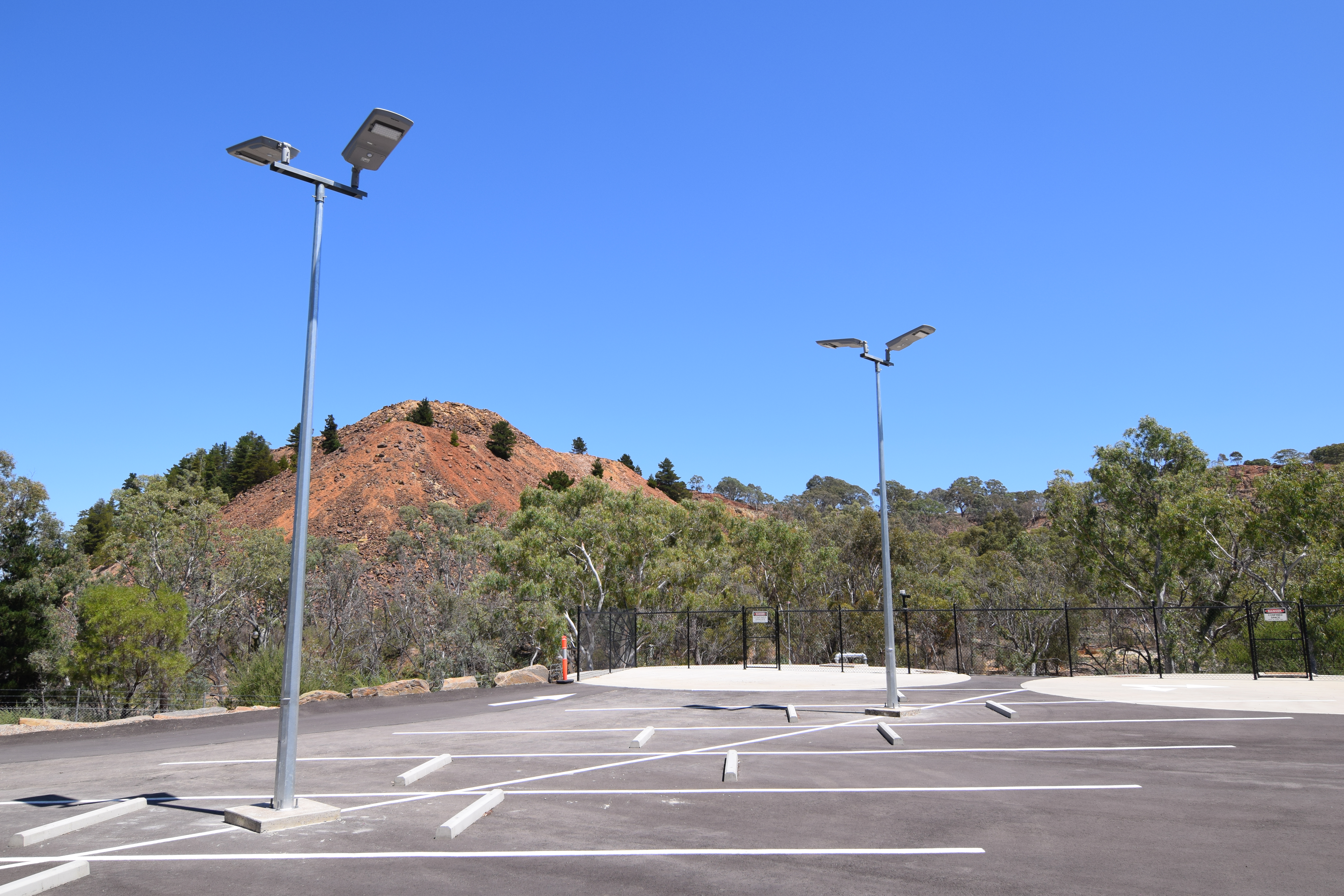

20-80% sensorPathways, car park, campgrounds
40-100% sensorPathways, car park, campgroundsOperates all night when the sensor is triggered less than 70 times per night
Time intelligent modeMost activity is during the first few hours of the evening
Time intelligent mode (morning)Most activity is during the first few hours of the evening and again early morningThe light may not operate in the early hours of the morning
Constant 100%Constant light is required4hrs of light4hr/8hr timer recommended
Constant 70%Constant light is required9hrs of light
Constant 40%Constant light is required

*Refer to datasheet/installation instructions for details
**Applies for installations where the solar panel faces North. East or West facing installations can reduce battery charging by up to 30% in Winter.

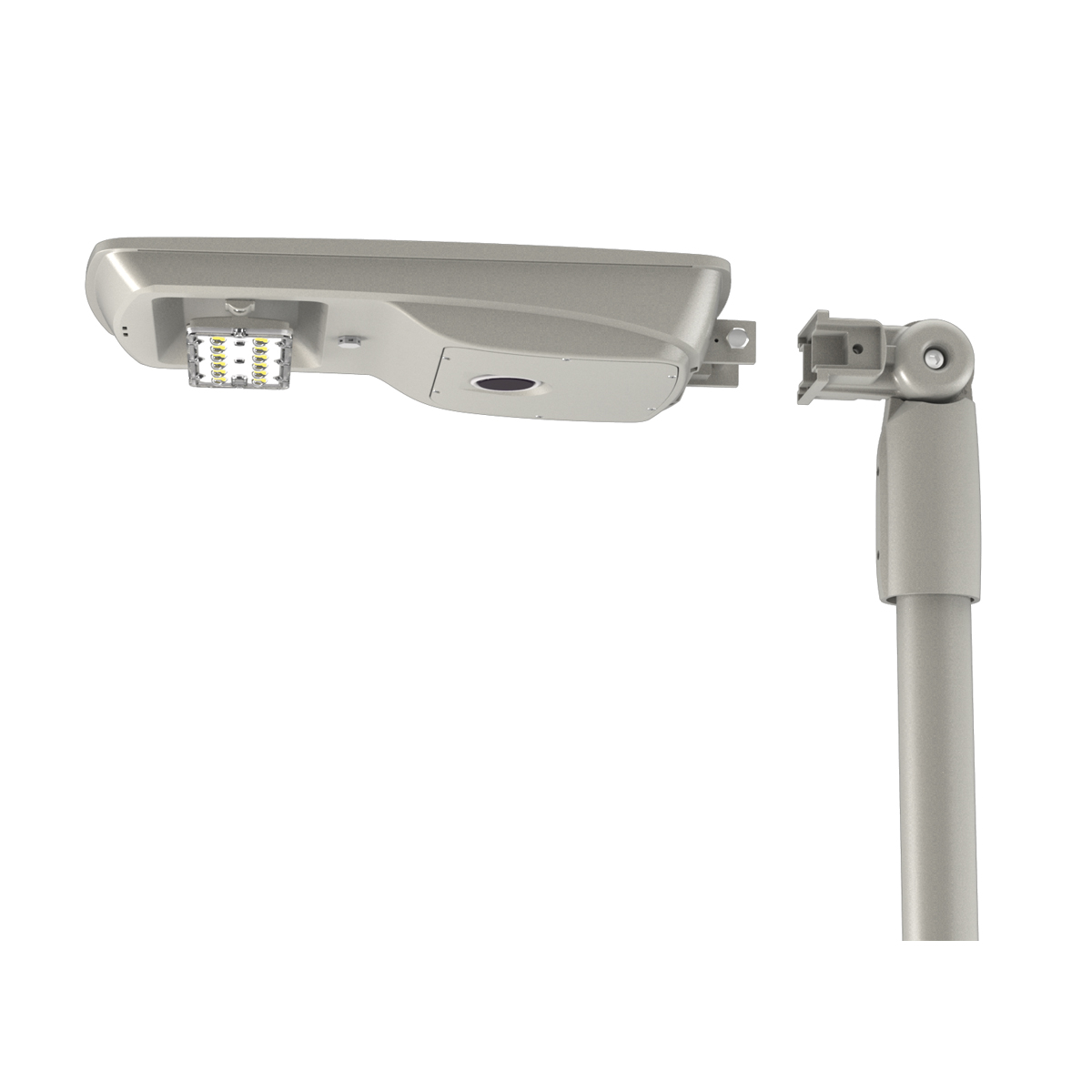

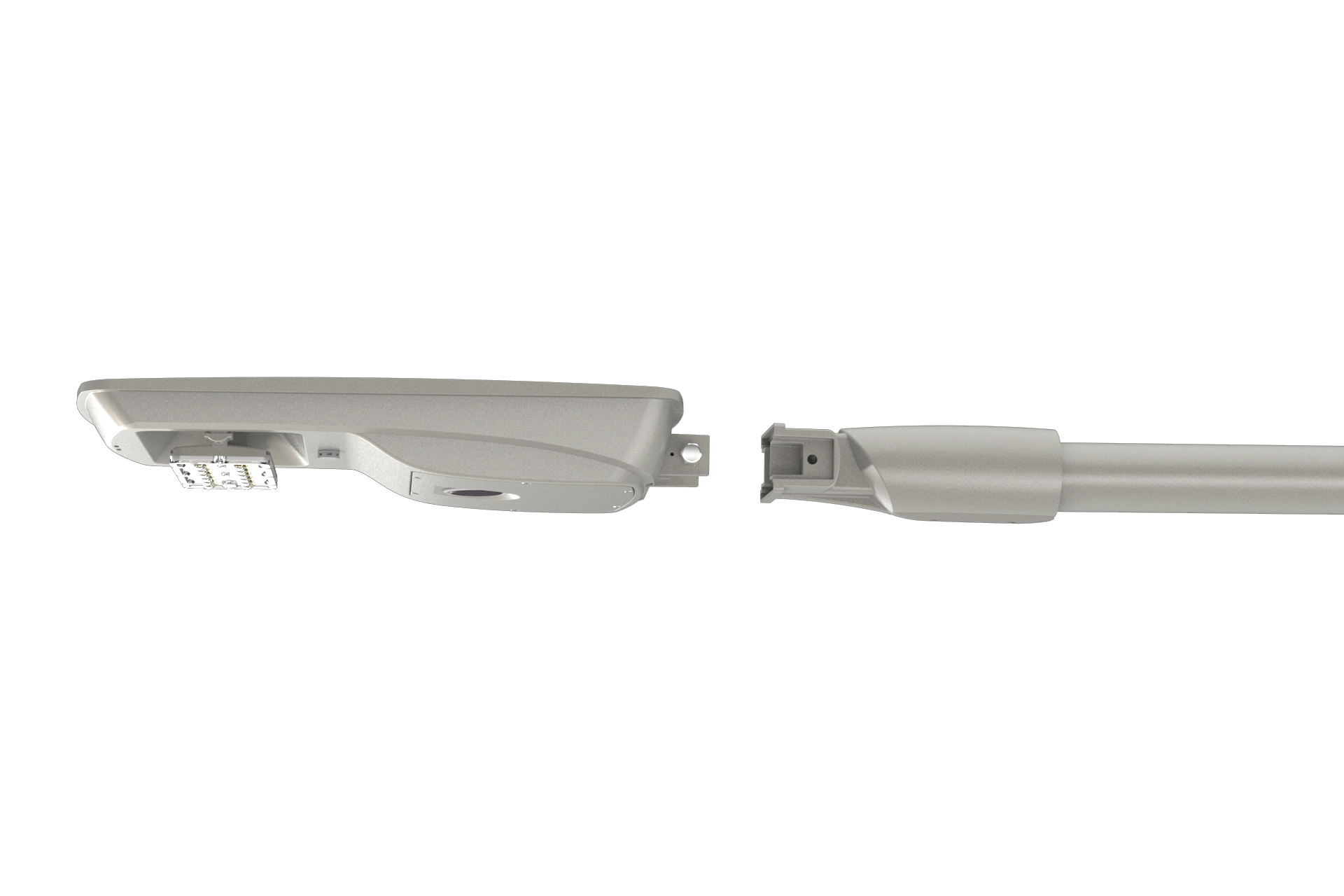

MOUNTING
The Zorro Unplugged comes with a standard swivel mount, which is versatile and structurally strong. Simply slip the end socket onto a ⌀45- ⌀60mm round pole. The optional Trunnion mount gives total flexiable for mounting. It can easily mount onto a ⌀50- ⌀120mm round pole or square pole 50-100mm.

SWIVEL MOUNT



TRUNNION MOUNT


Download the installation manual
