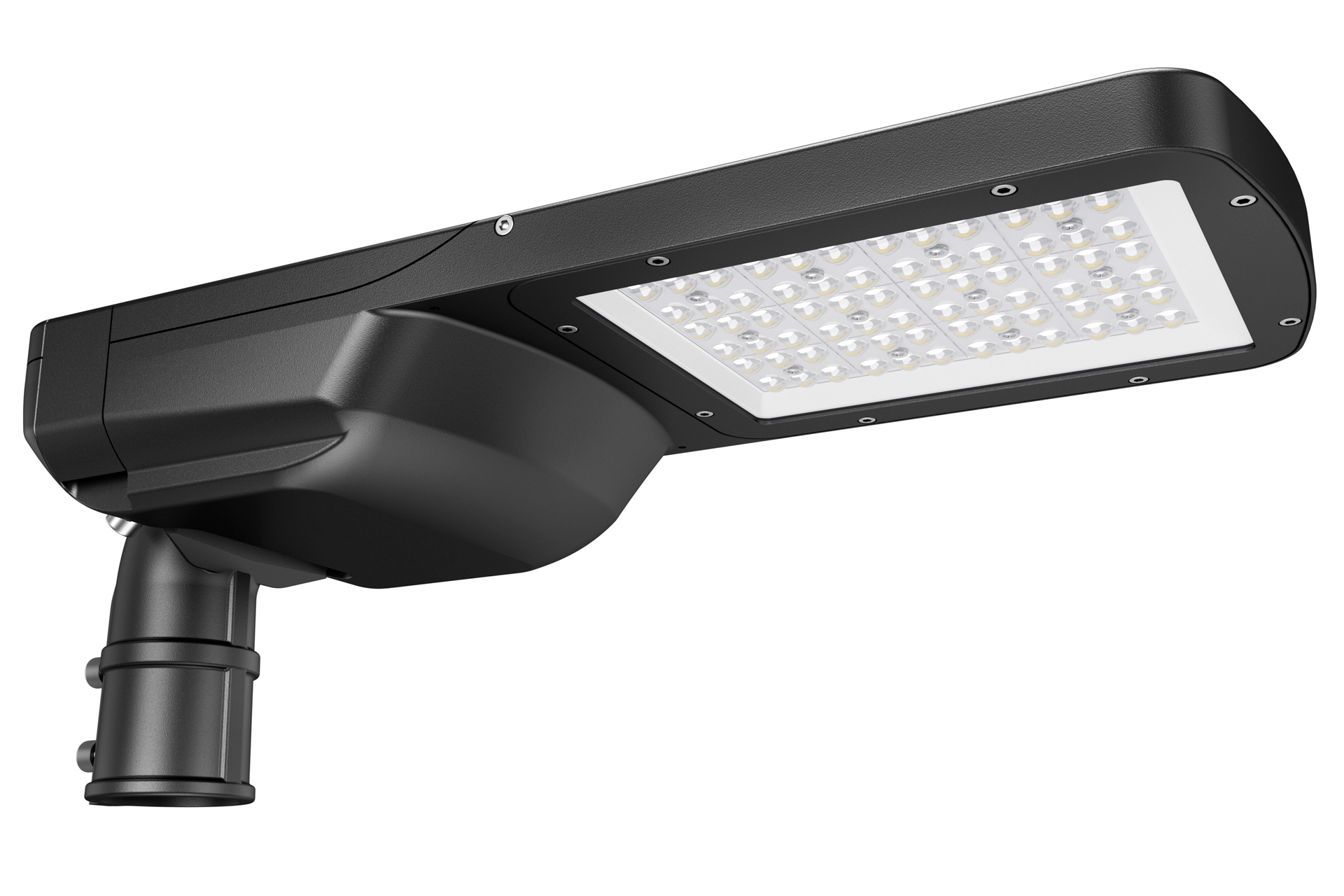

Zorro 2

RELIABLE, EFFICIENT AREA LIGHT

Overview

The Zorro 2 is a robust and reliable pathway and area light. It features superior optical performance with >150 lumens per watt. This versatile area light offers a wide range of power 15W to 200W and multiple lens options available.

This luminaire has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn.

Get total lighting control with optional Casambi wireless control technology. It is easy to commission, flexible, scalable, and intelligent — giving you smart control over your area lighting system.

Built for reliability, the Zorro 2 area light offers long-lasting performance even in harsh outdoor environments.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten Zorro 2 Datasheet (861.9KB)
enLighten Zorro 2 DC Datasheet (869.4KB)
enLighten Zorro 2 Installation Instructions (719.3KB)
enLighten Zorro 2 PP Cat Spacing Tables (455.5KB)

Secure Zone Documents

Optional Features

Highlights

Key Features

Wide range of power and lens options
Easy to install and maintain - Toolless clipping system
High efficacy >150 lm/W using Lumileds LED
Smart controls optionals: PE Sensor and Casambi wireless control technology
Inbuilt 10kV surge protection
High ingress protection IP66
High impact rating IK10
Available in black and optional in silver
VEU approved
IPART approved

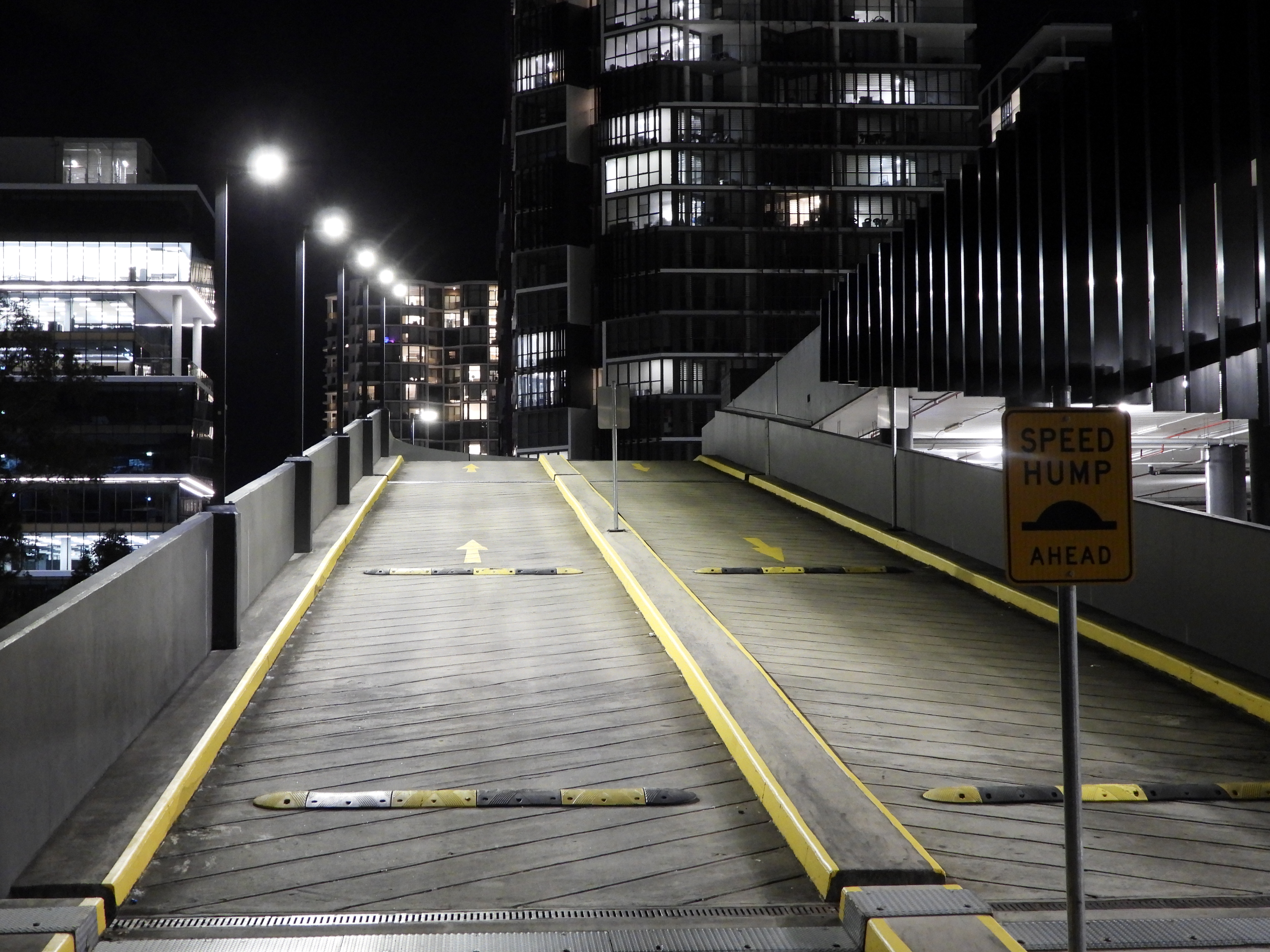

Applications

Technical Info

Zorro 2 MODELS	DIMENSIONS (mm)	LUMEN OUTPUT (Lm)	RATED POWER (W)	WEIGHT (kg)
ZAL15S-Tx-4K-B	610 x 190 x 143	2,400	15	4.7
ZAL40S-Tx-4K-B	610 x 190 x 143	6,400	40	4.7
ZAL60S-Tx-4K-B	610 x 190 x 143	8,900	60	4.7
ZAL80M-Tx-4K-B	660 x 240 x 143	12,800	80	5.8
ZAL120M-Tx-4K-B	660 x 240 x 143	18,600	120	5.8
ZAL150L-Tx-4K-B	762 x 290 x 143	23,900	150	8.1
ZAL200L-Tx-4K-B	762 x 290 x 143	29,900	200	8.1

OPTICAL
Light source	Lumileds LEDs
Lumen output	2,400 - 29,900 lm
CRI	Ra>70
CCT	4000K standard; 3000K, 5000K & 5700K optional
Luminaire efficacy	> 150 lm/W

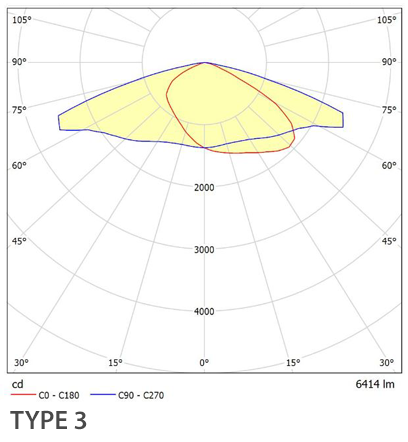

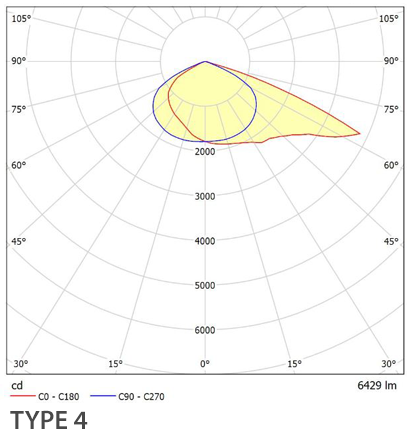

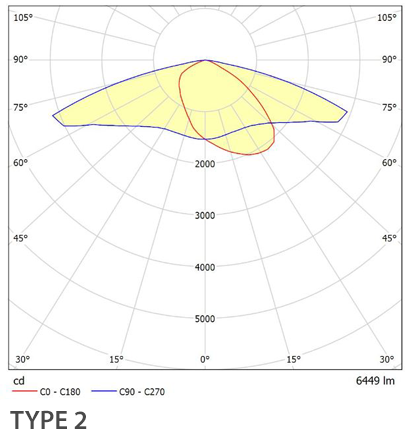

Lens type	T2, T3, T4

ELECTRICAL
Power consumption (W)	15, 40, 60, 80, 120, 150, 200
Operating frequency	50/60 Hz
Operating voltage range	100 - 240V AC
Power factor	>0.9/240V AC at full load
Driver type	Inventronics
Driver efficiency	>90%

ENVIRONMENTAL
IP rating	IP66
Impact rating	IK10
Weight	4.7 - 8.1kg
Ambient temperature range	-40°C to +50°C
Material composition (body)	Powder coated die-cast aluminium
Glass cover	Tempered glass
Expected lifespan	>110,000 hours @ L70

CONTROLS - OPTIONAL

Photo electric (PE) cell
Casambi wireless control
1-10V Dimming

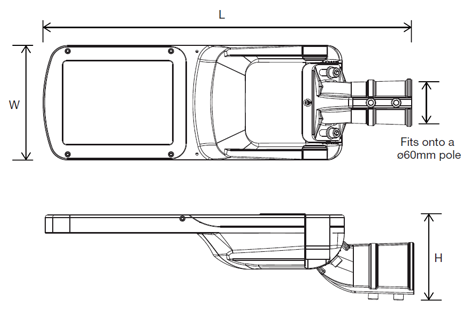

Dimensions

MODEL	DIMENSIONS (mm)
ZAL15S-Tx-4K-B	610 x 190 x 143
ZAL40S-Tx-4K-B	610 x 190 x 143
ZAL60S-Tx-4K-B	610 x 190 x 143
ZAL80M-Tx-4K-B	660 x 240 x 143
ZAL120M-Tx-4K-B	660 x 240 x 143
ZAL150L-Tx-4K-B	762 x 290 x 143
ZAL200L-Tx-4K-B	762 x 290 x 143
