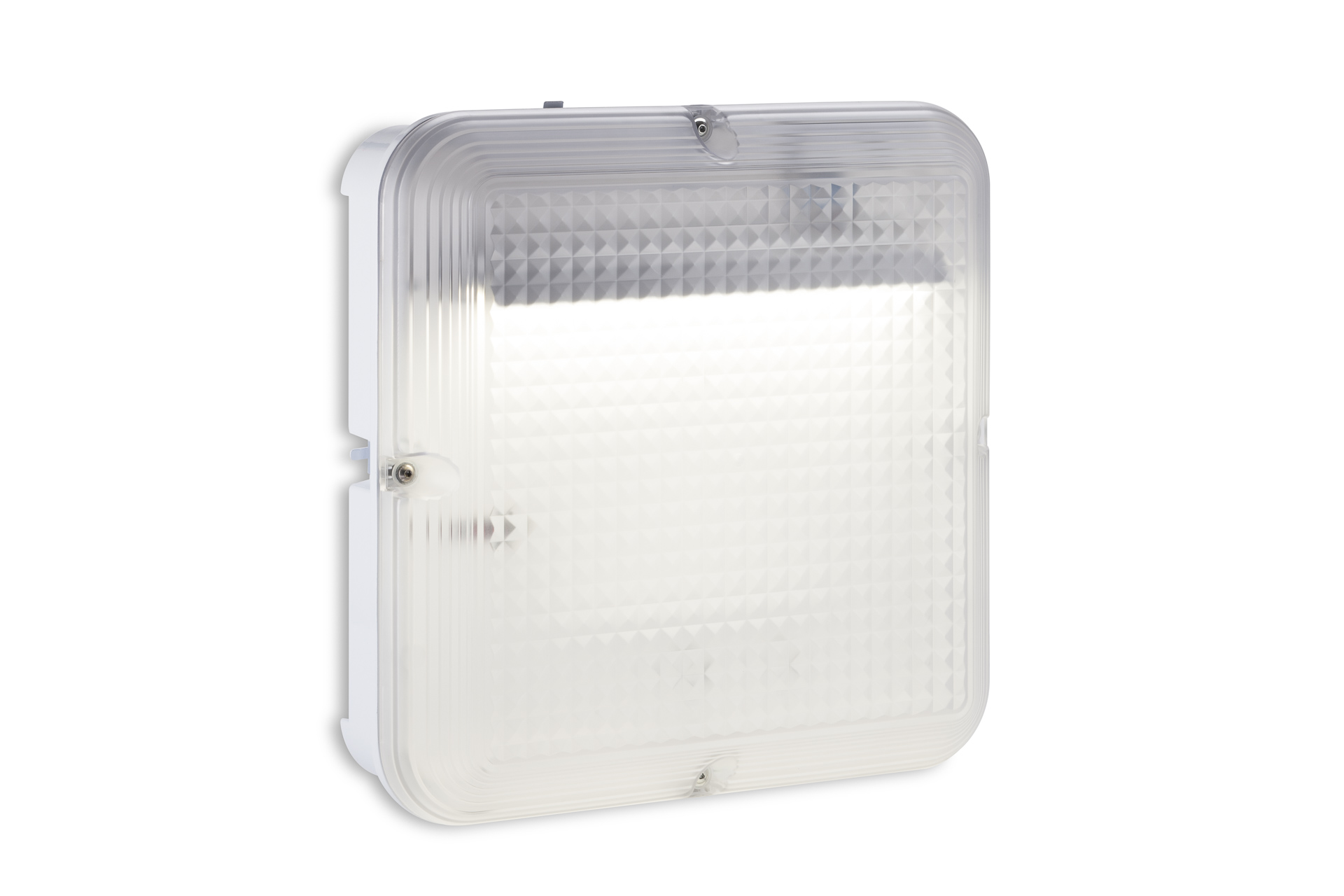

Chamaeleon™ III

Self test, mobile control app and daylight sensor

Product enquiry


Designed in Australia for Australian conditions, the Chamaeleon III has revolutionised the lighting for low occupancy spaces. The award winning patented Chamaeleon lll light offers new design & functionality improvements sourced from user feedback across over 1000+ project installations nationally.

Designed for Car Park and Fire Stairs, this luminaire has a well-known reputation for delivering reliability, maintenance and energy saving benefits.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

App Control 1 Australian Designed 1 Daylight Sensor 1 Microwave Sensor 1 self test 1 emergency 1 (1) IP52 1 1K10 1 7 yr warranty 1

Key Features

  • Monthly battery self test capability for emergency models
  • Integrated microwave motion sensor with range of up to 8m, triggers gradual transition between full & standby light output
  • Ability to adjust standby and full light output to provide a customised solution for each site
  • Lower standby power consumption–now only 5W!
  • Design optimised to improve battery performance & extend battery life
  • Smart Connect base for easy install, removal & maintenance. Maintenance can be performed by a handyman without isolating power
  • Externally accessible drawer for easy battery changeover in emergency versions
  • High performance LUMILEDS LEDs rated @L70 to over 100,000 hours
  • Vandal proof skirt available
  • Daylight sensor enabled, this feature ensures the light is not activated by the motion sensor when daylight is detected but instead remains on standby mode.
  • VEU approved
  • IPART approved



Corridors Fire stairs Plant rooms Store rooms Undercover car parks
Technical Info


CHAM-C Ceiling mount standard
CHAM-C-E Ceiling mounted emergency
Light source Lumileds LED
Lumen output (adjustable via
Chamaeleon III App)
3500 lumen
CRI Ra>80
CCT 4000K
Power consumption 42 -43W full light output, 4 -5W at standby
Operating frequency 50/60 Hz
Operating voltage range 100 -264 V AC
Power factor >0.9 240 V AC at full load
Battery type 9.6V NiMH 2200mAh
Discharge time 90 minutes

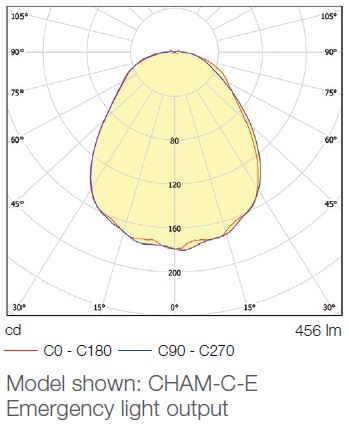

Emergency classification Ceiling mount: C0: D50, C90: D40
Wall mount: C0: D63, C270: D50
IP rating IP52 standard, IP65 models available
Impact rating IK10

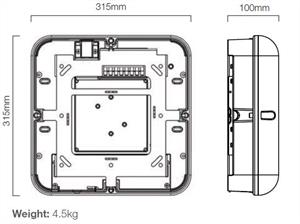

Weight 4.5kg
Ambient temperature range -10°C to +50°C
Microwave sensor range 360 deg; max 8m - adjustable
Microwave sensor operating interval
10 sec to 5 min
Daylight sensor Manually adjustable
Product Review

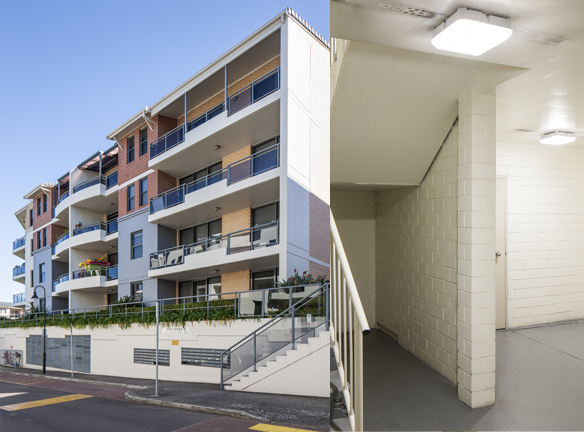

David Ranieri, Riveria Apartments, Chiswick

Future Proofing our apartments

'We went with the Chamaeleon light over lower cost options due to the maintenance features, Our ability to carry spares and have an on-site handyman replace the light fittings or emergency battery without having to disconnect the power was a great tick for us & a future proofing of the lighting system.'

John Brady, Knight Frank

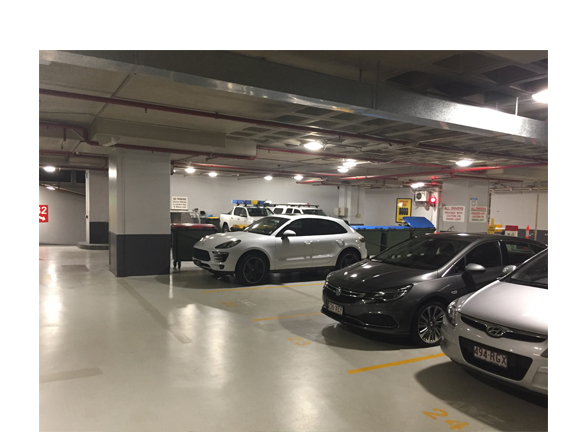

324 Queen St, Brisbane

'The job has been a success. Electrical Services Brisbane has been very good at getting the job completed on time. The lux levels in both the car park and fire stairs have improved greatly.'

Energy savings over a 10 year period: 1,061,040kWh ($134,726)

Stephen Coombs, Country Director of Engineering

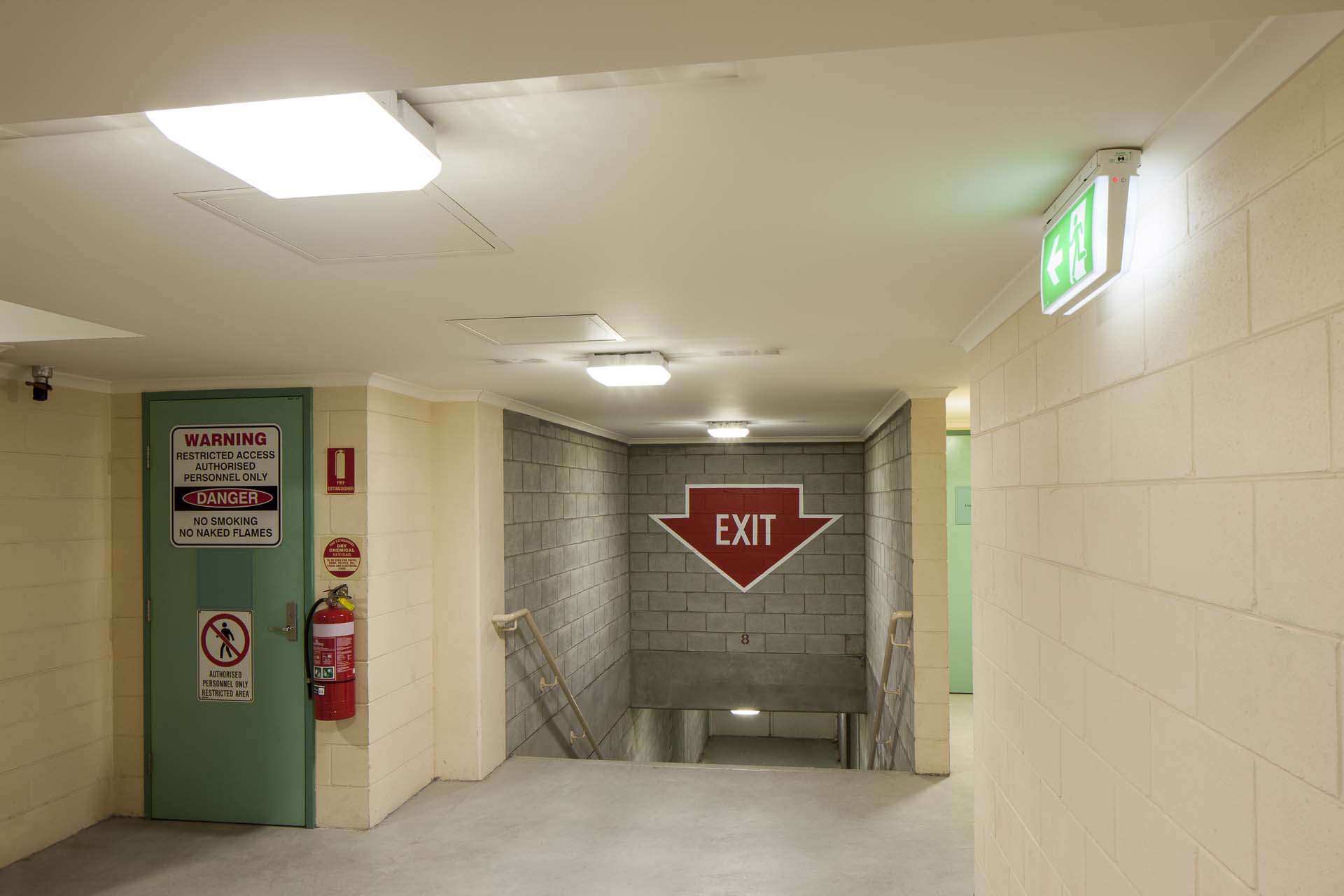

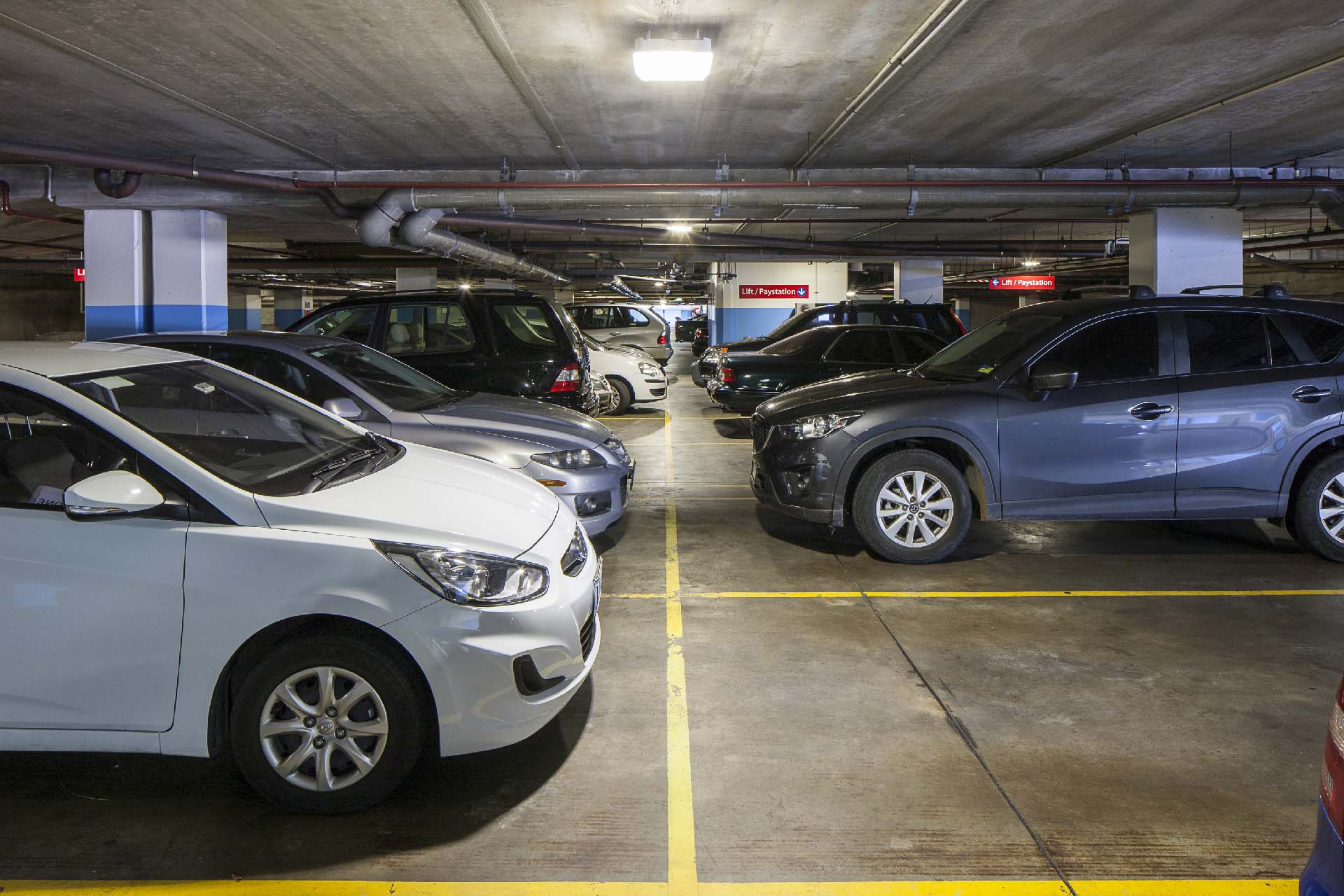

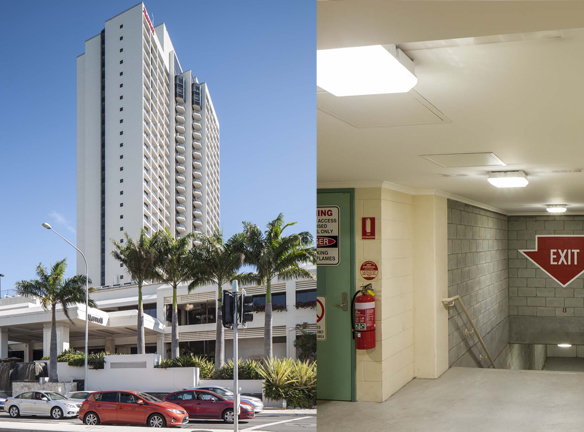

Surfers Paradise Marriott Resort

'We were able to upgrade our ageing fluorescent lighting for over 80% energy savings and reduced maintenance within a competitive payback period. I'm particularly impressed with the Chamaeleon light's plug in / plug out feature which allows for a simple, same day swap over without having to isolate the power.'

Chris Mitton, Engineering Manager

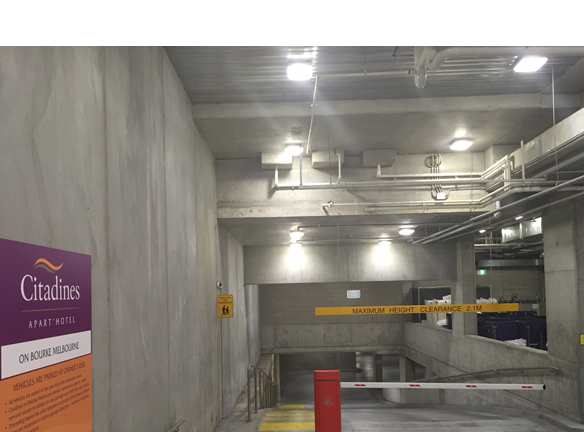

Citadines on Bourke Melbourne

'We have been impressed with the power savings and the robustness of the chamaeleon fixtures. The serviceability of the simple battery changeover for emergency versions has eliminated the need to call out an electrician as there is no need to disconnect the power.

Gordon Streight, Chairman of the Strata Committee

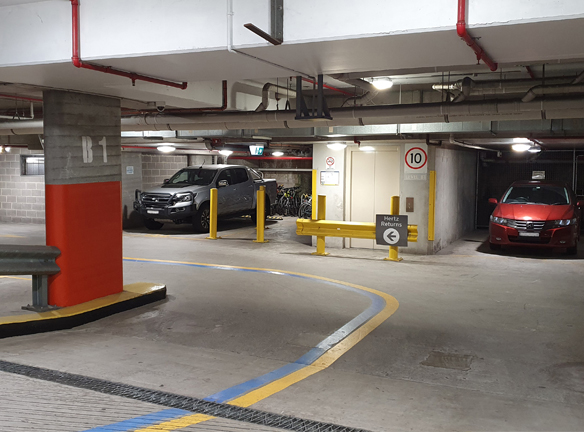

Bauhaus Apartments in Pyrmont
131 apartments and 212 parking spaces spanning over 10 levels

‘I am very happy with the results, the energy savings achieved were almost immediately realised and we experienced over 90% reduction in energy consumed in the car park and fire stairs resulting in a building-wide energy reduction of 35%. We took the opportunity with the upgrade to install new LED corridor sensor lights as well, and were delighted we could tailor the light setting to the residents needs.

We have achieved huge energy savings and have greatly reduced our maintenance costs. I highly recommend the Chamaeleon III.”

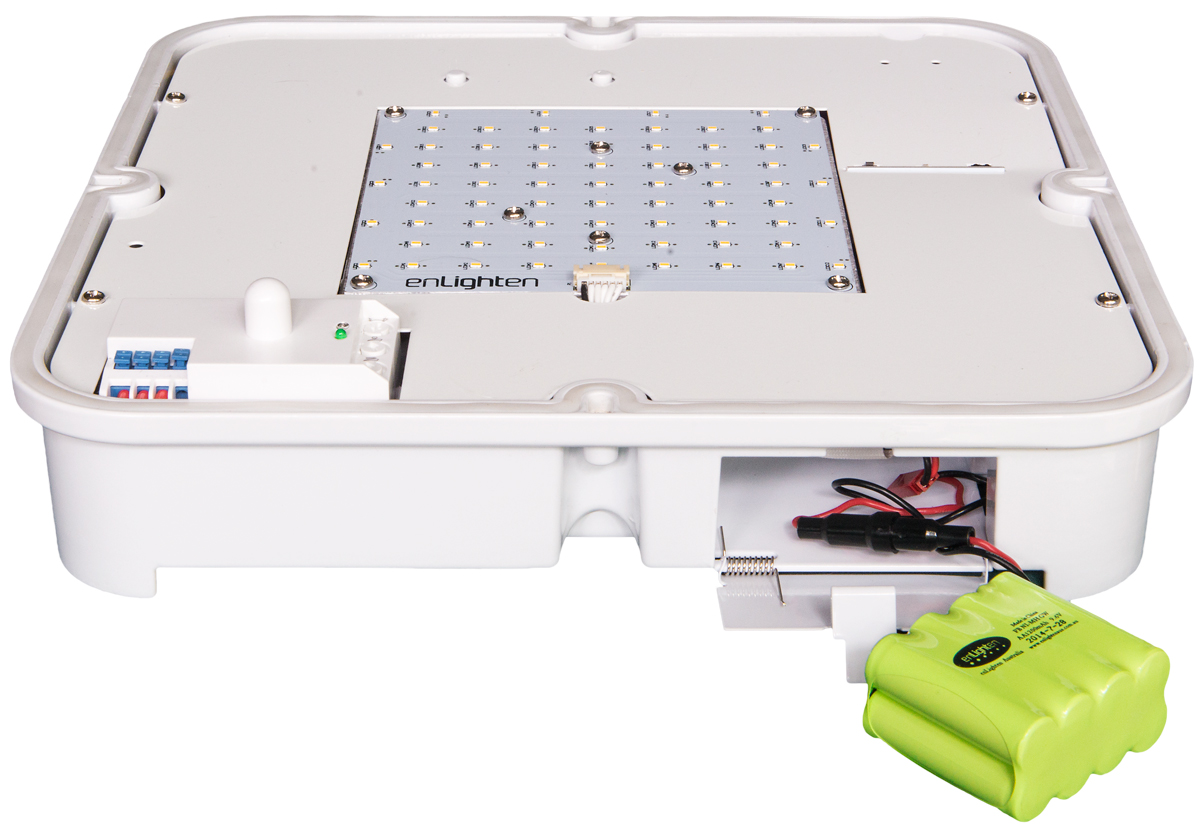

The Simple Battery Change


  • 2019
    National Awards for Excellence - Sustainability Award
  • 2016
    Energy Efficiency Council Industry Awards 2016 - Best Energy Efficiency Innovation
  • 2015
    Alumni Finalist, Australian Technology Competition
  • 2015
    NSW IES Luminaire Design Award of Excellence - Chamaeleon III
  • 2012
    Cleantech Open Awards - Winner 2012
  • 2012
    Taipei International Invention Show
  • 2011
    NSW Government Green Globe Awards
