Mirador Surface

Non-maintained LED emergency light

Product enquiry

Overview

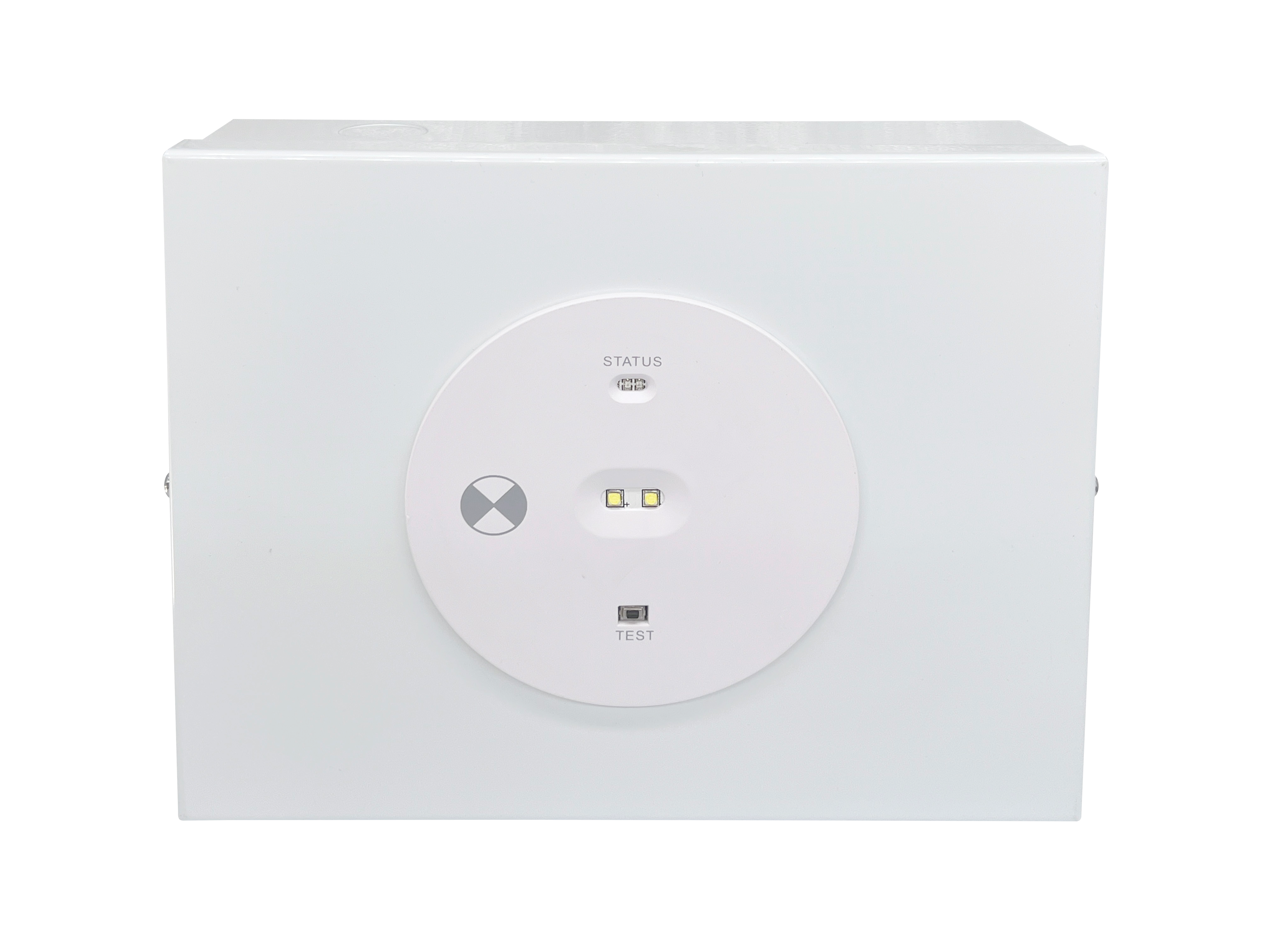

The Mirador Surface is an ultra-bright wide angle surface mounted emergency light that provides emergency illumination to allow the occupants of a building to safely exit in the event of a mains power failure.

It is a non-maintained emergency light that achieves a high emergency classification of D80 as per AS/NZS 2293. It uses an environmentally friendly LiFePO4 battery with a long lifespan and a fast-charge rate.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
safety compliance 1 Emergency (1) surface mount 1 liFeP04 1 5 Year Warranty 1 easy 1 D80 1 1P20 1 self test 1 Core Range (1)
Highlights

Key Features

  • Operating Mode - Non-Maintained
  • Slimline Surface Mount Box with 1.2m flex & plug
  • Emergency Classification: D80
  • Compliant to AS/NZS 2293
  • IP20 - Ingress protection
  • Commissioning Self-Test: Automatic commissioning test 16 hours after install
  • Duration Self-Test: Automatic duration testing every 3 months
  • Long life LiFePO4 battery
  • 5 year warranty (2 years for battery)

Applications

Corridors Hospitals Univesities & school campuses Large retail Office areas Government buildings University Campuses
Technical Info

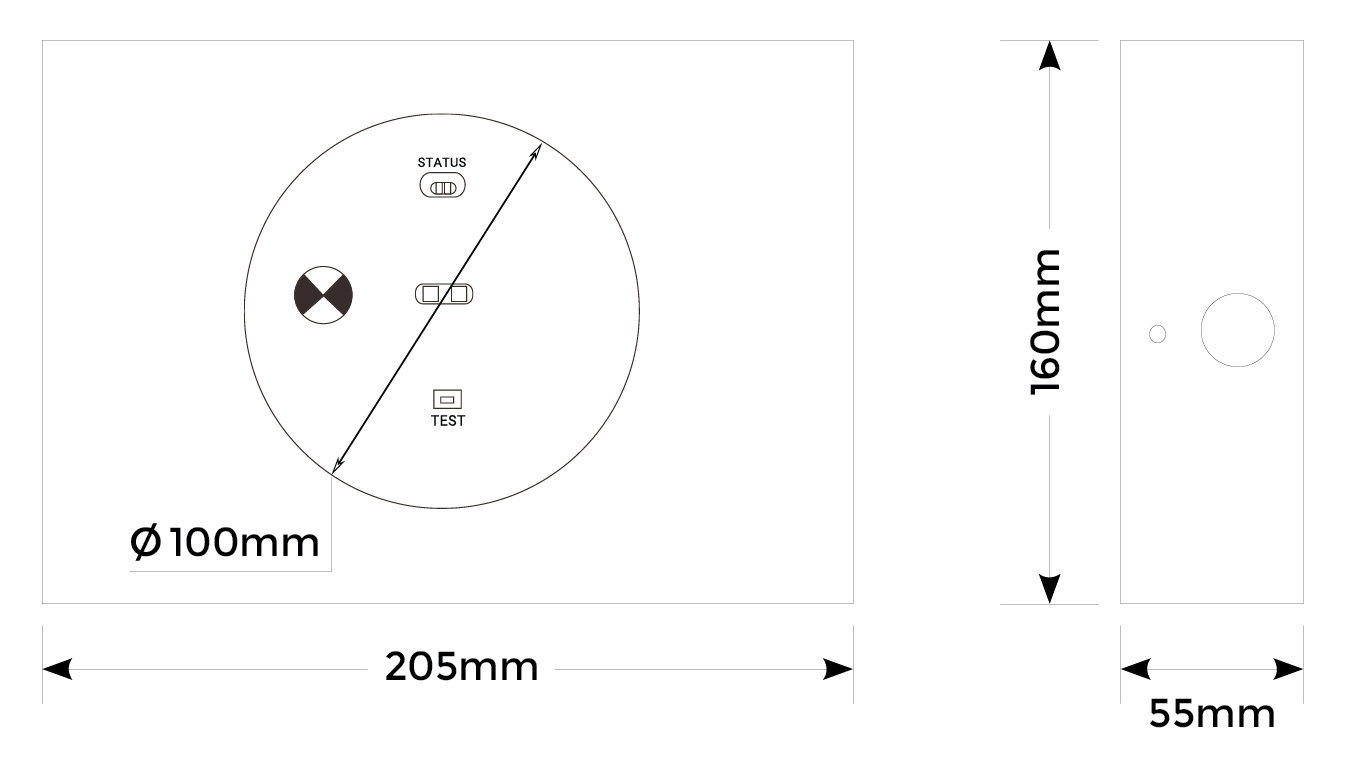

  MODEL   DIMENSIONS (mm) RATED POWER (W) WEIGHT (kg)
  MIRA-EL-D80-SM 205 x 160 x 55   4  1.05
 OPTICAL
  Light source  Osram LEDs
  Mode of operation   Non-Maintained
  Emergency Duration    >180 minutes
 ELECTRICAL
 Power consumption (W)   7W charging mode, 4W standard mode
 Operating voltage & frequency                     220-240VAC, 50Hz
 Charger  BMS controlled constant voltage charging
 Battery type   LiFePO4
 Battery rating
  3.2Ah, 3.2V, 10.24Wh
 Protection
Overcharge, low voltage disconnect, overcurrent, short circuit



ENVIRONMENTAL
 IP rating   IP20
 Weight    1.05kg
 Ambient temp. range    1°C to +40°C
 Material Composition (body) Powder coated metal box, flame retardant ABS disc

CONTROLS
 Testing facility                           Manual test switch
 Indicators    Battery charger green LED
COMPLIANCE
 AS/NZS 2293                 D80
