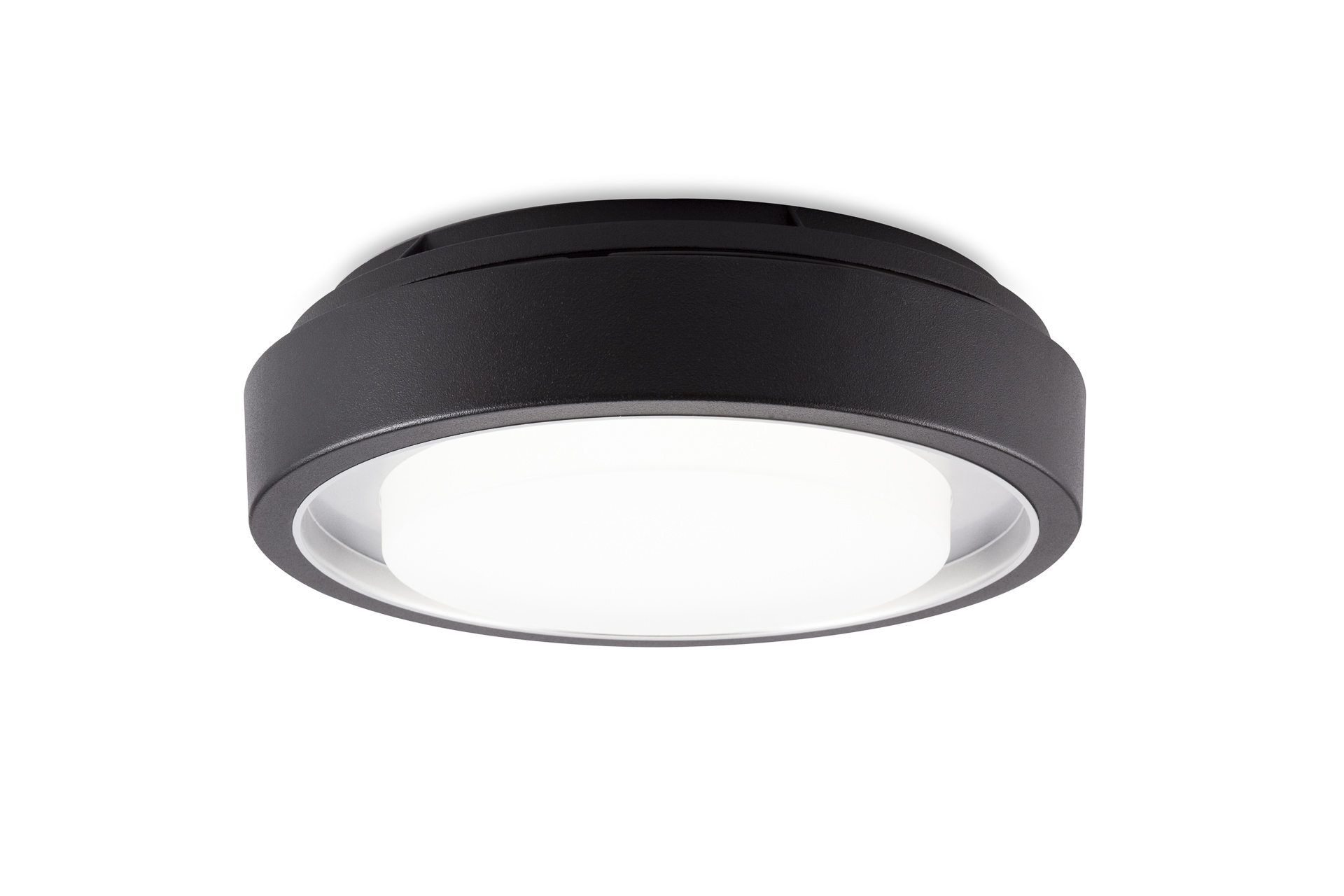

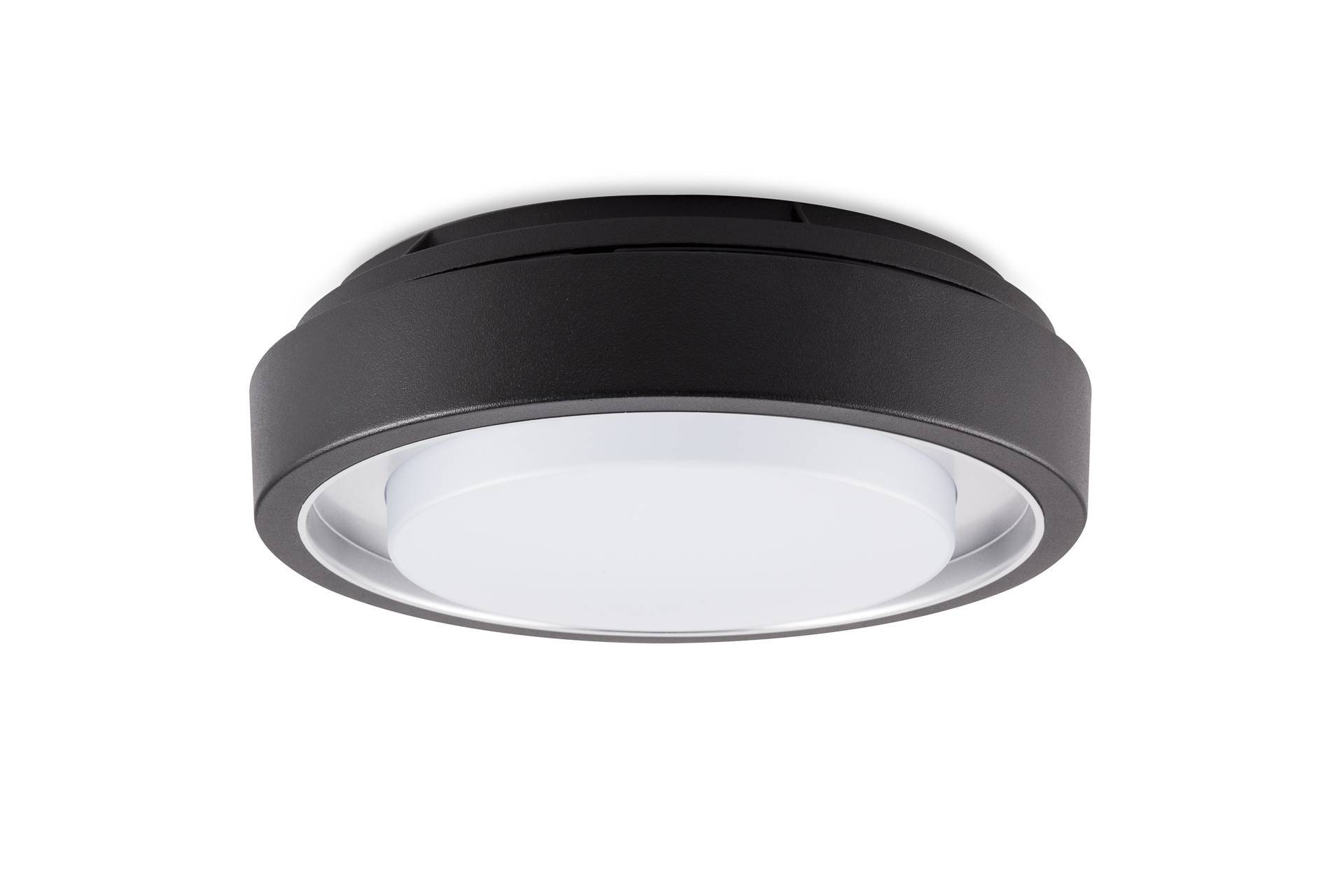

Microwave sensor controlled bulkhead light

Product enquiry

Overview

A high performance decorative multi mode oyster / bulkhead LED luminaire. Maximise your energy and maintenance savings through the inbuilt motion and daylight sensor.

Perfect for corridors, foyers, lobbies, toilets and fire stairs. Available in Charcoal Black

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
5 Year Warranty 1 Emergency (1) Daylight Sensor 1 Microwave Sensor 1 IP65 Rating 1 IK10 Rating 1 Core Range (1)
Highlights

Key Features

  • Integrated motion sensor triggers transition between full & standby light outputs
  • Microwave sensor detection range of up to 8m
  • Control options - Integrated PE cell for daylight sensing with a range of ambient light level settings OR adjustable standby light setting of 0% / 20%
  • Durability - water & dust proof rating of IP65
  • Offering a high level of impact resistance IK10

Applications

Corridors Fire stairs Foyers Lobbies Toilets
Technical Info
 PRODUCT RANGE
  D-CHAM-C-CB  Chamaeleon Deco Standard with in-build sensor- charcoal black
  D-CHAM-C-E-CB  Chamaeleon Deco Emergency with in-built sensor - charcoal

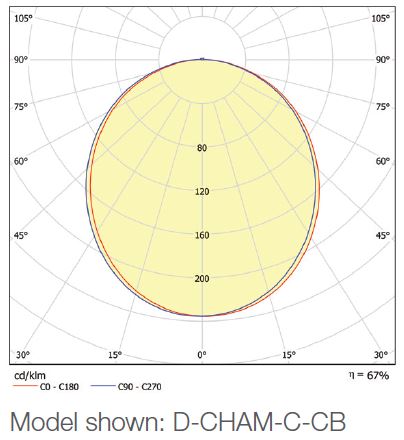

  OPTICAL
  Light source                       SMD LED
  Lumen output     1750 lumen
  CRI     Ra>80
  ELECTRICAL
  Power consumption     21W Standard, 23W Emergency
  Operating frequency     50/60 Hz
  Operating voltage range     220 -240 V AC
  EMERGENCY LIGHT
  Battery type     7.2V Ni-CD SC 1800mAh HT
  Discharge time    90 minutes
  Emergency classification     D40
  CCT    4000K
  ENVIRONMENTALLY
  IP rating     IP65
  Impact rating     IK10
  Weight    2.03kg standard, 2.34kg emergency
  CONTROLS
  Integrated motion & PE sensor                                                                                          -5.8GHz microwave motion sensor with adjustable range.
   -Integrated PE cell to activate the motion sensor at specified ambient light level. Sensor control settings of 2, 5, 10, 30, and 50 lux available to cover darkness, twilight and daylight levels (standard setting – photocell disabled)
  Operating frequency     50/60 Hz
  Operating voltage range     220 -240 V AC
  Spare Parts
  Replacement battery pack                                 7.2V Ni-CD SC1800mAh HT, part No SPC-Batt-DECO
Dimensions
  MOUNTING    WALL MOUNT
   CEILING MOUNT
  Suggested install height    1 - 1.8m    2.5 - 6m
  Detection range    Up to 6m    Up to 8m
  Detection angle    30° - 150°    360°
  Standard detection range settings       100% with options to
  decrease to 75, 50, 25 or 10%
Product Review

Asher Christophers, Austep Lighting

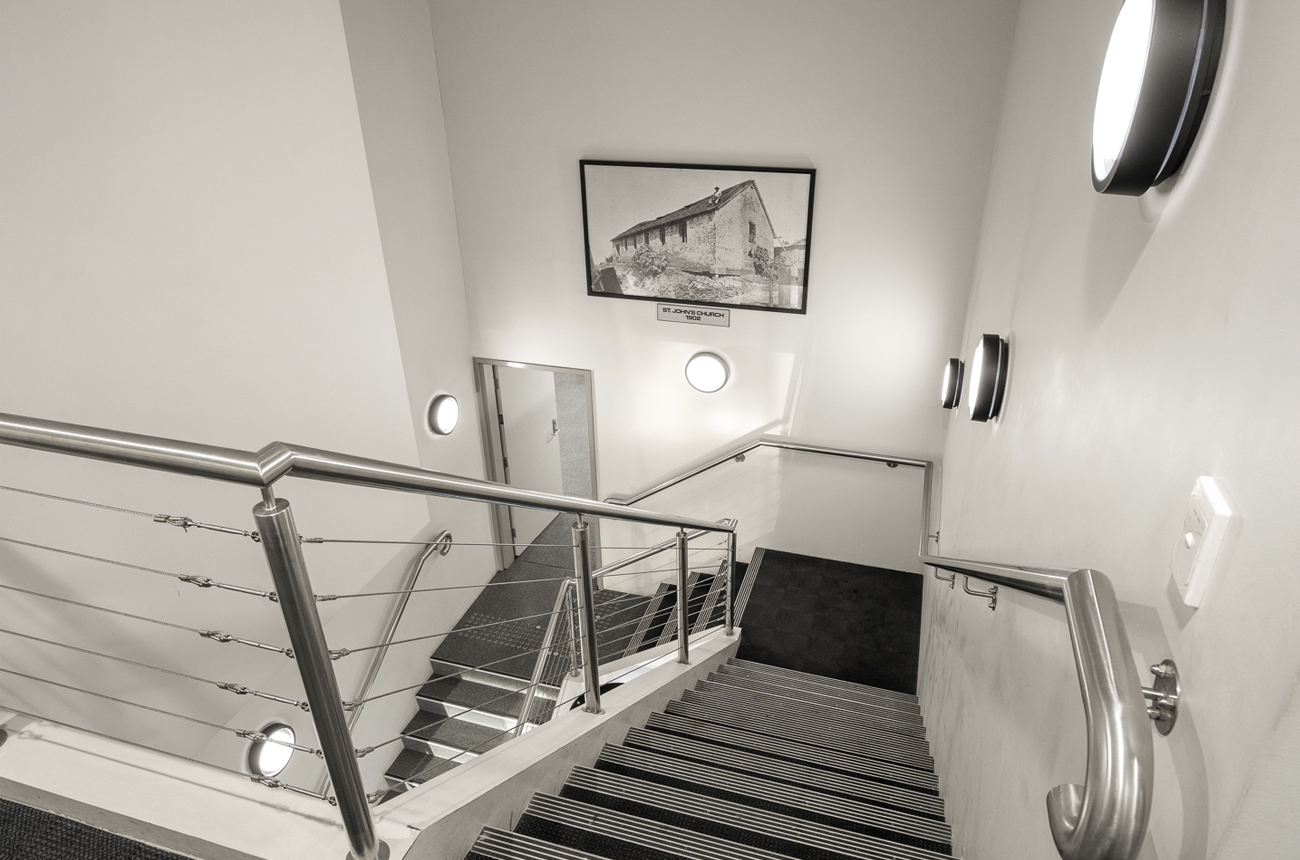

Toyota showroom

‘The Chamaeleon Deco is the go-to bunker light for Austep Lighting projects due to it's durability (IK10 and UV resistant), unique aesthetic, and integrated programmable sensor with 6m detection range.'

Rob Filipovic, Powerwell

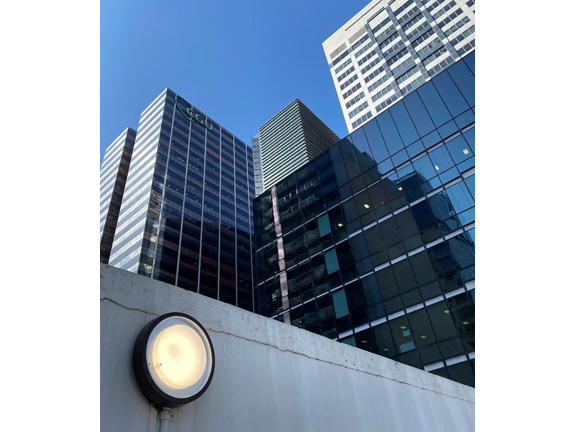

Wilson Car Park, Melbourne

‘The Chamaeleon Deco was the perfect choice to replace old failing bunkers located near the fire stairs in the car park. The Wilson car park operates 24/7 and as a result the Chamaeleon Deco offers significant opportunities for energy cost savings and longer maintenance cycles.

This robust wall mounted bunker is IP65 & IK10 rated, it has a motion and daylight sensor.  I am very pleased with the results we achieved.'
