Vico LED Linear Batten

Low power option, Eco Dim switch & LiFeP04 battery

Product enquiry

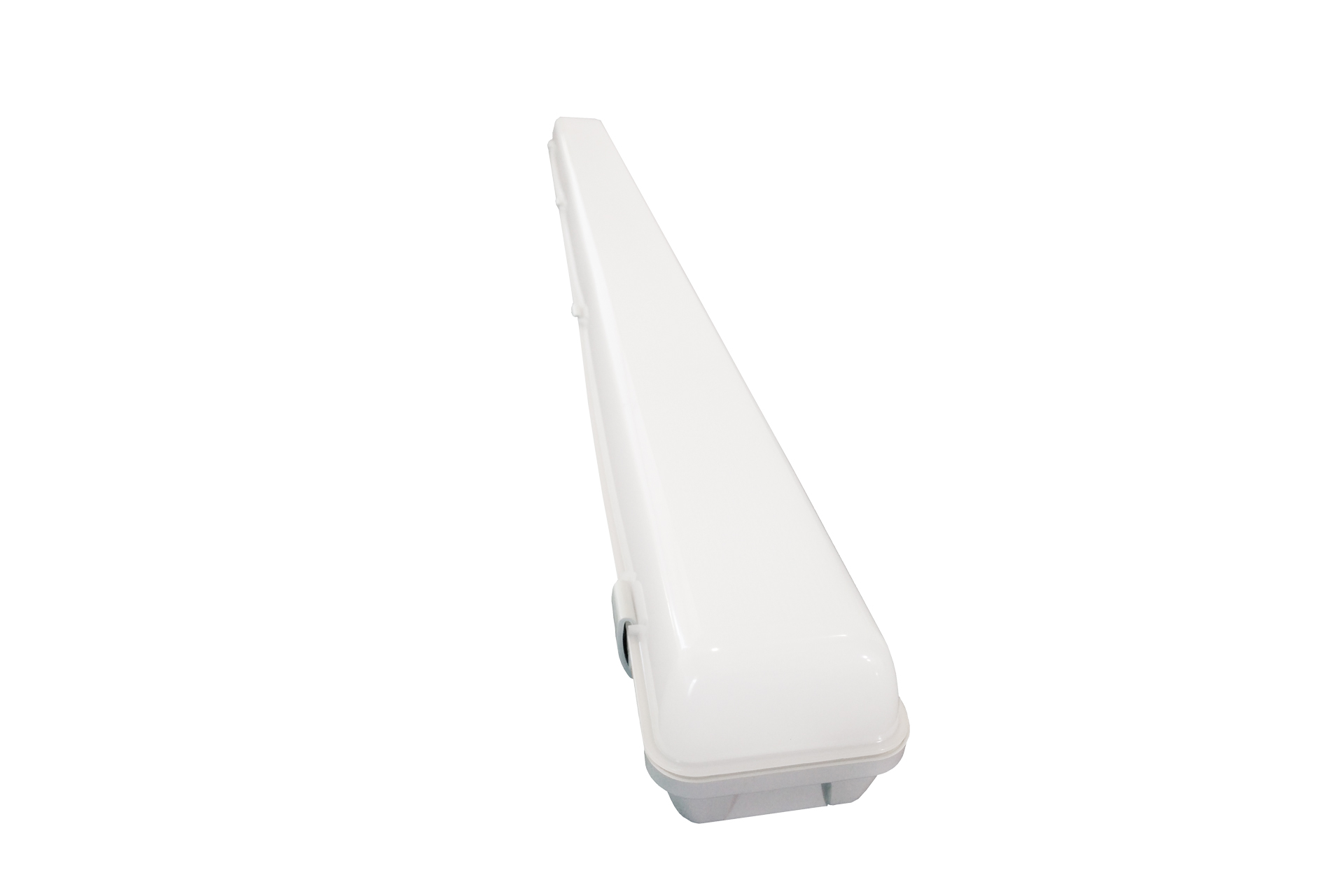

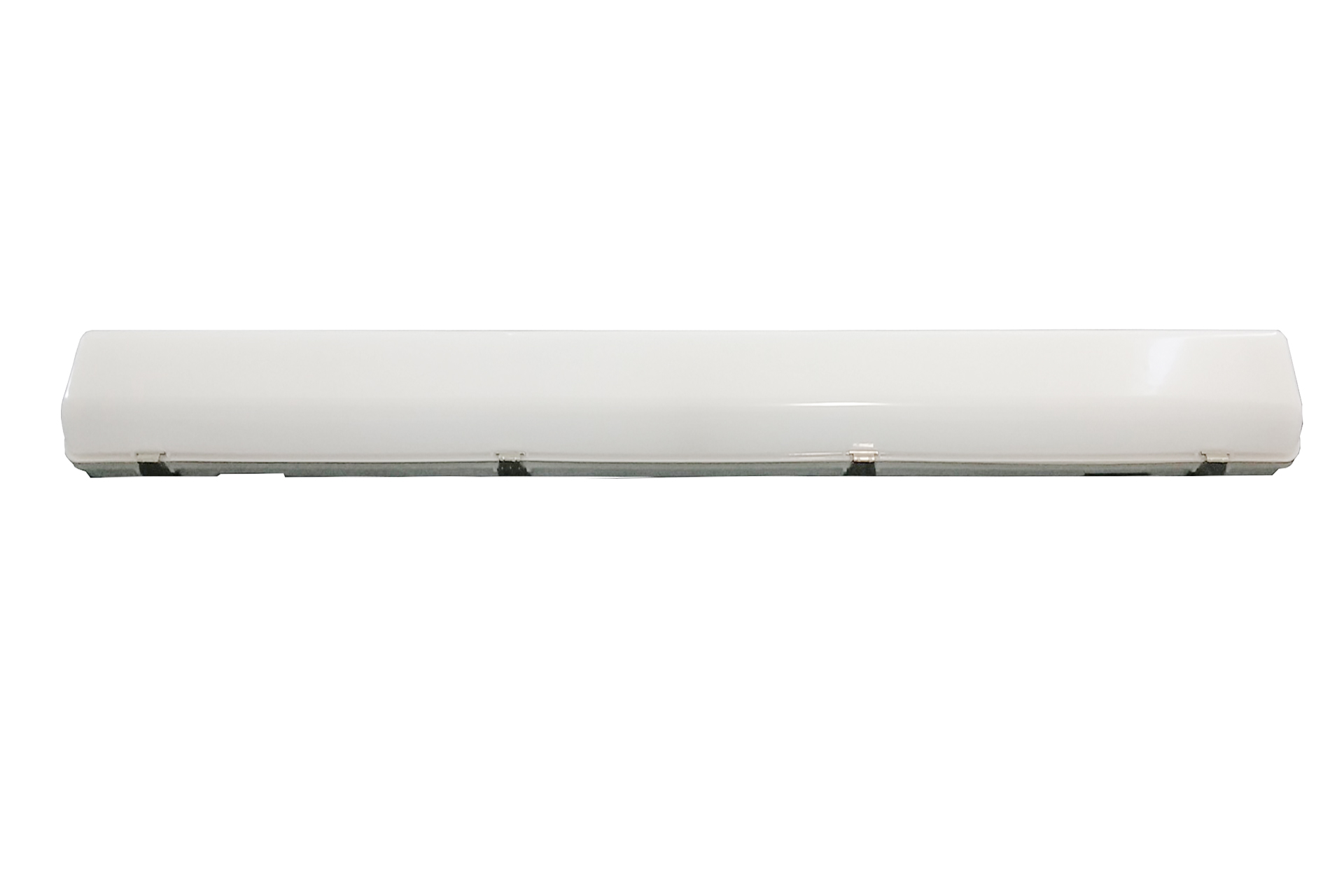

enLighten's Vico weatherproof IP65 LED batten offers a simple T8 or T5 fluorescent batten replacement.  Vico is an intelligent LED lighting solution for long lit low occupancy spaces, the Vico is available in 600mm (16W), 1200mm (low power 22W) and 1200mm (30W) models.

The next generation of the Vico batten has improved efficacy of up to 147Lm/W.  Save energy with the Eco Dim switch which allows the batten to operate in half power mode. A low power 22W 1200mm version is also available.

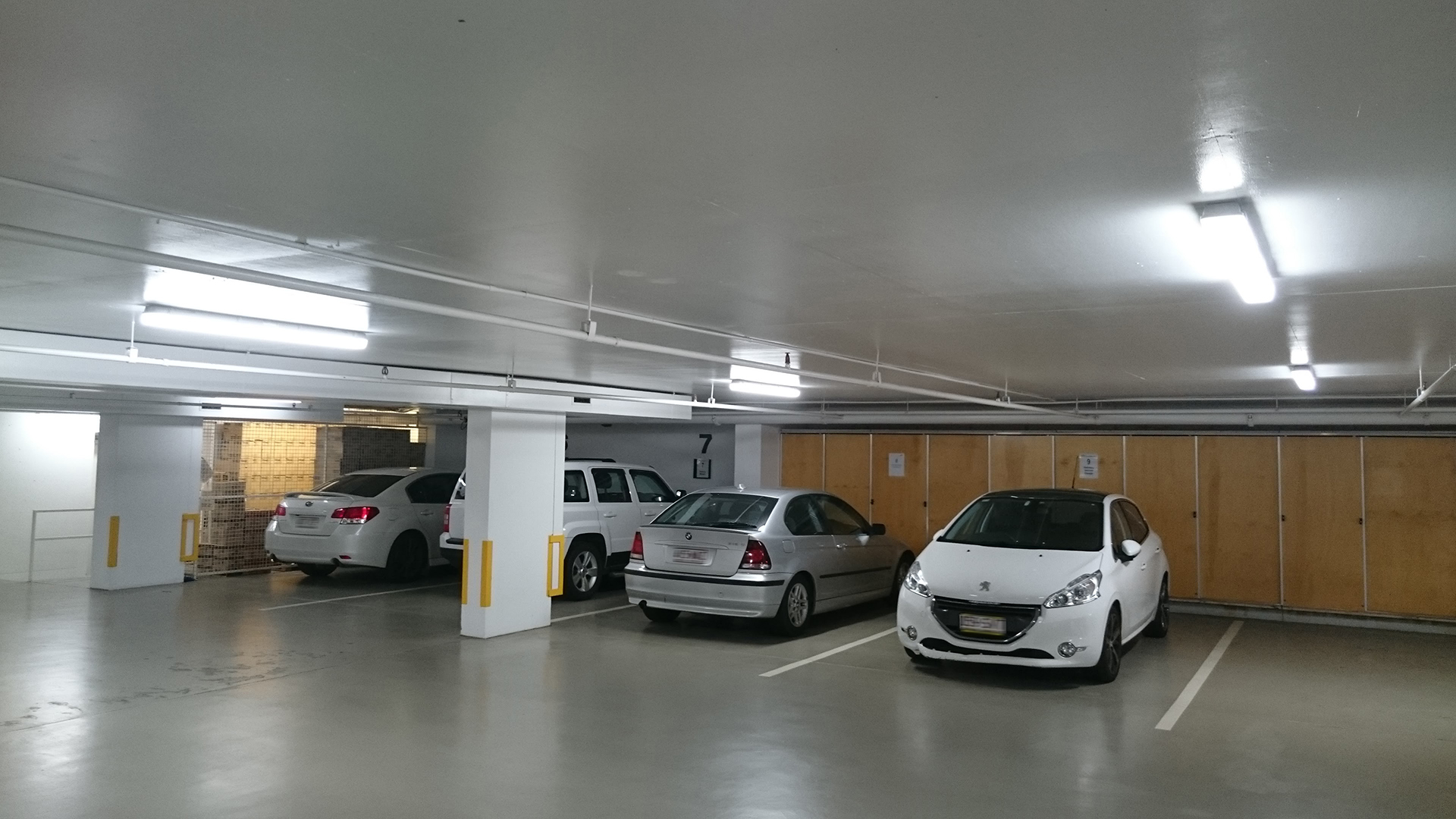

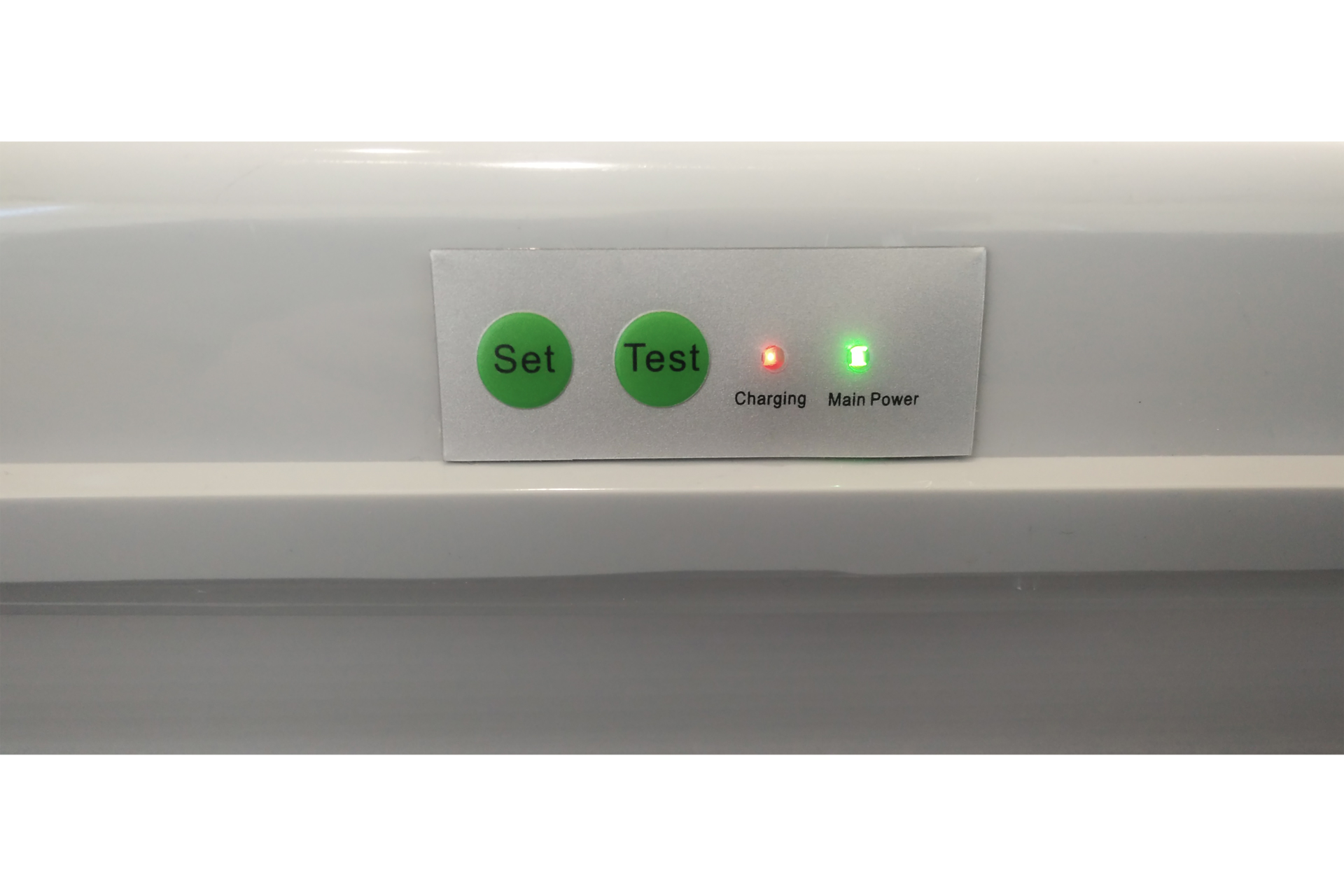

The Vico is available in non emergency and emergency, it is ideal for corridors, fire stairs, store rooms, plant rooms and undercover car parks.


Dali 2

The Vico batten can be fitted with a DALI-2 compliant driver that easily connects to an existing lighting control system. DALI is not available in emergency models.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

safety compliance 1 Microwave Sensor 1 Emergency (1) IP65 Rating 1 IK10 Rating 1 5 Year Warranty 1

Optional Features


Key Features

  • High colour rendering index (CRI) of over 80
  • 2 and 3 step dimming motion sensor with a range up to 8m
  • Flexibility to set motion sensor timer for full light output to either 5, 30 or 3 minutes and 10 minutes.
  • Environmentally friendly & stable LiFePO4 battery
  • High performance Samsung LEDs

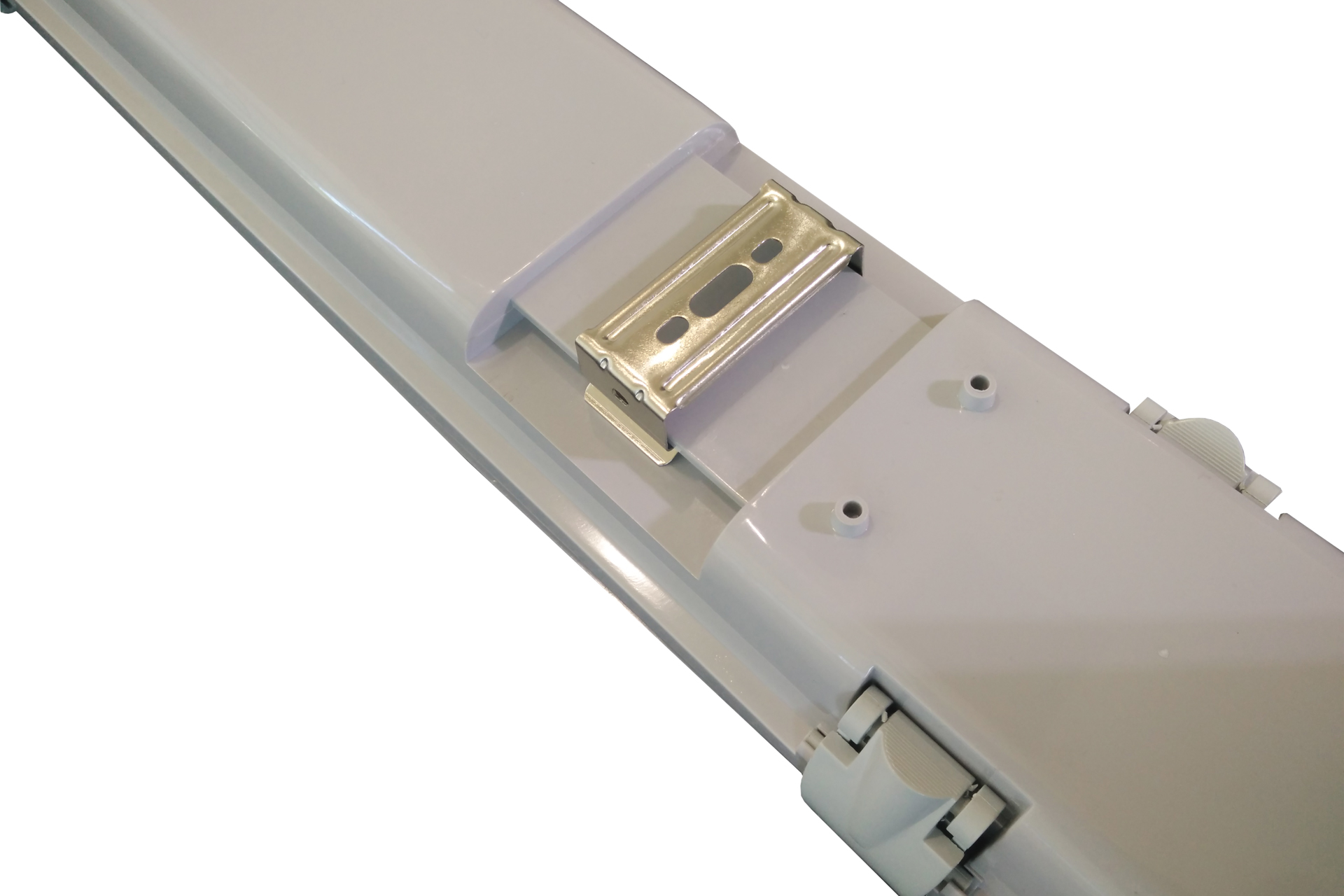

  • Screwless gear tray fixing & rotating tabs that lock in to gear tray support easy installation
  • Water & dust proof, supported by IP65 rating
  • IPART, VEET & REES approved for rebates in NSW, VIC & SA.
  • Compelling project paybacks of under 2 years for lighting retrofits
  • Luminaire efficacy of up to 147 lumens per watt
  • Suited for both indoor & outdoor use
  • VEU approved
  • IPART approved


Corridors Fire stairs Large retail Plant rooms Store rooms Undercover car parks
Technical Info

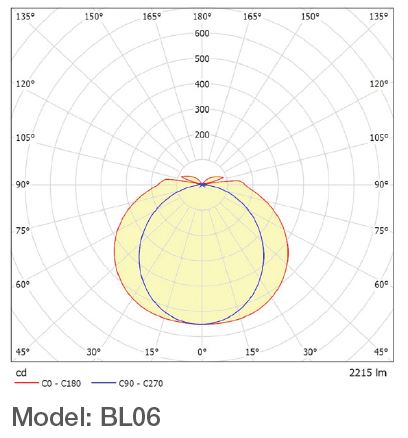

  Lumen output (lm)
BL06 600mm 16W 2215
BL06S  600mm 16W with MW sensor 2215
BL06ES 600mm 16W emergency with MW sensor  2215
1200mm 22W 3290
BL12SLP  1200mm 22W with MW sensor  3290
BL12ESLP 1200mm 22W emergency with MW sensor  3290
BL12  1200mm 30W 4220
BL12S  1200mm 30W with MW sensor 4220
BL12E  1200mm 30W emergency with MW sensor  4220
BL12ES  1200mm 30W emergency with MW sensor  4220

Please note that due to upgrades in our batten lights we have changed our product codes. Download the document to discover the new product code translation.

Light source   Samsung LED
Lumen output    2215 - 4220 lumen
CRI   Ra>80
CCT 4000K and 5000K
Power consumption   16W-30W full light output
Operating frequency   50/60 Hz
Operating voltage range   220 -240 V AC
Battery type  6.4V 3000 mAh LiFePO4
Discharge time 90 minutes
IP rating    IP65
Impact rating    IK10
 Weight   600mm - 1.8kg, 1200mm - 2.9kg
Ambient temperature range     -25°C to +40°C(non emergency models)
  0°C to +40°C(emergency models)
Microwave sensor range    360 deg; max 8m - adjustable
Microwave sensor operating interval
  5 sec to 10 min
  (default setting 30 sec)

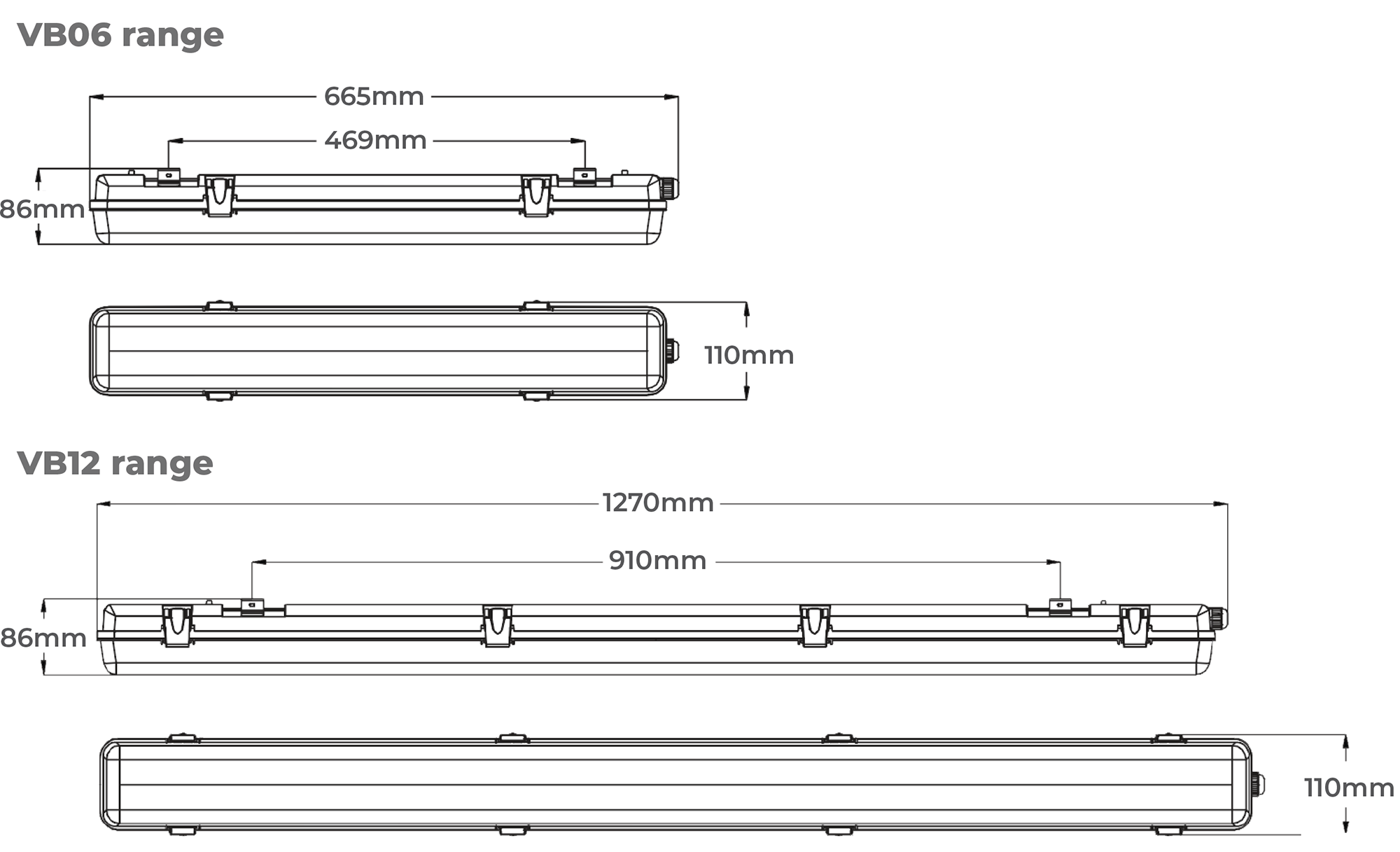

BL06 range

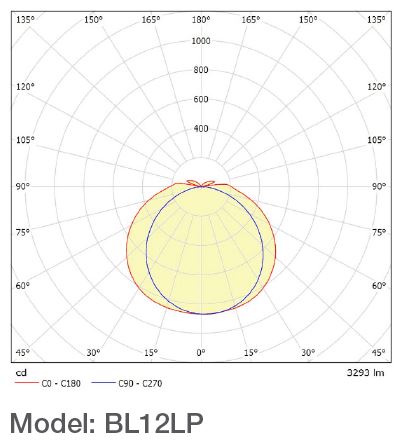

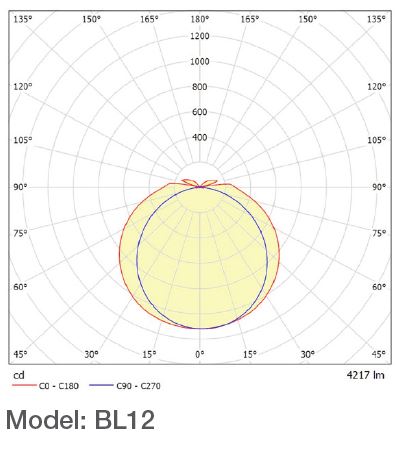

BL12 range


Product Review

Brad Wyber, Trackie Industries

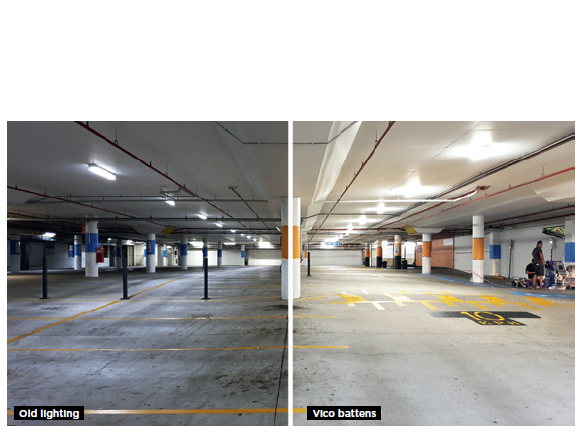

The Hills Super Centre, Castle Hill
‘We often forget the hidden costs of lighting, such as the cost per hour of life expectancy. Operating life can dramatically impact your maintenance costs and overall bottom line.

I like the Vico batten as it has an impressive operating life of 160,000 hours @L70, it uses an environmentally friendly LiFePO4 battery and quality Samsung LEDs.

I was able to achieve $22,000 a year savings in energy and reduced maintenance costs. I am delighted at the results’.

Darren Hynd, Jones Lang LaSalle

140 Williams St, Melbourne
"It is important that we always look at ways to improve the safety while keeping in mind improving sustainable energy efficient practices when making improvements to our properties. enLighten's Vico batten has not only improved light output but it has dramatically reduced energy spend within the fire stairs. These real savings add up."

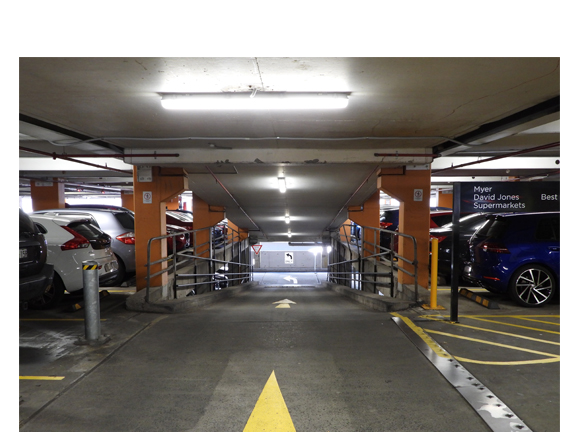

Andrew Caswell, Nutbrook Engineering Group

Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens

‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.

I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’

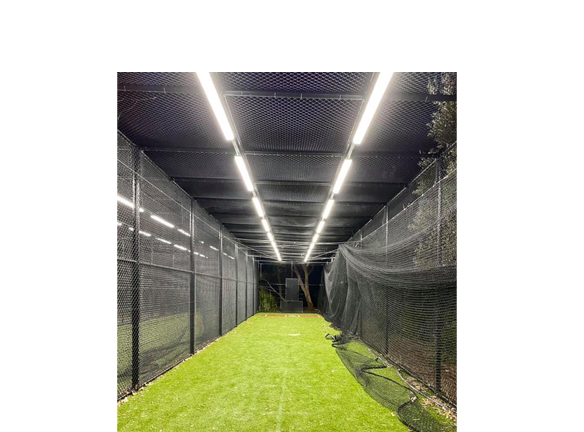

Steve Vescio, Electrospark Electrical Services

Pittwater Baseball batting cage lighting revamp
‘Every now and then you complete a job where you stand back and feel super proud of what you have achieved - Completing the batting cage lighting for the Pittwater Baseball Club is one of those moments. Doing something for such an awesome club where both my boys and I play is very rewarding. BATTER UP!! PLAY BALL!

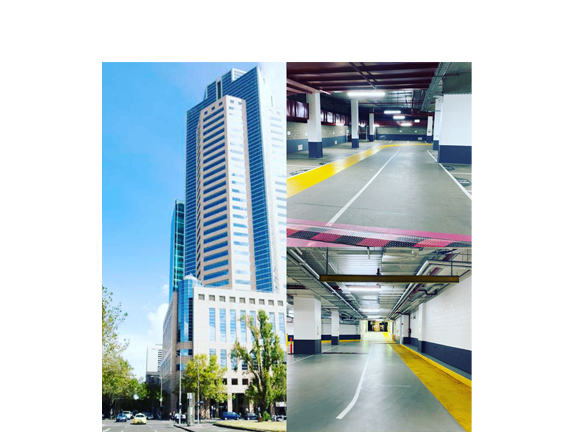

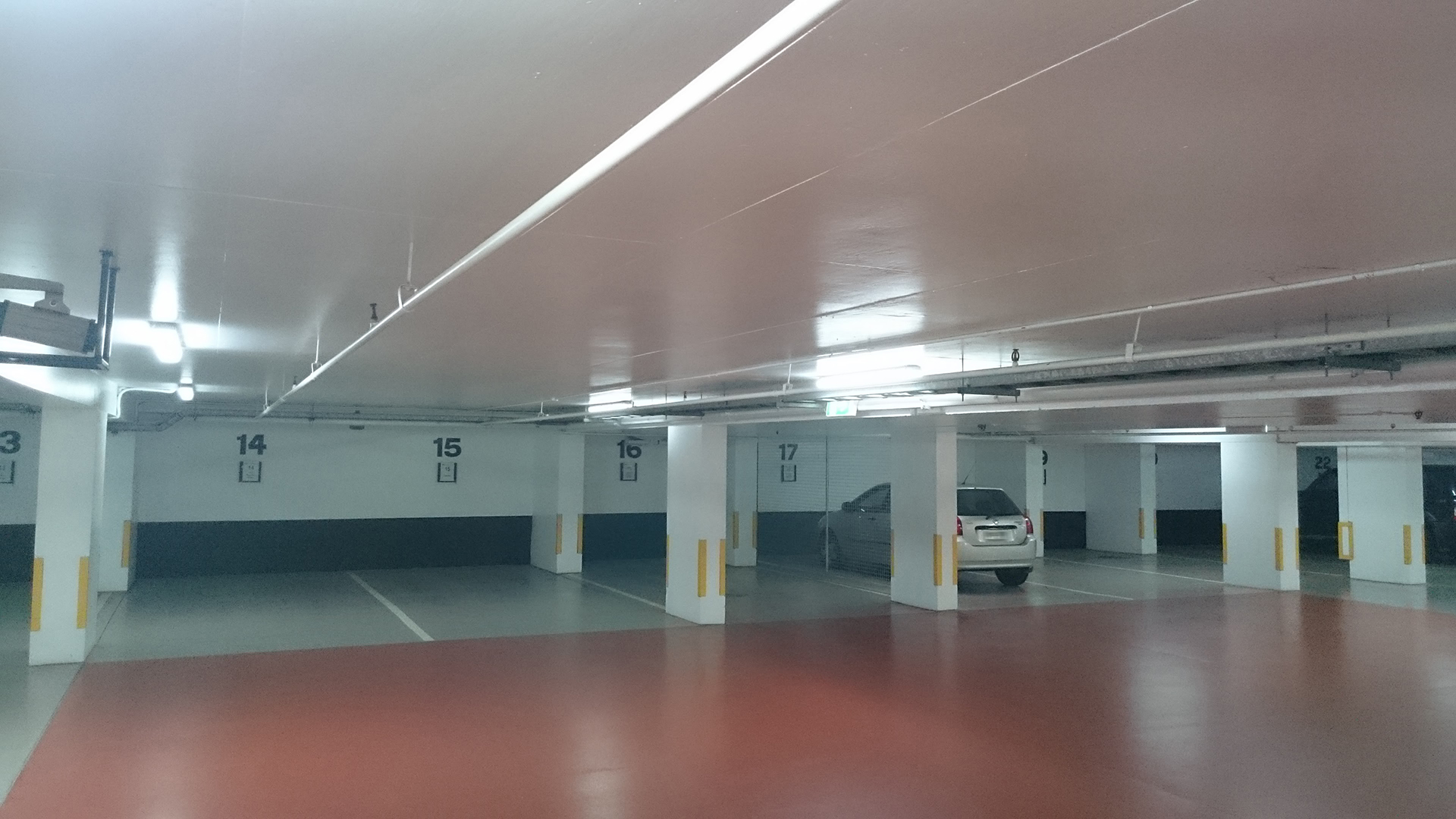

2 Lonsdale St, Melbourne
Elecflight recently completed the carpark lighting up grade at 2 Lonsdale Street@casseldenmelbourne - A Grade office tower with 39 levels within the prestigious and historically rich Parliamentary precinct of the CBD.

They installed Vico, Chamaeleon III and a car park entry system. The results:
* Floor space of the premises (m2): 550
* Energy & Maintenance savings $25,034 per annum
* Energy Reduction of 53.89%
* CO2 Reduction 112 Tonnes Per annum
* BCA compliant car park entry to AS1680.


Download our Car park entrance lighting guide
