Yindi

Robust, low glare architectural design

Modern design

Product enquiry

Overview

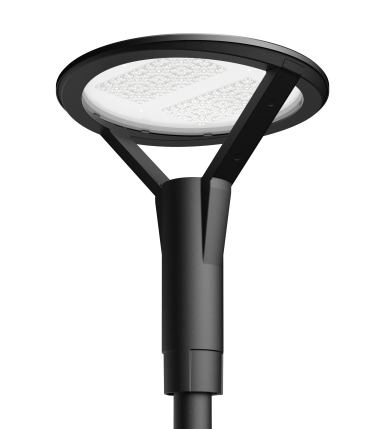

The Yindi is a versatile, elegant architectural luminaire perfect for the urban environment. This robust light features a wide range of power and lens options, making it suitable for most locations.

Make your public areas safer and more inviting. A brightly lit walkway, can reduce trips and resulting injuries. Architectural lighting can transform an urban nightscape into a vibrant community area.

With optimised lens technology the Yindi provides high levels of visibility whilst reducing glare.

Perfect for pathways and open areas.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
easy 1 IK10 Rating 1 IP66 1 safety compliance 1 5 Year Warranty 1 Core Range (1)
Highlights

Key Features

  • Wide range of power and lens options
  • Smooth housing with no screws exposed
  • Professional LED optical technology
  • Tempered glass protecting optic lens
  • No upward light spill
  • IP66 - Ingress protection
  • IK08 - Impact rating
  • High efficacy of >120 lm/W
  • Expected life >130,000hrs @ L70
  • Easy to install
  • Easy to maintain with driver in the pole
  • Mounting accessories available
  • 5 year warranty
  • IPART approved

Applications

Bike paths Council parks Industrial estate Outdoor car parks Univesities & school campuses
Technical Info
  MODEL                                     RATED POWER(W)   LUMEN
 OUTPUT(lm)
 DIMENSIONS

 WEIGHT(kg)

  YPT20-47Lx-yy   20W   2500  ø450x526mm   7.5
  YPT30-47Lx-yy    30W   3750   ø450x526mm   7.7
  YPT40-47Lx-yy    40W   5000   ø450x526mm   7.7
  YPT60-47Lx-yy     60W   7600  ø450x526mm   8.1
  YPT75-47Lx-yy    75W   9500   ø450x526mm   8.2
  YPT100-47Lx-yy    100W   12,200  ø450x526mm   8.2

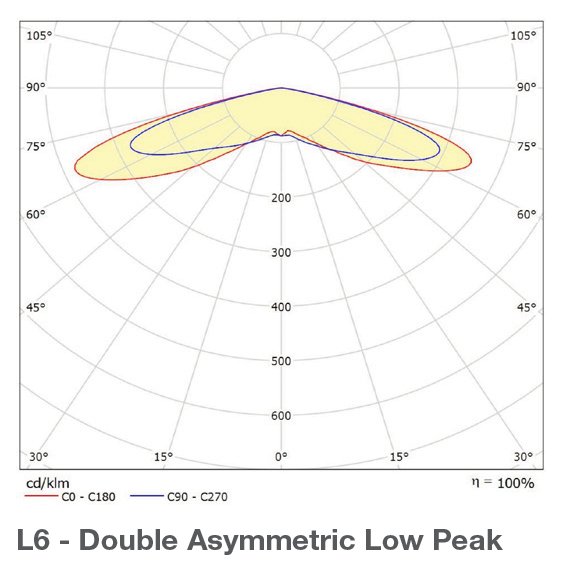

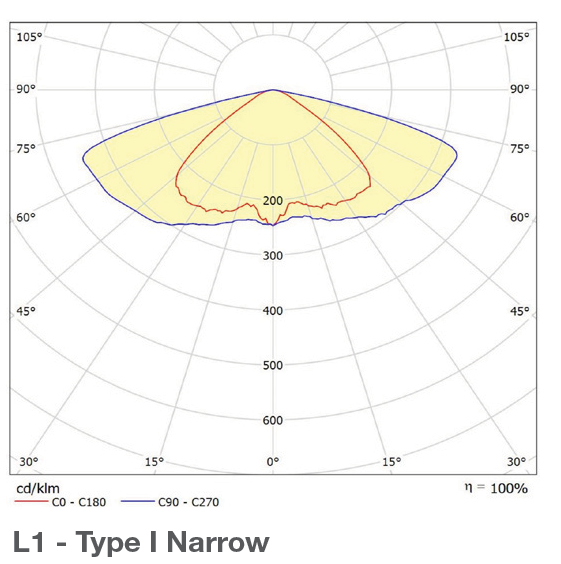

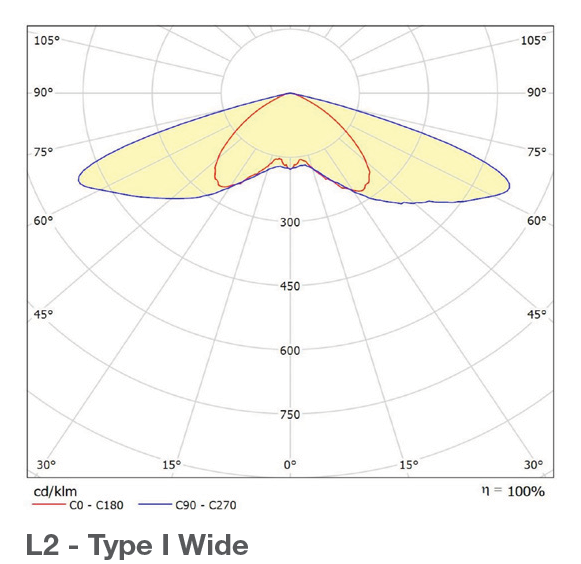

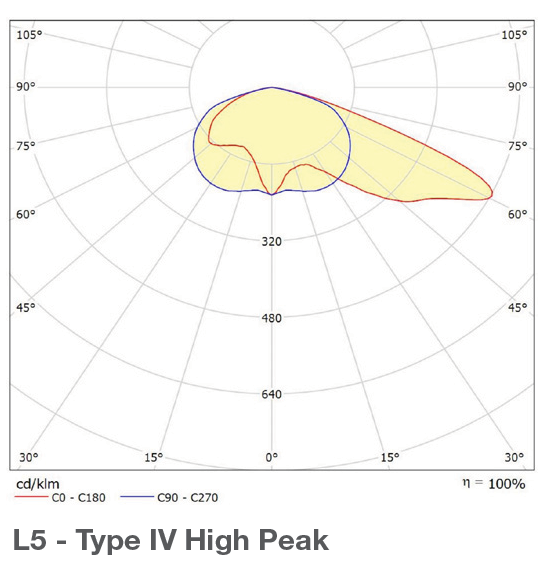

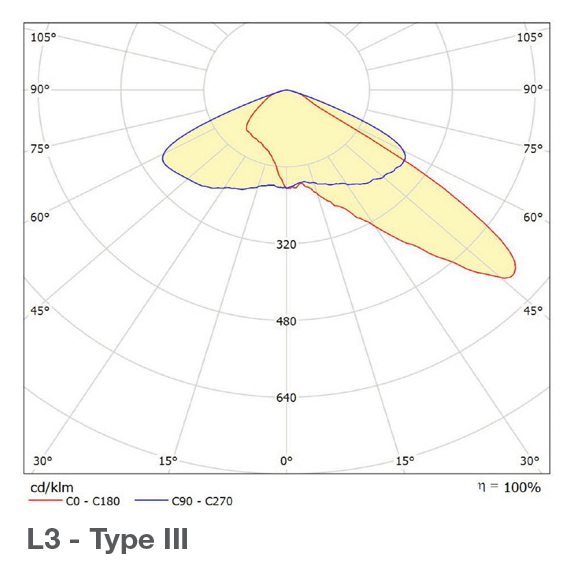

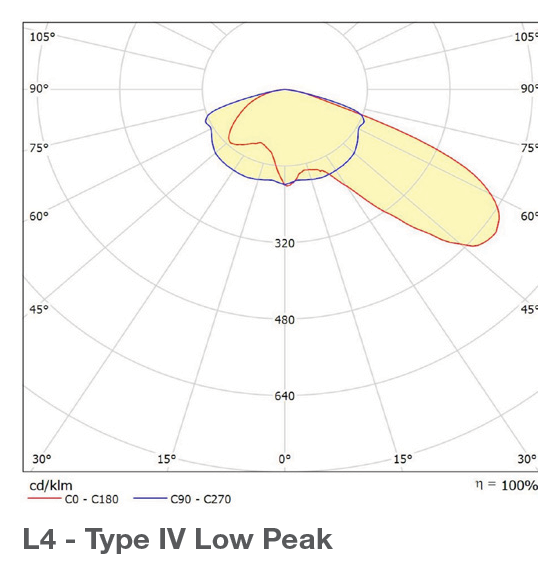

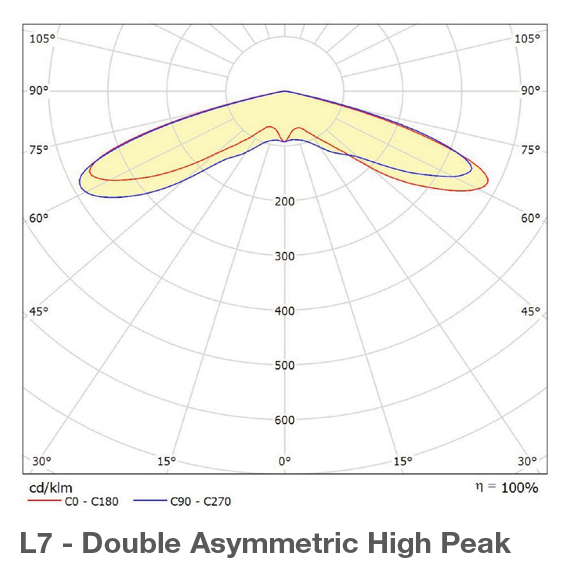

x is the lens type (L1 to L7), yy is the spigot diameter "-60" suitable for 60mm OD round poles or "-76" for 76mm OD round poles
  OPTICAL
Light source   Seoul Semiconductor
Lumen output    2400 - 12,540 lumen
CRI   Ra>70
CCT   4000K standard, 5000K available on request
Luminaire efficacy   >120 lm/W
  ELECTRICAL
Power consumption (W)   20, 30, 40, 60, 75, 100
Operating frequency   50/60 Hz
Operating voltage range   100 - 277 V AC
Power factor   >0.9/240 AC at full load
Driver efficiency   >90%
 ENVIRONMENTAL
IP rating    IP66
Impact rating    IK08
Weight   7.5 - 8.2kg
Ambient temperature range     -30°C to +50°C
Material Composition (body)
  Black powder coated diecast aluminium
Material Composition (lens)   Tempered glass and polycarbonate optical lens
Expected Lifespan     >130,000 hours @L70

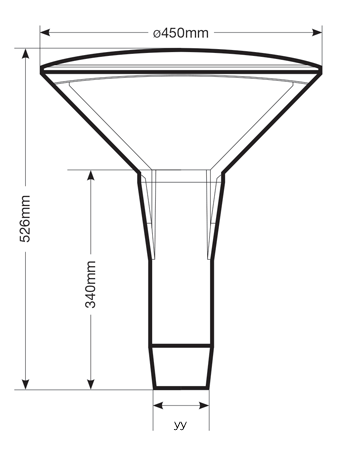

Dimensions

yy is the spigot diameter"-60"suitable for 60mm OD round poles or "-76" for 76mm OD round poles



Product Review

Alessandro Mattiolo, Managing Director, A1 Sparky

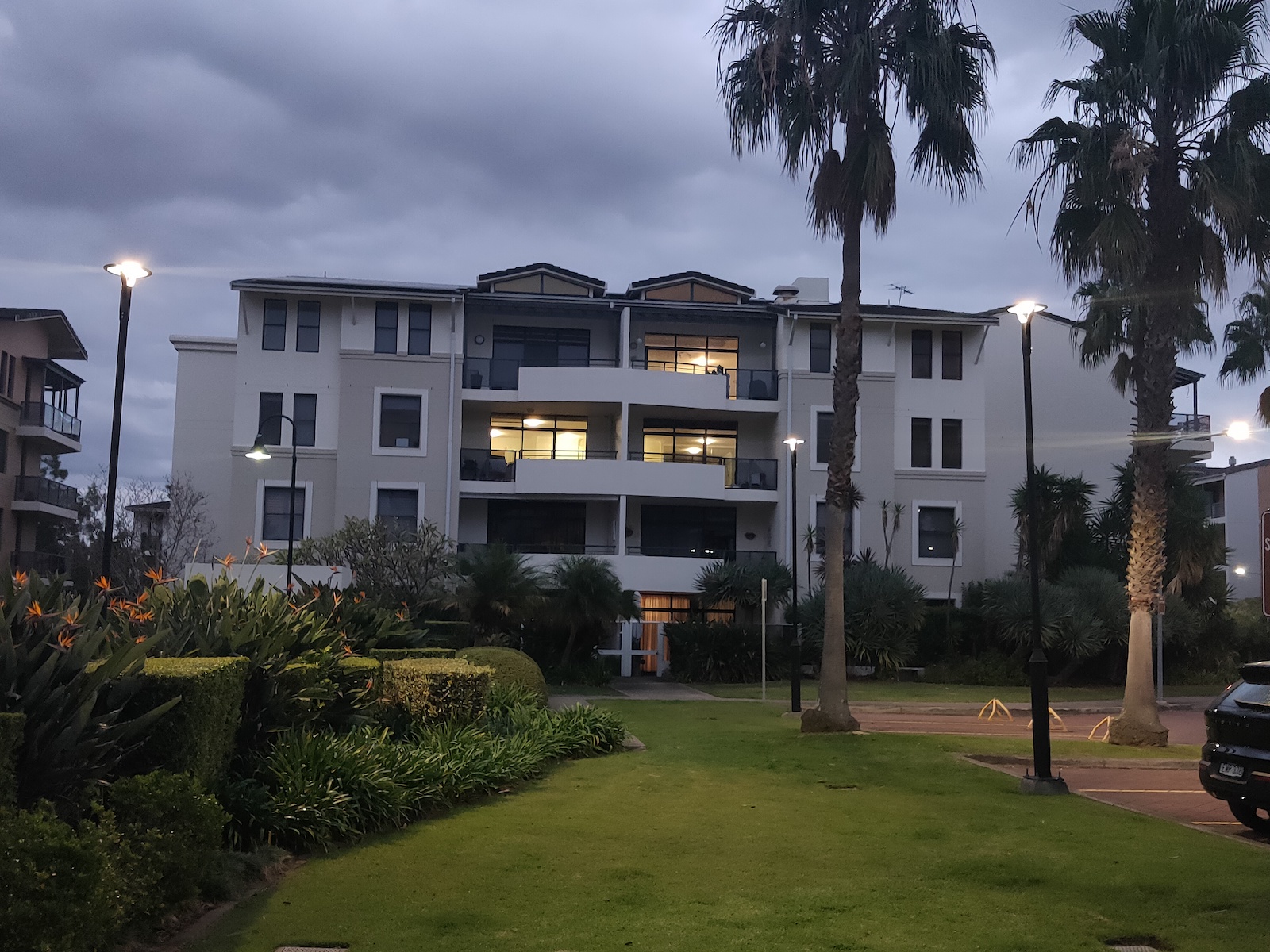

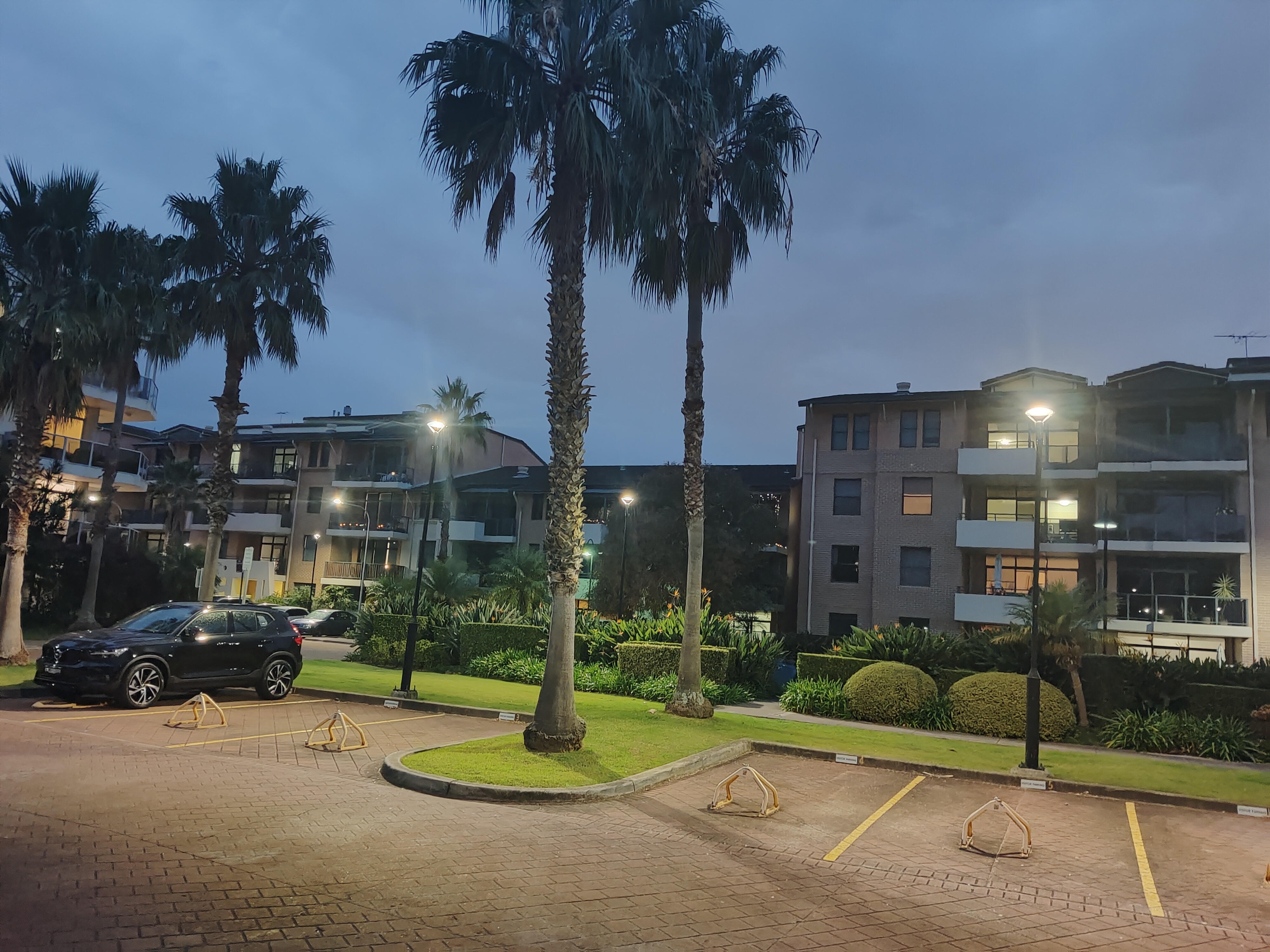

Riviera Apartments, Chiswick
‘We recently installed the new Yindi area light. It’s design is aesthetically pleasing, easy to install, securing it into position was simple and it has ample room for termination.

The variety of lens available makes it perfect for any complex.

I highly recommend this light’.
