SuperNova

High powered multiple optic floodlight

Product enquiry

Overview

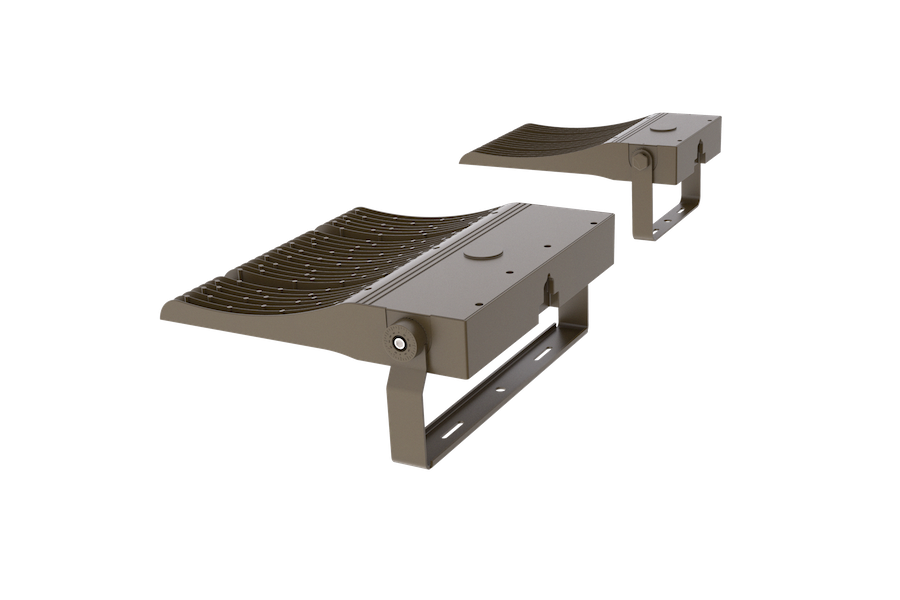

The SuperNova™ LED floodlight is a high powered solution perfect for any industrial estate, mid-sized sporting field or court. Improve area safety and visual comfort by delivering quality area light using tailored asymmetric optics.

Minimise light pollution and spill into nearby premises using full cut off optics, glare control and optional backward spill guard. Achieve a perfect balance between superior optical performance and energy consumption.



Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

Login
directional light throw (1) easy 1 safety compliance 1 IP66 1 IK10 Rating 1 5 Year Warranty 1

Optional Features

Dali Casambi
Highlights

Key Features

  • Multiple optic floodlight
  • Directional light throw to minimises light pollution
  • Improved visual comfort - Tailored asymmetrical lens
  • High luminaire efficacy of greater than 140 Lm/W
  • Long lasting Seoul Semiconductor LEDs with over 130,000 hours of operating life @ L70

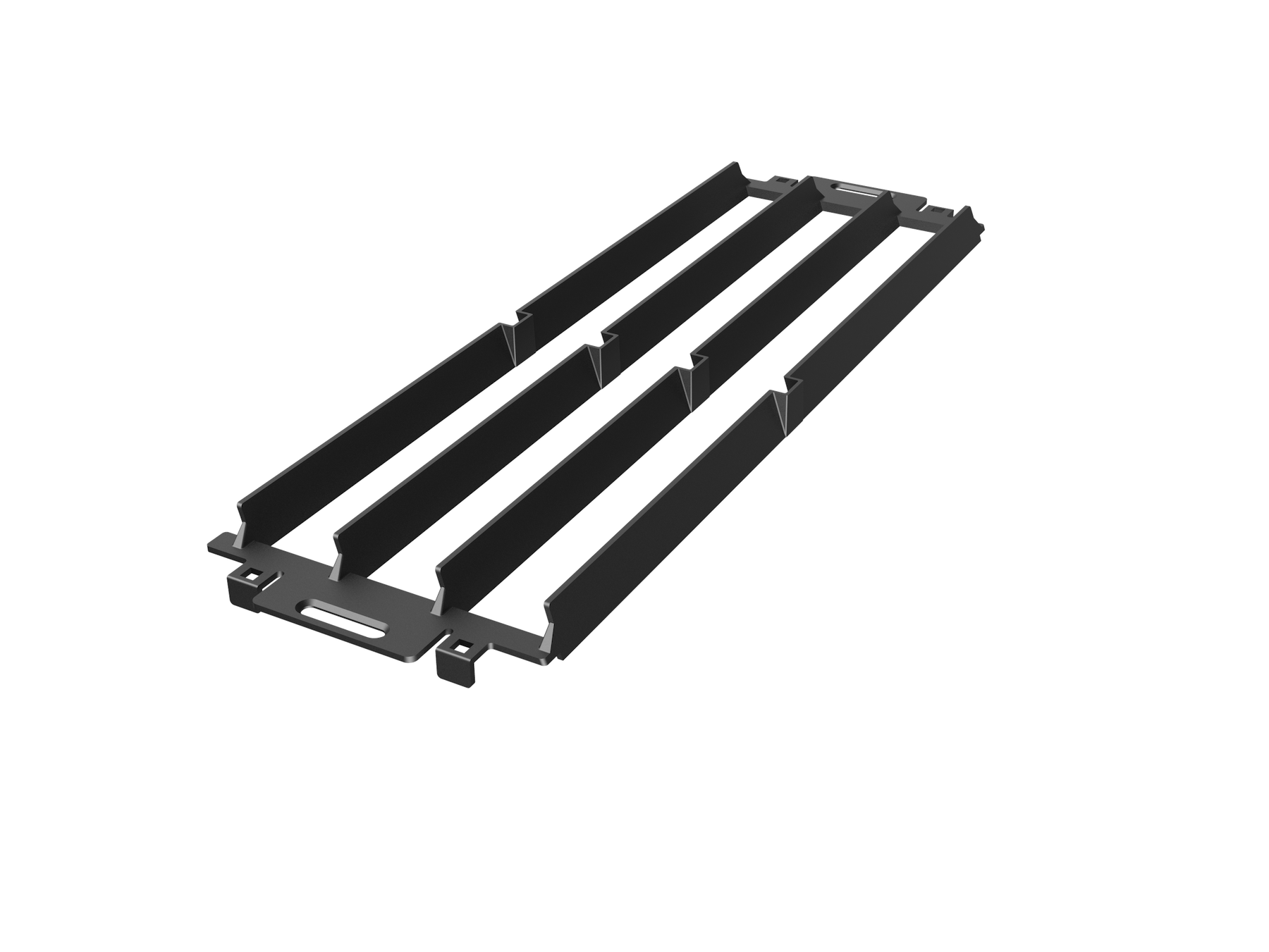

  • Optional back spill guard to control light trespass
  • Highest impact resistance IK10
  • IP66 Ingress protection
  • Easy install with a versatile bracket that supports flexible angle adjustment
  • Robust & water resistant UV stabilised case
  • Lightning surge protection - 10 kV
  • Pole mount adaptors available
  • 5 year warranty
  • VEU approved
  • IPART approved




Applications

Building perimeters Industrial estate Loading docs Outdoor car parks Sports court Sports field
Technical Info

LUMEN OUTPUT AND RATED POWER (W)

  Model #     Lumen
  output (lm)
   Rated
   power (W)
  SFL-180-40K-Lx       25,200    180
  SFL-240-40K-Lx    33,600    240
  SFL-300-40K-Lx     42,000    300
  SFL-450-40K-Lx    63,000    450
  SFL-600-40K-Lx    84,000    600

OPTICAL

 Lumen output    25,200 - 84,000 lumens
  CRI    Ra>70 standard; Ra>80 &Ra>90 optional
   CCT     4000K standard; 3000K & 5000K optional
 Luminaire efficacy   >140 lm/W
  Beam angle    9 lens optics

ELECTRICAL

   Power Consumption    180W, 240W, 300W, 450W, 600W
  Operating frequency    50 Hz
  Operating voltage range     220 - 240V AC
   Power factor >0.9/240V AC

ENVIRONMENTAL

  IP rating   IP66
  Impact rating    IK10
  Net weight   9.3 kg to 21.4 kg
  Ambient temperature range     -30° to +50°C
  Inclusions   U-Shaped bracket
  Warranty   5 years

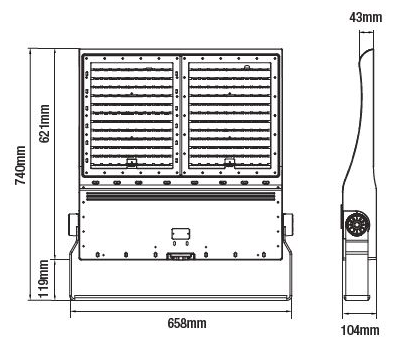

Dimensions

SIZE AND PRODUCT WEIGHT

  Model #    Size
  L x W x H (mm)
  Weight (kg)
  SFL-180-40K-Lx     685 x 362 x 94   9.3
  SFL-240-40K-Lx   685 x 362 x 94   9.3
  SFL-300-40K-Lx    685 x 362 x 94   9.9
  SFL-450-40K-Lx   740 x 658 x 104   19.9
  SFL-600-40K-Lx   740 x 658 x 104   21.4
Product Review

CSM Trade Services

NSW Port, Botany Bay

Quality uniform light was achieved over a 10,000 sqm truck yard at the NSW Port in Botany Bay. Night time visibility is paramount for safety in a busy and often crowded truck yard. The SuperNova flood lights were mounted on a 16m pole and replaced old high pressure sodium lights.

View the video to see what CSM Trade Services thought about the SuperNova.

Distribution Centre Lighting guide
