enLink Vico
Low power option, Eco Dim switch & LiFeP04 battery
Overview
The enLink Vico LED batten uses a series of quality Samsung LED modules that provide industry leading efficacy of up to 147 lumens per watt.
The enLink Vico is an important addition to enLighten’s range of intelligent LED lighting solutions for long lit low occupancy spaces. enLink is a system that connects smart emergency lights, allowing building owners and managers to easily track and manage compliance and testing obligations. With its patented safety features and Wirepas technology, enLink delivers many benefits including a reduction in the costs and administration associated with emergency lighting testing and maintenance.
Product Downloads
Click the below links to download guides, datasheets and more.
- Vico BL06, BL12, BL15 installation guide (1392.4KB)
Secure Zone Documents
Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.
Login
Optional Features
Key Features
- enLink - Compatible with the enLink Monitored Emergency Lighting System
- Emergency & non-emergency options available
- Microwave sensor option to maximise energy savings
- Ease of installation with screwless gear tray and large terminal blocks
- Environmentally friendly & stable LiFePO4 battery
- IP65 - Ingress protection
- IK10 - Highest level of impact resistance
- Expected life > 160,000hrs @L70 delivered by high quality Samsung LEDs
- Robust wireless mesh network
- 5 year warranty (2 tears for battery)
Applications
| PRODUCT RANGE |
Lumen output (lm) | |

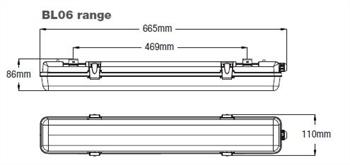

| BL06 | 600mm 16W | 2215 |
| BL06S | 600mm 16W with MW sensor | 2215 |
| BL06ES | 600mm 16W emergency with MW sensor | 2215 |

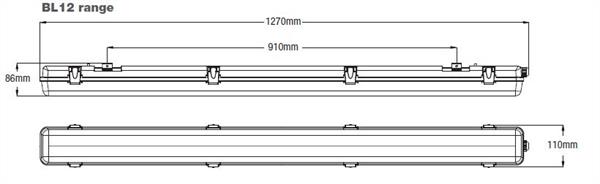

| BL12LP |
1200mm 22W | 3290 |
| BL12SLP | 1200mm 22W with MW sensor | 3290 |
| BL12ESLP | 1200mm 22W emergency with MW sensor | 3290 |
| BL12 | 1200mm 30W | 4220 |
| BL12S | 1200mm 30W with MW sensor | 4220 |
| BL12ES | 1200mm 30W emergency with MW sensor | 4220 |
Please note that due to upgrades in our batten lights we have changed our product codes. Download the document to discover the new product code translation.
| OPTICAL | |
| Light source | Samsung LED |
| Lumen output | 2215 - 4220 lumen |
| CRI | Ra>80 |
| CCT | 4000K and 5000K |
| ELECTRICAL | |
| Power consumption | 16W-30W full light output |
| Operating frequency | 50/60 Hz |
| Operating voltage range | 220 -240 V AC |
| EMERGENCY LIGHT | |
| Battery type | 6.4V 3000 mAh LiFePO4 |
| Discharge time | 90 minutes |
| ENVIRONMENTAL | |
| IP rating | IP65 |
| Impact rating | IK10 |
| Weight | 600mm - 1.8kg, 1200mm - 2.9kg |
| Ambient temperature range | -25°C to +40°C(non emergency models) 0°C to +40°C(emergency models) |
| CONTROLS - OPTIONAL | |
| Microwave sensor range | 360 deg; max 8m - adjustable |
| Microwave sensor operating interval |
5 sec to 10 min (default setting 30 sec) |
Brad Wyber, Trackie Industries
The Hills Super Centre, Castle Hill
‘We often forget the hidden costs of lighting, such as the cost per hour of life expectancy. Operating life can dramatically impact your maintenance costs and overall bottom line.
I like the Vico batten as it has an impressive operating life of 160,000 hours @L70, it uses an environmentally friendly LiFePO4 battery and quality Samsung LEDs.
I was able to achieve $22,000 a year savings in energy and reduced maintenance costs. I am delighted at the results’.
Darren Hynd, Jones Lang LaSalle
140 Williams St, Melbourne
"It is important that we always look at ways to improve the safety while keeping in mind improving sustainable energy efficient practices when making improvements to our properties. enLighten's Vico batten has not only improved light output but it has dramatically reduced energy spend within the fire stairs. These real savings add up."
Andrew Caswell, Nutbrook Engineering Group
Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens
‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.
I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’
Steve Vescio, Electrospark Electrical Services
Pittwater Baseball batting cage lighting revamp
‘Every now and then you complete a job where you stand back and feel super proud of what you have achieved - Completing the batting cage lighting for the Pittwater Baseball Club is one of those moments. Doing something for such an awesome club where both my boys and I play is very rewarding. BATTER UP!! PLAY BALL!’
Elecflight
2 Lonsdale St, Melbourne
Elecflight recently completed the carpark lighting up grade at 2 Lonsdale Street@casseldenmelbourne - A Grade office tower with 39 levels within the prestigious and historically rich Parliamentary precinct of the CBD.
They installed Vico, Chamaeleon III and a car park entry system. The results:
* Floor space of the premises (m2): 550
* Energy & Maintenance savings $25,034 per annum
* Energy Reduction of 53.89%
* CO2 Reduction 112 Tonnes Per annum
* BCA compliant car park entry to AS1680.
CONGRATS!
