Microwave sensor controlled bulkhead light

Overview

A high performance decorative multi mode oyster / bulkhead LED luminaire. Maximise your energy and mainenance savings through the inbuilt motion and daylight sensor.

Perfect for corridors, foyers, lobbies, toliets and fire stairs. Available in Charcoal Black

Product Features

Highlights

Key Features

  • Integrated motion sensor triggers transition between full & standby light outputs
  • Microwave sensor detection range of up to 8m
  • Control options - Integrated PE cell for daylight sensing with a range of ambient light level settings OR adjustable standby light setting of 0% / 20%
  • Durability - water & dust proof rating of IP65
  • Offering a high level of impact resistance IK10

Applications

Technical Info

TECHNICAL INFORMATION

 PRODUCT RANGE
  D-CHAM-C-CB  Chamaeleon Deco Standard with in-build sensor- charcoal black
  D-CHAM-C-E-CB  Chamaeleon Deco Emergency with in-built sensor - charcoal




  OPTICAL
  Light source                       SMD LED
  Lumen output     1750 lumen
  CRI     Ra>80





  ELECTRICAL
  Power consumption     21W Standard, 23W Emergency
  Operating frequency     50/60 Hz
  Operating voltage range     220 -240 V AC





  EMERGENCY LIGHT
  Battery type     7.2V Ni-CD SC 1800mAh HT
  Discharge time    90 minutes
  Emergency classification     D40
  CCT    4000K






  ENVIRONMENTALLY
  IP rating     IP65
  Impact rating     IK10
  Weight    2.03kg standard, 2.34kg emergency





  CONTROLS
  Integrated motion & PE sensor     5.8GHz microwave motion sensor
   with adjustable range
  Operating frequency     50/60 Hz
  Operating voltage range     220 -240 V AC







Dimensions

  MOUNTING
   WALL MOUNT
   CEILING MOUNT
  Suggested install height    1 - 1.8m    2.5 - 6m
  Detection range    Up to 6m    Up to 8m
  Detection angle    30° - 150°    360°
  Standard detection range settings       100% with options to
  decrease to 75, 50, 25 or 10%
Installation

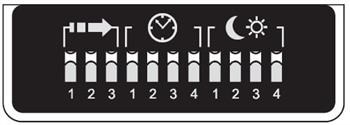

PARAMETER SETTING OF MICROWAVE SENSOR


Detection range setting (sensitivity)
This determines the effective range of the motion detector and is set by DIP switches at the sensor itself, refer to figure. Note that reducing the sensitivity will also narrow the detection range.



The following settings are available:
I - Detection range 100%
II - Detection range 75%
III - Detection range 50%
IV - Detection range 25%
V - Detection range 10%

Time setting

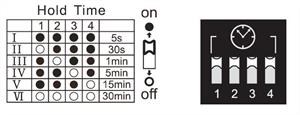

This determines the time the fitting remains at 100% level on motion detection and is set with DIP switches at the sensor itself, refer to figure. The following settings are available:
I -5s
II - 30s
III - 1 minutes
IV - 5 minutes
V - 15 minutes
VI - 30 minutes

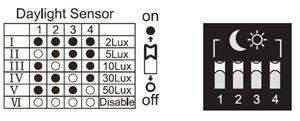

Light control setting (can only be used when standby is set to 0%)
This setting allows the motion sensor to switch the unit on when ambient light is below the set point. This setting can only be used if the standby is set to 0%. If the standby is set to 20% this has to be set to Photocell Disabled. When using the photocell function ensure the sensor cannot be influenced by other light sources.

The following settings are available:
I - 2Lux darkness operation only
II - 5Lux twilight operation
III - 10 Lux twilight
IV - 30 Lux daylight operation
V - 50 Lux daylight operation
VI - Photocell disable
