Chamaeleon™ III - IN STOCK NOW!

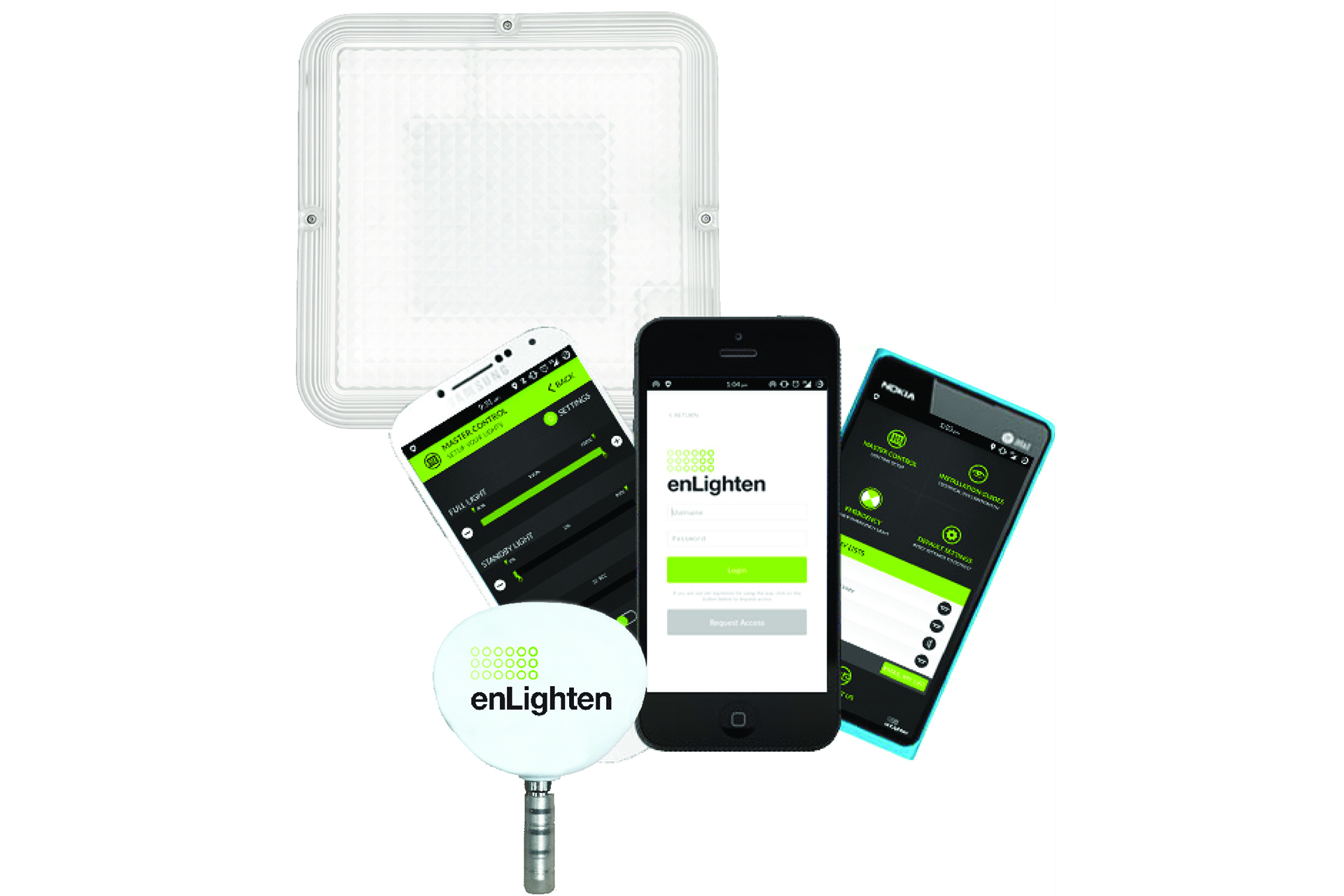

Self test, mobile control app and daylight sensor

Overview

Designed in Australia for Australian conditions, the Chamaeleon III has revolutionised the lighting for low occupancy spaces. The award winning patented Chamaeleon lll light offers new design & functionality improvements sourced from user feedback across over 1000+ project installations nationally.

Designed for Car Park and Fire Stairs, this luminaire has a well-known reputation for delivering reliability, maintenance and energy saving benefits.




Product Features

Highlights

Key Features

  • Monthly battery self test capability for emergency models
  • Integrated microwave motion sensor with range of up to 8m, triggers gradual transition between full & standby light output
  • Ability to adjust standby and full light output to provide a customised solution for each site
  • Lower standby power consumption–now only 5W!
  • Design optimised to improve battery performance & extend battery life
  • Smart Connect base for easy install, removal & maintenance. Maintenance can be performed by a handyman without isolating power
  • Externally accessible drawer for easy battery changeover in emergency versions
  • High performance LUMILEDS LEDs rated @L70 to over 100,000 hours
  • Vandal proof skirt available
  • Daylight sensor enabled, this feature ensures the light is not activated by the motion sensor when daylight is detected but instead remains on standby mode.


Applications

Awards


  • 2019 - National Awards for excellence - Sustainability Award
    2016 - Energy Efficiency Council Industry Awards 2016 - Best Energy Efficiency Innovation
    2015 - Alumni Finalist, Australian Technology Competition
    2015 - NSW IES Luminaire Design Award of excellence
    2012 - CleanTech Open Awards - Winner
    2012 - Taipei INternational Invention show - Sliver medal winner
    2011 - NSW Government Green Globe award - Environmental Innovation award winner
Technical Info

TECHNICAL INFORMATION

 PRODUCT RANGE
  CHAM-C  Ceiling mount standard
  CHAM-C-E  Ceiling mounted emergency

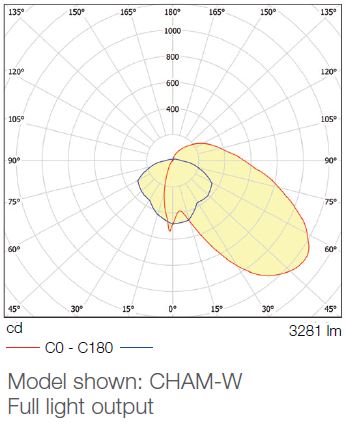

  CHAM-W  Wall mounted standard

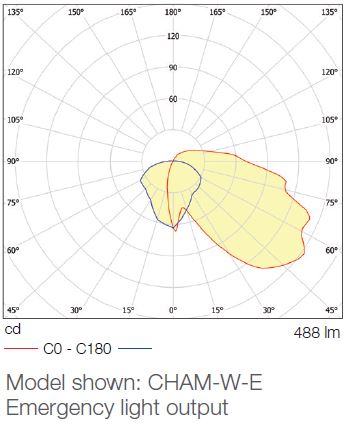

  CHAM-W-E  Wall mounted emergency






  OPTICAL
  Light source   Lumileds LED
  Lumen output (adjustable via
  Chamaeleon III App)
  3500 lumen
  CRI   Ra>80
  CCT  4000K







  ELECTRICAL
  Power consumption   42 -43W full light output, 4 -5W at standby
Operating frequency   50/60 Hz
Operating voltage range   100 -264 V AC
Power factor  >0.9 240 V AC at full load






  EMERGENCY LIGHT
  Battery type    9.6V NiMH 2200mAh
  Discharge time   90 minutes
  Emergency classification  Ceiling mount: C0: D50, C90: D40
 Wall  mount: C0: D63, C270: D50






  ENVIRONMENTAL
  IP rating    IP52 standard, IP65 models available
  Impact rating    IK10
  Weight  4.5kg
  Ambient temperature range     -10°C to +50°C






  CONTROLS - STANDARD
  Microwave sensor range    360 deg; max 8m - adjustable
  Microwave sensor operating interval
  10 sec to 5 min
  Daylight sensor    Manually adjustable
Installation


1. Place the light on a soft surface to avoid scratching the diffuser. Using the key taped to the body of the light, remove the base by turning the key and pulling on the barrel lock.

  2. Mount Smart-Connect base by fixing it to the ceiling at all four corners. Minimum size fixing: 6.5mm. If fixing to plasterboard use 4 hollow wall anchors.

3. Connect the Smart-Connect base wiring to the light circuit wiring of the building.     3a. The conduit locator tabs can be used to hold the conduit in the correct position. Standard conduit size is 20mm. For 25mm conduit a reducer is required.





4. Place Smart-Connect Base plate hinge tabs into slots located at opposite end to barrel lock. Align the electrical connector terminal pins on the light fitting to the terminal block sockets on the base.

Once aligned, press the light upwards to connect. Do not force the light into the base terminal without aligning the pins and clicking the hinges as the pins may snap.

  5. Push barrel lock in to secure.

BATTERY SELF-TEST FUNCTION

The Chamaeleon emergency light is programmed to automatically conduct a monthly 90 minute discharge test. The test does not disrupt the light's normal operation. The monthly discharge test is visable via single multi colour LED indicator, located under the diffuser.
