Project Overview
Haigh’s is one of the oldest family owned chocolate makers in Australia. They employ over 600 people and are committed to premium chocolate making.
Haigh’s Chocolates wanted to improve the quality of light and safety for their staff, whilst also reducing their energy footprint at their Mile End facility in South Australia. This facility is used to store finished goods and raw material before dispatch.
Inefficient lights can account for 50%+ of your total energy bill, in fact warehouses with no manufacturing equipment are likely to see the lighting account for almost all of the energy used.
Testimonial
‘Continual maintenance on metal halides can be expensive, this was one of the reasons we decided to upgrade our facility. Lighting not only creates a safer work environment but designing quality lighting around workspaces, can decrease injuries and increase productivity and employee satisfaction. We are delighted at the results’
Gallery
The Solution

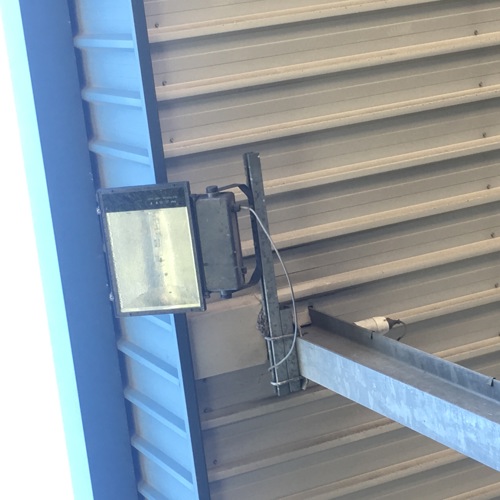

Globebusters, a trusted lighting maintenance group and S.Davis Electrical Contractors determined that lighting levels were low for the tasks being performed. Inefficient 250W & 400W metal halides were installed often in the wrong locations, these lights produce 15 to 30% of input energy to waste heat which was not ideal in a climate control environment.
Using the Tauro Black LED high bay, Haigh’s Chocolates has been able to reduce their energy consumption by 63% and they been able to improve the quality of light and safety of their staff. The Tauro Black incorporates optics for use in aisle racking applications. This makes it easy to achieve quality vertical illumination which assists with accurate barcode scanning and safer fork truck operation. I
nstalled were:
66 Tauro Black (30W, 90W, 180W) linear high bays

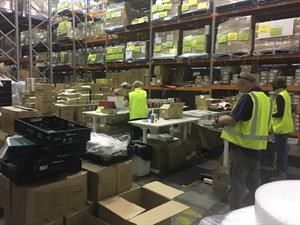

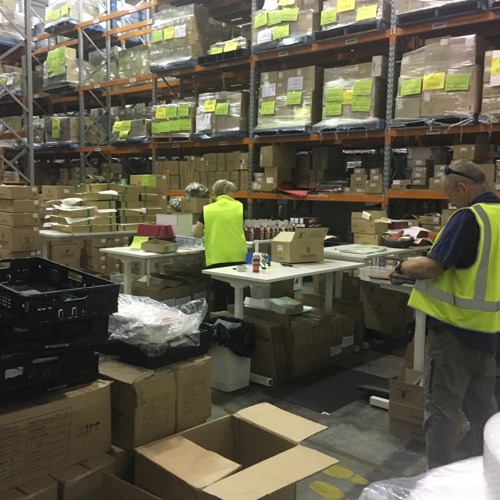

2 Kascade LED low bays suspended above the packing work benches
6 Noctua 40W forward throwing floodlights on the exterior of the building
5 Skyline 30W panel were used in the offices and break out areas
7 Vico batten
Project scope
The Mile End facility is used to store finished goods and raw material. The factory consists of 5 main areas, the storage of seasonal and
outside lines (Christmas and wedding collection, Mothers Day, Gift Range etc) the storage of standard lines (boxed chocolates, chocolate
blocks and bars,artesian range etc), dry goods and packaging, holding and dispatch area and the office/break room.
Products used
AREA | EXISTING | LOSSES | QTY | EXISTING | ENLIGHTEN | PROPOSED | REDUCTION | SAVING |
Seasonal & | 250 | 25 | 15 | 4.125 | Tauro Black | 1.77 | 2.36 | 57% |
Dry Goods & | 250 | 25 | 21 | 5.775 | Tauro Black | 2.11 | 3.67 | 63% |
Holding Area | 400 | 40 | 7 | 3.08 | Tauro Black | 1.44 | 1.64 | 53% |
Standard | 250 | 25 | 15 | 4.125 | Tauro Black | 1.35 | 2.78 | 67% |
Standard | 72 | 12 | 5 | 0.42 | Tauro Black | 0.18 | 0.24 | 57% |
Office & Break | 72 | 12 | 6 | 0.504 | Skyline Panel | 0.18 | 0.32 | 64% |
North Exterior | 250 | 25 | 2 | 0.55 | Noctua | 0.24 | 0.31 | 56% |
East Exterior | 250 | 25 | 4 | 1.1 | Noctua | 0.16 | 0.94 | 85% |

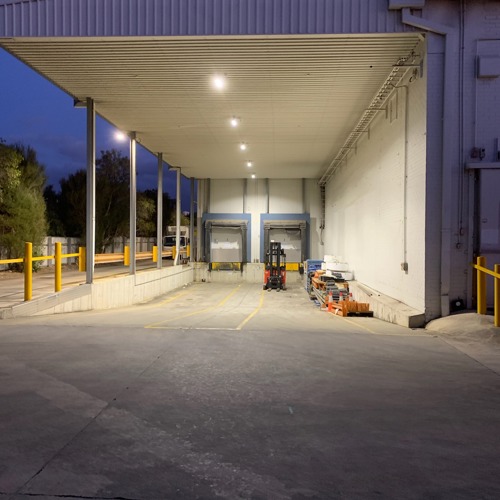

Receiving Dock | 250 | 25 | 5 | 1.375 | Tauro Black | 0.45 | 0.93 | 67% |
West Exterior | 80 | 8 | 7 | 0.616 | Vico Batten 18W | 0.13 | 0.49 | 80% |

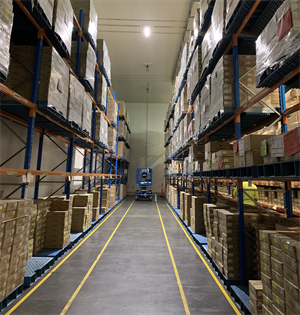

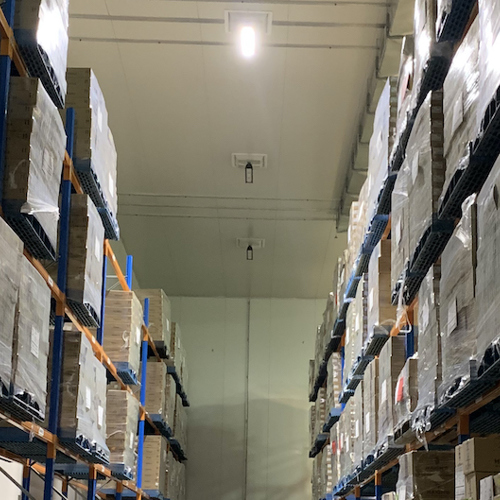

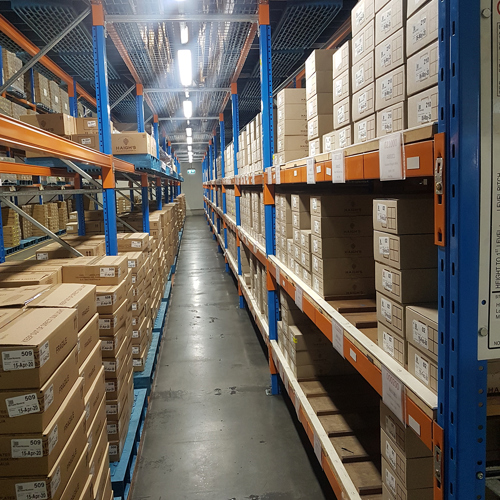

enLighten’s Tauro Black linear high bay luminaire was used in the storage aisles where racking is found, this luminaire
has industry leading efficacy of 165 lm/w.
Using the Tauro Black LED high bay, Haigh’s Chocolates has been able to reduce their energy consumption providing financial
benefits to their business and improved lighting for staff. The Tauro Black incorporates optics for use in aisle racking applications.
This makes it easy to achieve quality vertical illumination which helps with accurate barcode scanning and safer fork truck operation.
