Noctua
Directional flood light with superior illumination
The Noctua is a high quality commercial LED flood light that has been designed to maximise area illumination and light uniformity.
Designed with an asymmetrical forward throwing lens, the Noctua provides 30% better illumination uniformity and saves up to 40W when compared against common LED flood lights. The lensed optics are engineered to achieve significant glare reduction giving you light where you need it.
It is a robust and reliable product with high ingress protection and it has been IPART approved. With versatile mounting options the Noctua can easily be wall or ground mounted using the mounting bracket or can be pole mounted, using the optional pole mounting adaptor.
The Noctua flood light can be fitted with a DALI compliant driver that easily connects to an existing lighting control system.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key features
Low glare, directional flood light with superior illumination
Achieve 30% better illumination uniformity using an asymmetrical forward throwing len
Versatile mounting options suitable for pole, wall or ground mounting
Easy install using mount brackets or adaptors
Dimming options include 1-10V, PWM and DALI
Corrosion resistant powder coated body
IP66, high ingress protection for dust and withstands significant water pressure
IK08 impact resistance
Respirator valve achieves zero steam build up internally
IPART approved
Applications
MODEL | DIMENSIONS (mm) | LUMEN | Rated Power (W) |
NFL20-40K-FTL | 308 x 82.9 x 359.3 | 3,000 | 20 |
NFL40-40K-FTL | 308 x 82.9 x 359.3 | 5,740 | 40 |
NFL60-40K-FTL | 308 x 82.9 x 359.3 | 8,440 | 60 |
NFL80-40K-FTL | 308 x 82.9 x 359.3 | 10,790 | 80 |

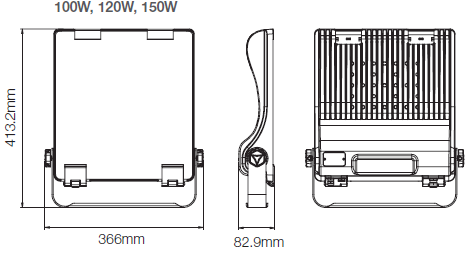

NFL100-40K-FTL | 366 x 82.9 x 413.2 | 13,970 | 100 |
NFL120-40K-FTL | 366 x 82.9 x 413.2 | 16,240 | 120 |
NFL150-40K-FTL | 366 x 82.9 x 413.2 | 20,240 | 150 |

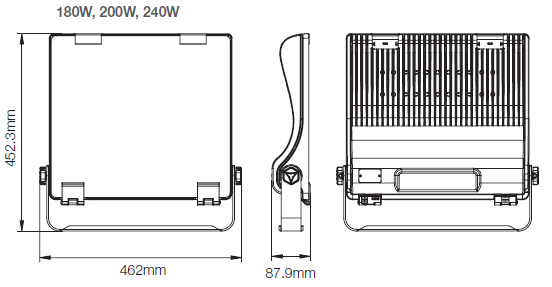

NFL180-40K-FTL | 462 x 87.9 x 452.3 | 24,390 | 180 |
NFL200-40K-FTL | 462 x 87.9 x 452.3 | 26,430 | 200 |
NFL240-40K-FTL | 462 x 87.9 x 452.3 | 31,670 | 240 |
OPTICAL | |
Light Source | Nichia LEDs |
Lumen output | 3,000 – 31,670 lumens |
CRI | Ra>70, Ra>80 |
CCT | 4000K standard; 3000K & 5000K optional |
Luminaire efficacy | Up to 139 lm/W |

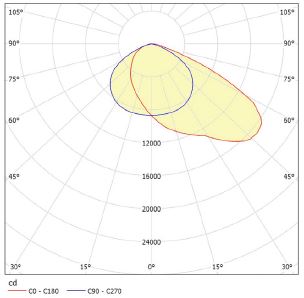

Beam angle | Asymmetric forward throw |
ELECTRICAL | |
Power Consumption | 20W - 240W |
Operating frequency | 50Hz |
Operating voltage range | 220-240V AC |
Power factor | >0.90/240V AC |
Driver | Sosen, DALI compliant driver (optional) |
Dimming controls (optional) | 1-10V, PMW, DALI dimming |
ENVIRONMENTAL | |
IP rating | IP66 |
Impact rating | IK08 |
Weight | 4.3 - 8.9 kg |
Ambient temperature rating | -30°C to +50°C |
Material Composition (body) | Aluminum Alloy |
Material Composition (diffuser) | Polycarbonate lens and tempered glass |
Expected lifespan | >130,000 hours at L70 |

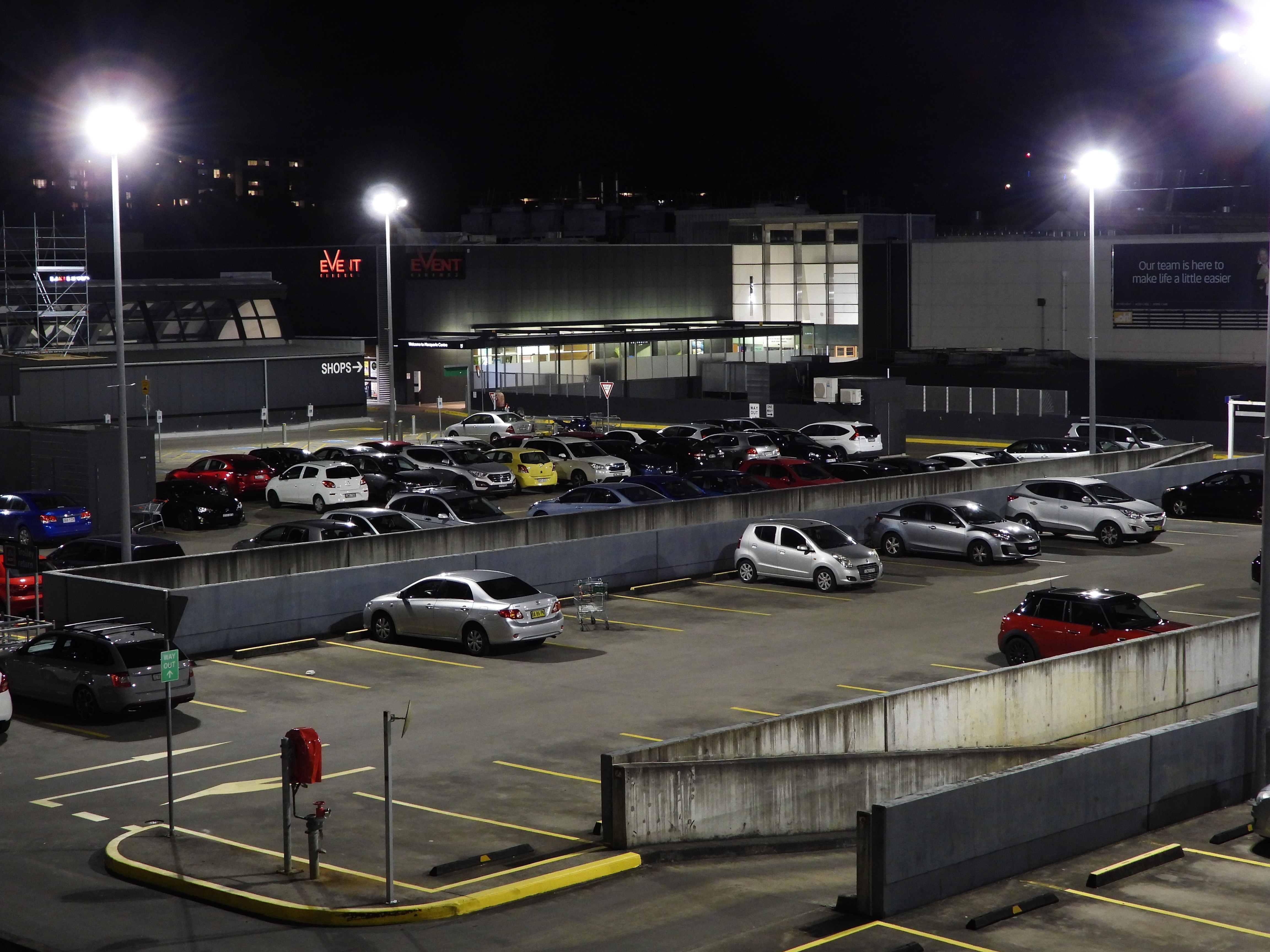

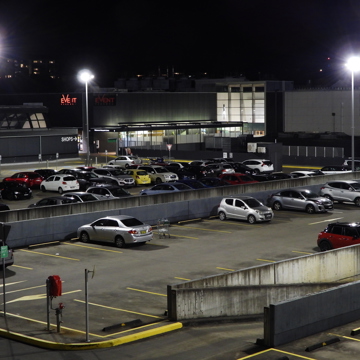

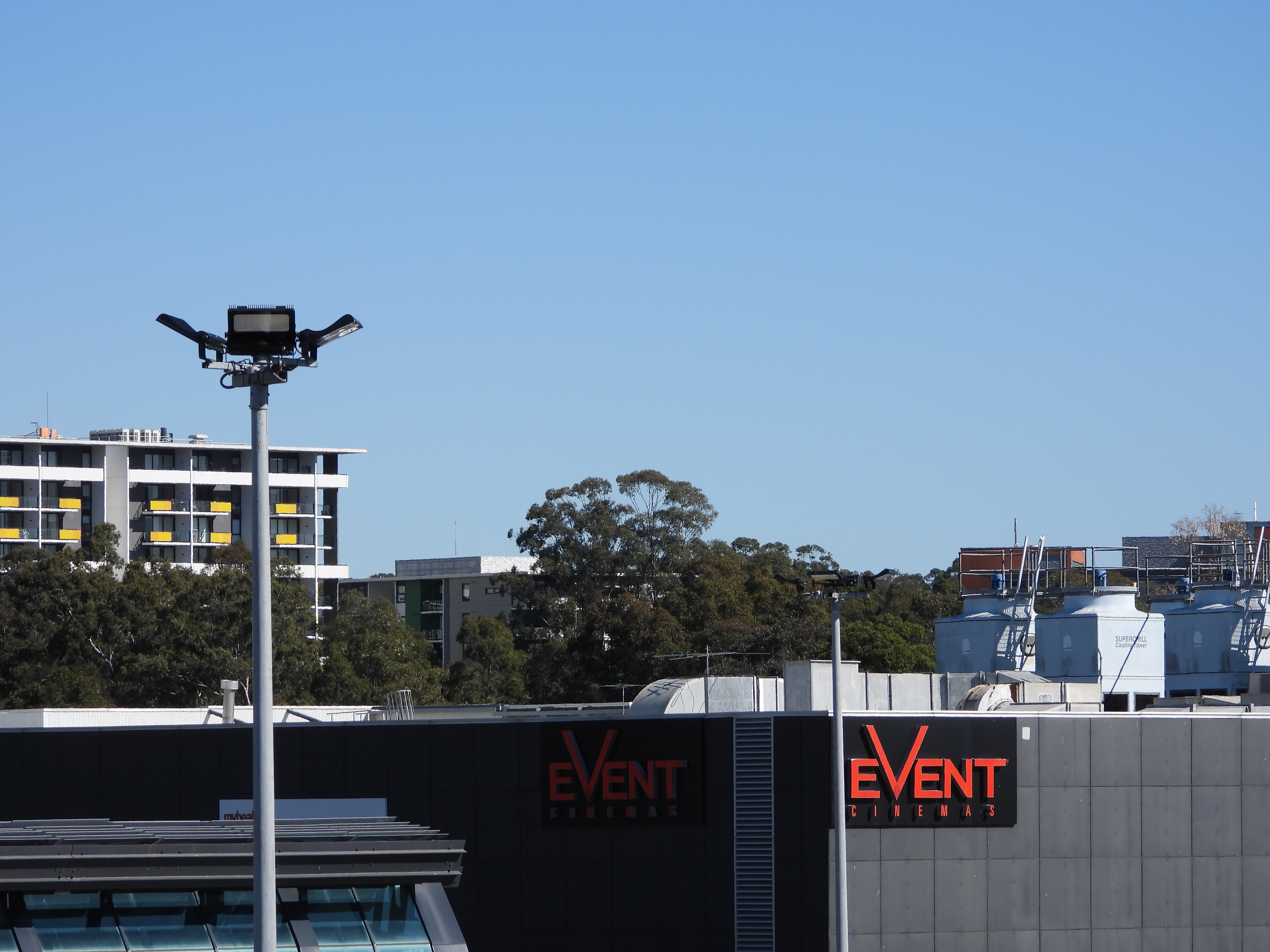

Macquarie Centre car park
Installed on this site were:
Noctua non-glare floodlights, Vico battens and Zorro area light.
‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.
I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’
