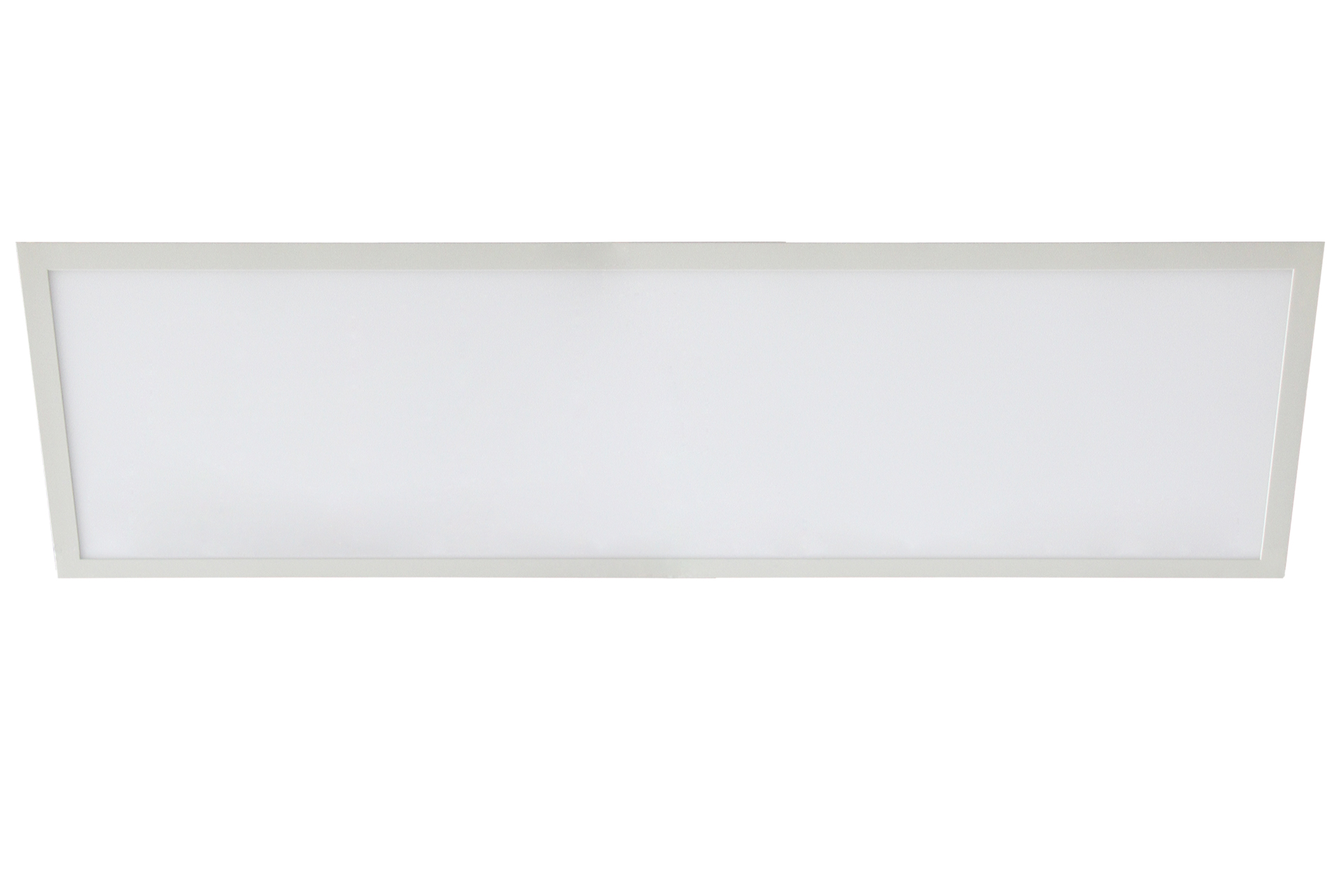

Skyline LED panel and air return options
Backlit design with significantly improved efficacy

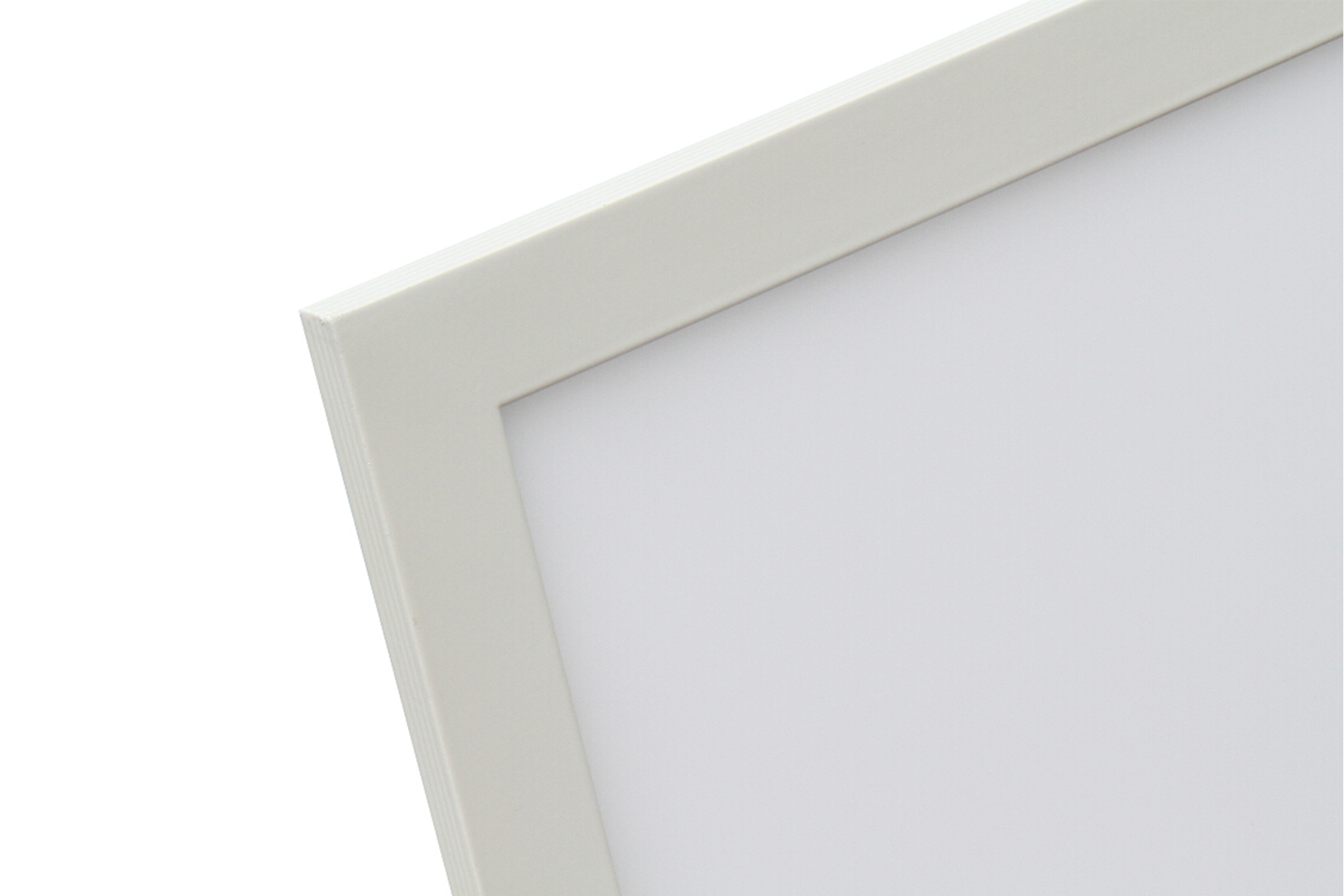

The Skyline is a low-glare, backlit LED office panel, delivering a high-quality lighting solution for office and school environments. Designed with a microprismatic diffuser, it ensures even light distribution and eliminates glare for maximum occupant comfort.
With superior efficacy, the Skyline is ideal for retrofit projects where government incentives apply. Professionally finished with a seamless, screwless frame, it offers an elegant, perfectly flat appearance. Suitable for recessed or surface-mounted applications.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key Features
Easy installation with 1.5m flex & plug
Low glare, UGR<19 design to maximise comfort
Flicker free driver performance to reduce eye strain
High luminaire efficacy of up to 170lm/W
IP54 front side for extra protection
Seamless frame for enhanced appearance & rigidity
Suitable for standard ceiling grid sizes
Mounting options available: recessed and surface mounted kits
Control options: DALI-2 and Casambi
Tunable white option
Lower power: 15W for single tube fluro replacements
Customised frames for air return available
Applications

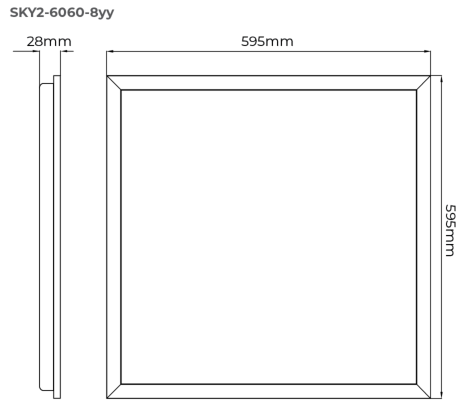

SKYLINE MODEL | CRI | RATED POWER(W) | LUMEN | DIMENSIONS(mm) | WEIGHT(kg) |
SKY2-6030-15-8yy | 80 | 15W | 2200lm | 595 x 295 | 1.0 |
SKY2-6060-15-8yy | 80 | 15W | 2470lm | 595 x 595 | 1.9 |
SKY2-1230-15-8yy | 80 | 15W | 2470lm | 1195 x 295 | 2.0 |
SKY2-6060-19-8yy | 80 | 19W | 3170lm | 595 x 595 | 1.9 |
SKY2-1230-19-8yy | 80 | 19W | 3170lm | 1195 x 295 | 1.9 |

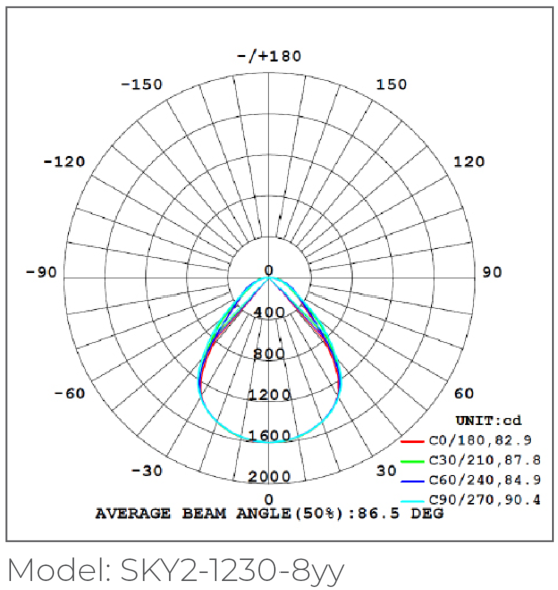

OPTICAL |
|
Lumen output | 2000-3170 lumens |
CRI | Ra> 80 |
CCT | 4000K & 5000K standard, 3000K & 6000K optional |
Luminaire efficacy | Up to 125 lm/W |
Glare rating (UGR) | UGR < 19 |
ELECTRICAL |
|
Power consumption (W) | 15W - 19W |
Operating frequency | 50Hz |
Operating voltage range | 220 - 240V AC |
Power factor | >0.95 / 240 V AC |
ENVIRONMENTAL |
|
IP rating | IP40 |
Weight | 1.0 - 2.0kg |
Ambient temperature range | -20°C to 40°C |
Material Composition (body) | White powder-coated aluminium |
Material Composition (diffuser) | PMMA LGP |
Expected Lifespan | >120,000 hours @ 70% lumen maintenance |
CONTROLS |
|
Dimming | DALI/DSI, 1 - 10V |
Martyn Orford, Platinum Electricians

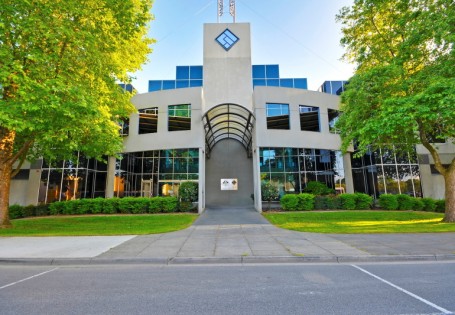

ASIC building, 14-20 Grey St, Traralgon
‘We have had really good feedback from the workforce in the ASIC building, they told us, it is easier to see the detailed information on their screens and that the new Skyline panels have improved how they feel about their working environment. We were really happy seeing such positive feedback so soon after the installation.
This has been a fantastic project for us to be involved in, enLighten products were easy to install and provided a fantastic outcome for our client.'
Brad Wyber, Trackie Industries

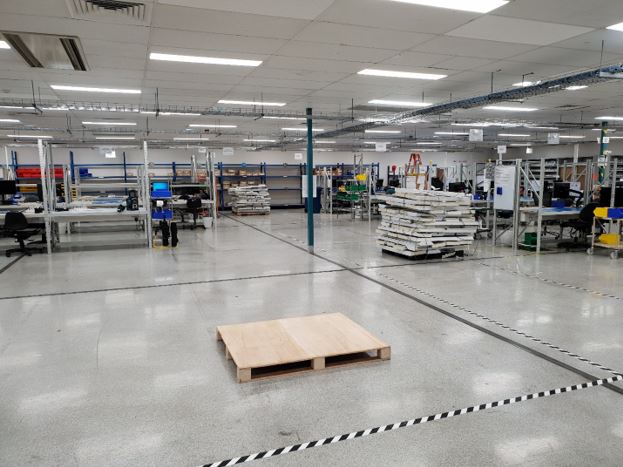

Asurion Australia
Asurion Australia is a workshop facility based in Sydney’s South West that specialises in mobile phone repairs.

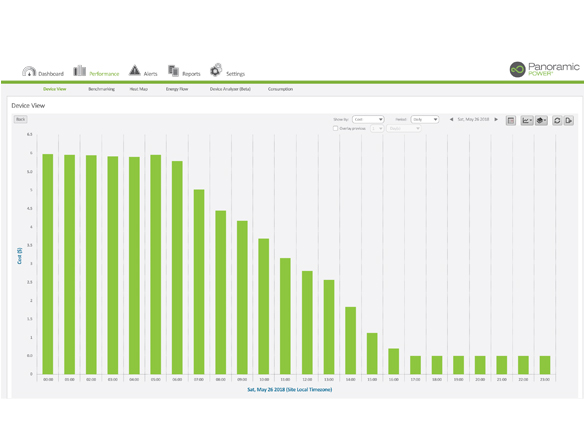

After monitoring and benchmarking the energy usage, it was confirmed that prior to the upgrade, it was costing Asurion $6p/h to run the lights 24/7, following the upgrade, it now costs 50c p/h during work hours.
Also the Skyline produced approximately 42 per cent more light than the existing lights, which allowed them to remove all the desk lamps.
Lighting Council Australia
Increase well-being and increase productivity
‘A well-designed LED lighting system can improve concentration, health, well-being and productivity levels while lowering stress and creating a better mood.'
Skyline : Introducing a new Backlit design

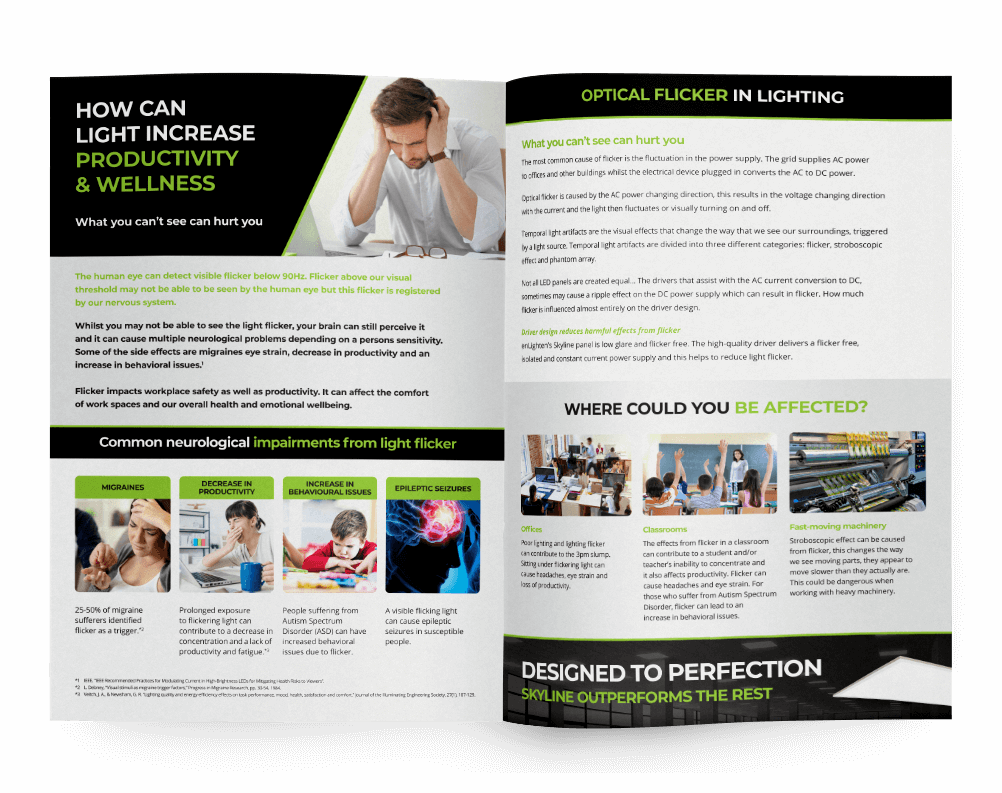

Download our guide to improve office lighting
