Kascade
High-performance, high CRI LED highbay
Kascade is a high-performance, high CRI LED high bay ideal for use in food production and other industrial areas.
The Kascade LED high bay has a high light output and offers a high colour rendering whilst achieving low power consumption.
Designed with no glass, it is completely sealed from the environment and offers glare shielding. Its smooth yet robust surfaces have no exposed screws, it is hygienically sealed. It can withstand powerful jets of water for hassle-free cleaning.
The Kascade comes with 1-10V DC dimming as standard and can be can be fitted with a DALI compliant driver (optional)
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key Features
Very high colour rendering CRI>90
Narrow, medium & wide beam optics available
Ease of installation, single point hook mounting with 3m flex and plug
Available in 100W, 120W, 150W & 200W
IP66, high ingress protection for dust and withstands significant water pressure
IK10 Highest level of impact resistance
1-10V dimmable (standard), DALI dimmable (optional)
Ambient operating temperature range of -30°C to +50°C
Zero maintenance, reliable Meanwell driver
VEU approved
IPART approved
Applications
MODEL | DESCRIPTION | LUMEN | Rated Power (W) |
KHB100-50K-xx-90 | 100W 5000K CRI>90 | 11,260 | 100 |
KHB120-50K-xx-90 | 120W 5000K CRI>90 | 12,940 | 120 |
KHB150-50K-xx-90 | 150W 5000K CRI>90 | 16,910 | 150 |
KHB200-50K-xx-90 | 200W 5000K CRI>90 | 21,570 | 200 |
OPTICAL |
|
Light source | Nichia LEDs |
Lumen output | 11,200 - 21,640lm |
CRI | Ra>90 standard; |
CCT | 5000K standard; |
Luminaire efficacy | >107 lm/W |

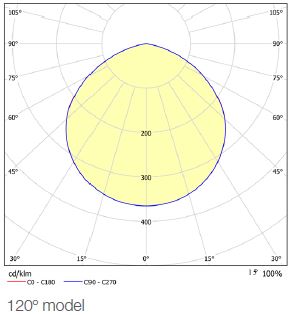

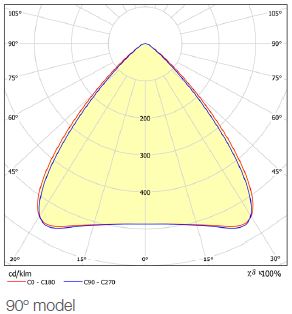

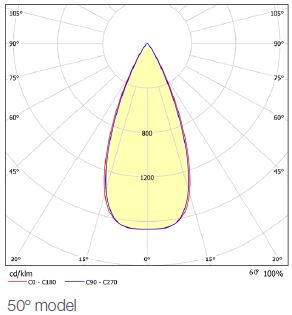

Beam angle | 120°, 90°, 50° |
ELECTRICAL |
|
Operating voltage range | 220 - 240V AC, 50Hz |
Power factor | >0.90 / 240V AC |
Driver | Meanwell |
ENVIRONMENT |
|
IP rating | IP66 |
Impact rating | IK10 |
Net Weight | 7.2 ± 0.3kg |
Ambient temp range | -30°C to 50°C |
Material composition (body) | Aluminium Alloy |
Material composition (diffuser) | Polycarbonate lens |
Expected lifespan | >170,000 hrs @ 70, |
CONTROLS |
|
Dimming | 1-10V (standard), DALI (optional) |

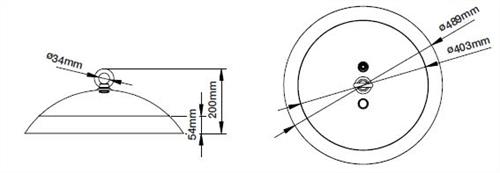

THE DIMENSIONS ARE FOR 100W, 120W, 150W & 200W
Ian Brunning, Globebuster

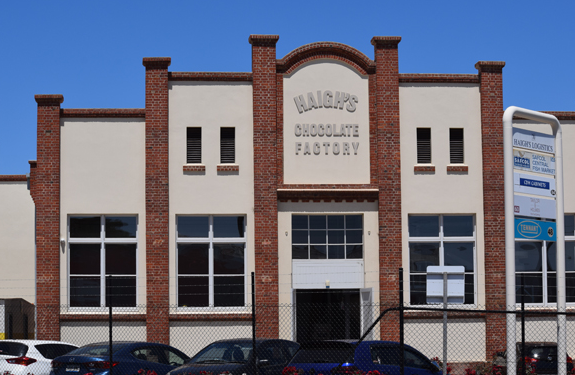

Haigh's Chocolates
"We chose the Kascade HACCP approved food grade luminaire to place above the packing benches,as they are a high-performance CRI luminaire which is ideal for food production areas. Haigh’s Chocolates cares about the lighting comfort for all their employees,"

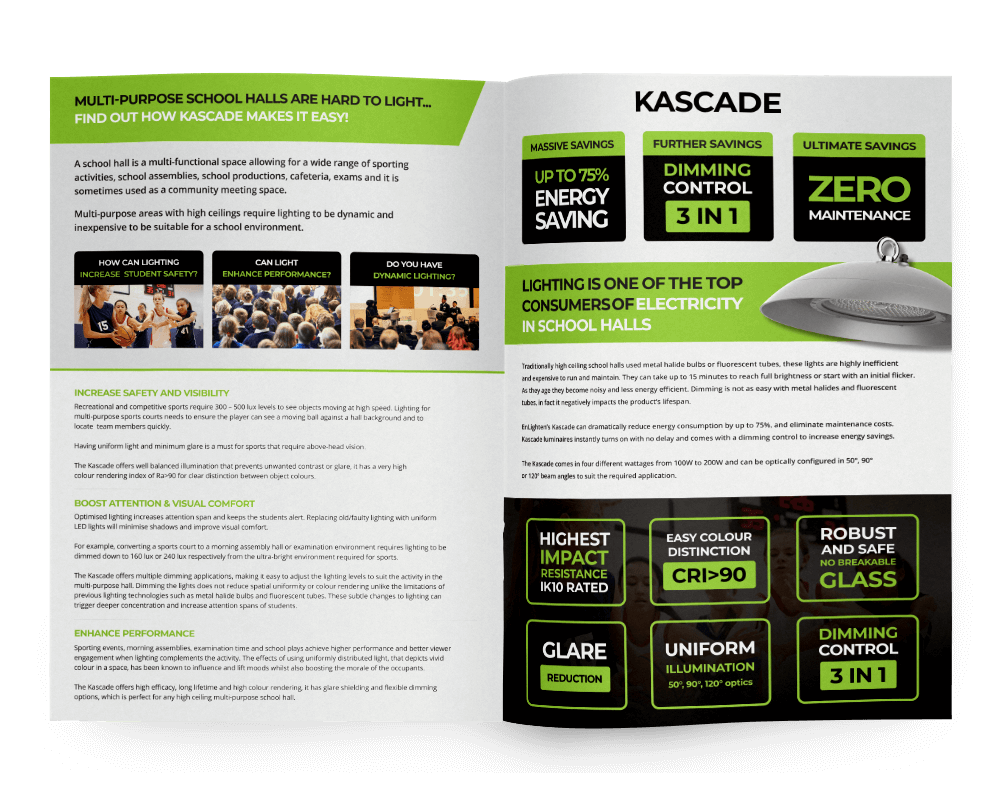

Download your multi-purpose school hall lighting guide
