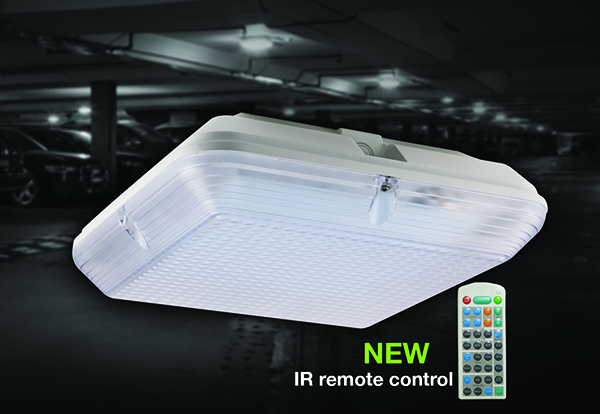

Chamaeleon Eco
Up to 93% energy savings
The Chamaeleon Eco, designed by enLighten Australia, it complements the Chamaeleon range to offer a complete back of house lighting solution for residential strata common areas, commercial and industrial applications.
It is an excellent choice for fire stairs, car parks and corridors, with both emergency and non emergency options available. Easy to install using a screw less gear tray with pre-drilled holes and a large terminal block.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product features
Key Features
Integrated microwave motion sensor triggers automatic switching between full and standby light output in standard and emergency models
Daylight harvesting
Commissioning tool - Easily adjustable with infrared, universal remote
Smart Connect base for easy install, removal & maintenance. Maintenance can be performed by a handyman without isolating power
High performance LUMILEDS LEDs
Expected life > 54,000hrs
Adjustable full and standby lighting levels
Indoor or outdoor use supported by water and dust proof rating of IP65
IK10 - Highest level of impact resistance
IP65 - Ingress protection
Emergency and non emergency options available
Australian design
VEU approved
IPART approved
Applications
TECHNICAL INFORMATION
PRODUCT RANGE |
|
EN-SL-S | Ceiling mount standard |
EN-SL-E | Ceiling mount emergency |

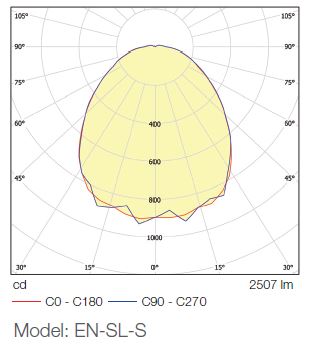

OPTICAL |
|
Light source | Lumileds LED |
Lumen output | 2500 lumen |
CRI | Ra>80 |
CCT | 4000K |
ELECTRICAL |
|
Power consumption | 22W full light output (standard), 25W (emergency) |
Operating frequency | 50/60 Hz |
Operating voltage range | 100 -240 V AC |
Power factor | >0.9 240 V AC at full load |
EMERGENCY LIGHT |
|
Battery type | 7.2V NiCD 1800mAh |
Discharge time | 90 minutes |
Emergency classification | D50 |
ENVIRONMENTALLY |
|
IP rating | IP65 |
Impact rating | IK10 |
Weight | 2.5kg standard, 3kg emergency |
Controls | Microwave motion sensor & PE |
Allan Hoy, Building Manager

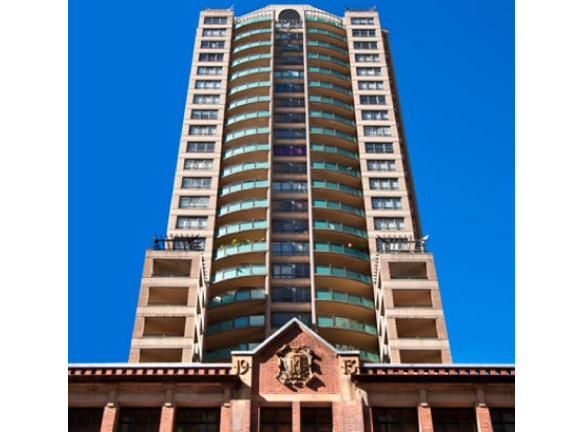

Hyde Park Towers
'8 years on at Hyde Park Towers and only 6 drivers have needed replacing. When we reached out to enLighten this year, they didn't hesitate to replace the drivers and renew the life of our Chamaeleon Eco's. I am delighted at the quality and longevity of this product.
Thank you enLighten for supporting your product even after 8 years and all your efforts in making a real environmental impact.'
Chamaeleon Eco LED sensor light
Overview of the contractor friendly design features and user benefits of the Australian designed standard & emergency LED light with integrated microwave motion sensor. Installation friendly, dimmable standby light option, IR commissioning tool for simple adjustment of light settings
