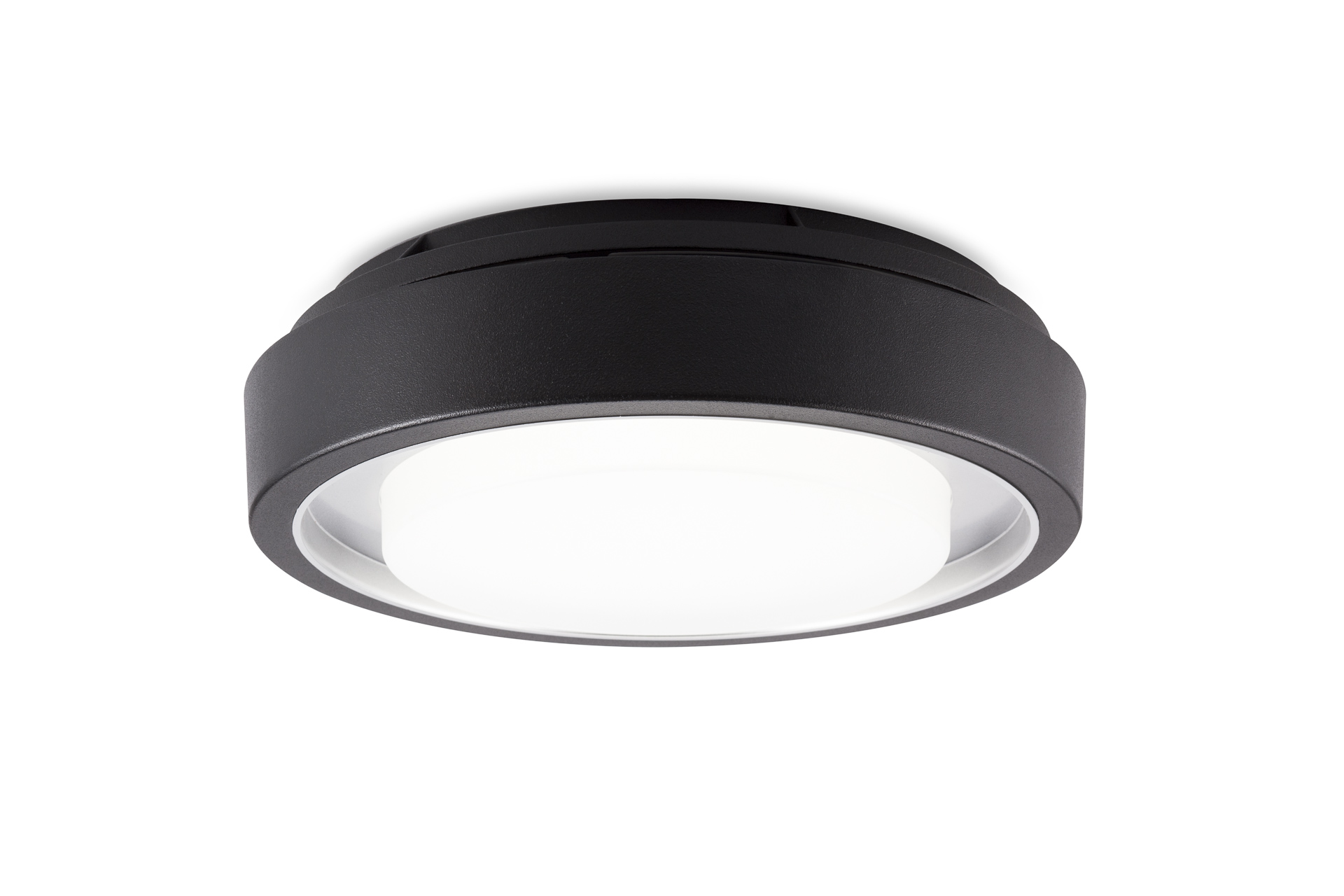

Chamaeleon Deco

Microwave sensor controlled bulkhead light

The Chamaeleon Deco is a high-performance decorative LED bulkhead/oyster light, featuring an integrated microwave motion and daylight sensor for maximum energy and maintenance savings.

Ideal for corridors, foyers, lobbies, toilets, and fire stairs, this stylish luminaire is available in Charcoal Black.

Product Downloads

Click the below links to download guides, datasheets and more.

enLighten chamaeleon deco cb emergency installation instructions 5.35 MB · Last modified: 02-Dec-2025
enLighten chamaeleon deco cb datasheet 0.64 MB · Last modified: 02-Dec-2025
enLighten chamaeleon decorative cb installation guide standard 2024 0.89 MB · Last modified: 02-Dec-2025

Tip: You can right click a link and "Save link as" for quick file downloads

Secure Zone Documents

Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.

If you do not have a login you can request access.

Request Access

Key Features

Integrated motion sensor triggers transition between full & standby light outputs
Microwave sensor detection range of up to 8m
Control options - Integrated PE cell for daylight sensing with a range of ambient light level settings OR adjustable standby light setting of 0% / 20%
Durability - water & dust proof rating of IP65
Offering a high level of impact resistance IK10

Applications


PRODUCT RANGE
D-CHAM-C-CB	Chamaeleon Deco Standard with in-build sensor- charcoal black
D-CHAM-C-E-CB	Chamaeleon Deco Emergency with in-built sensor - charcoal

OPTICAL
Light source	SMD LED
Lumen output	1750 lumen
CRI	Ra>80

ELECTRICAL
Power consumption	21W Standard, 23W Emergency
Operating frequency	50/60 Hz
Operating voltage range	220 -240 V AC

EMERGENCY LIGHT
Battery type	7.2V Ni-CD SC 1800mAh HT
Discharge time	90 minutes
Emergency classification	D40
CCT	4000K

ENVIRONMENTALLY
IP rating	IP65
Impact rating	IK10
Weight	2.03kg standard, 2.34kg emergency

CONTROLS
Integrated motion & PE sensor	-5.8GHz microwave motion sensor with adjustable range. -Integrated PE cell to activate the motion sensor at specified ambient light level. Sensor control settings of 2, 5, 10, 30, and 50 lux available to cover darkness, twilight and daylight levels (standard setting – photocell disabled)
Operating frequency	50/60 Hz
Operating voltage range	220 -240 V AC

Spare Parts
Replacement battery pack	7.2V Ni-CD SC1800mAh HT, part No SPC-Batt-DECO

MOUNTING	WALL MOUNT	CEILING MOUNT
Suggested install height	1 - 1.8m	2.5 - 6m
Detection range	Up to 6m	Up to 8m
Detection angle	30° - 150°	360°
Standard detection range settings	100% with options to decrease to 75, 50, 25 or 10%

Asher Christophers, Austep Lighting

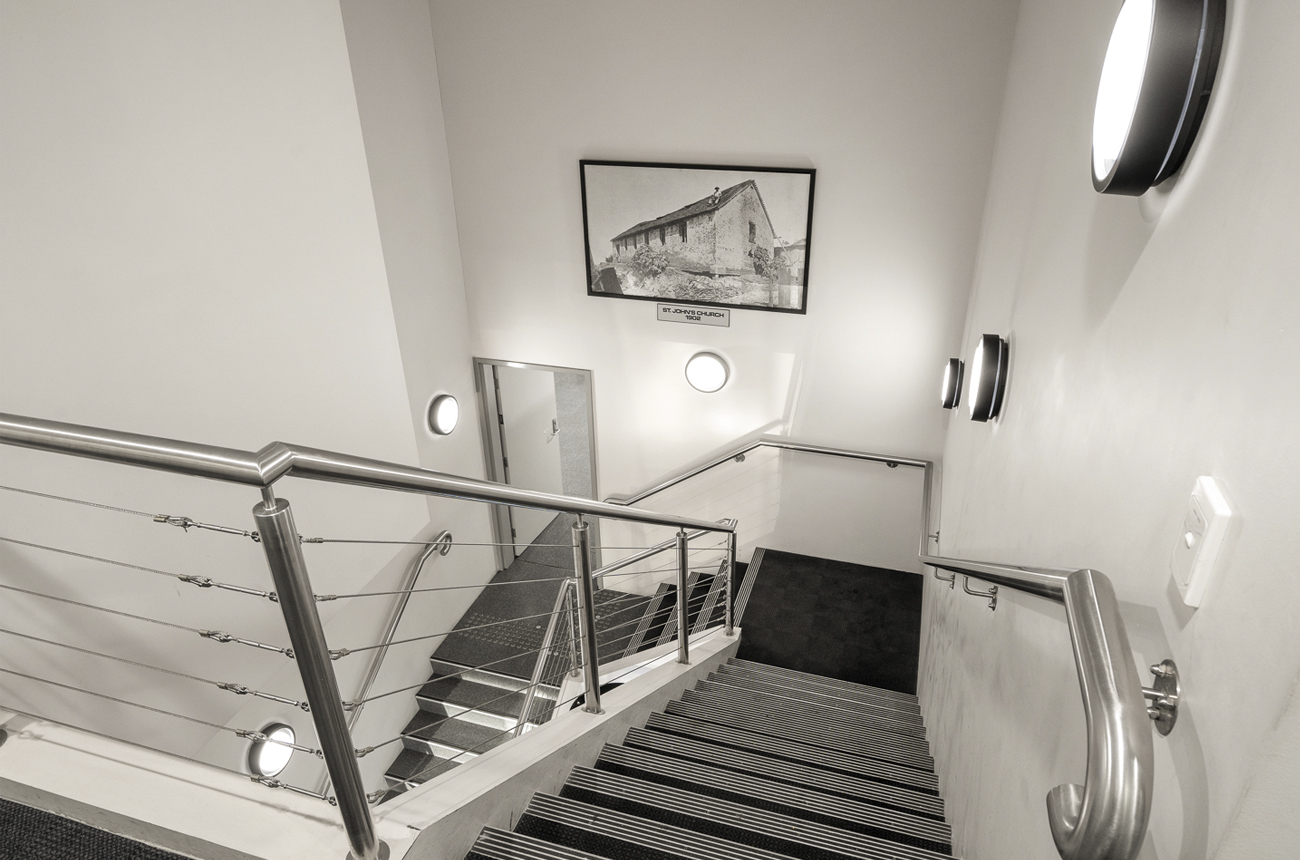

Toyota showroom

‘The Chamaeleon Deco is the go-to bunker light for Austep Lighting projects due to it's durability (IK10 and UV resistant), unique aesthetic, and integrated programmable sensor with 6m detection range.'


Rob Filipovic, Powerwell

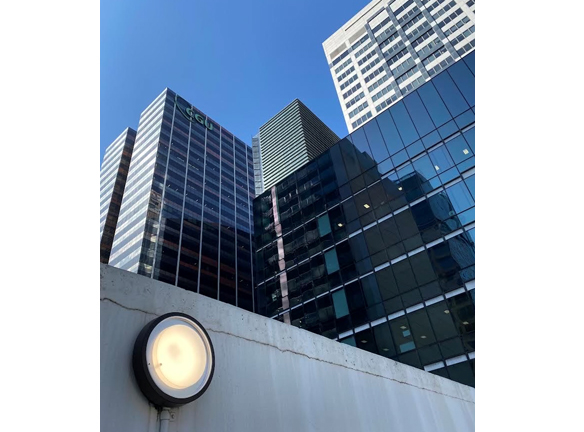

Wilson Car Park, Melbourne

‘The Chamaeleon Deco was the perfect choice to replace old failing bunkers located near the fire stairs in the car park. The Wilson car park operates 24/7 and as a result the Chamaeleon Deco offers significant opportunities for energy cost savings and longer maintenance cycles.

This robust wall mounted bunker is IP65 & IK10 rated, it has a motion and daylight sensor. I am very pleased with the results we achieved.'
