Zorro

ROBUST AND RELIABLE Street/area/food light

Overview

The Zorro area light offers superior performance and reliability. It is a high efficacy exterior car park and external walkway lighting solution. This light has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn. This versatile light comes in a wide range of power and lens options to suit your application.

Product Features

5 year warranty Daylight Sensor Easy maintenance Horizontal mount IK10 Rating IP66 Rating Smart controls Vertical mount
Highlights

Key Features

  • Sleek low profile design available in silver or black
  • Modular design offering a broad range of lumen outputs and light distribution
  • High performance Lumileds LUXEON TX LEDs
  • Breather gaps between modules increase heat transfer to maximise LED performance
  • Easy fit universal mountings and connectors – ability to fit square and round poles
  • Adjustable spigot offers horizontal and vertical installation
  • Integrated PE option available to switch off during the daylight hours
  • Optional low voltage DC drivers for solar/battery powered interface

Applications

Bike paths Univesities & school campuses Council parks Industrial estate Outdoor car parks
Technical Info
  MODEL  DIMENSIONS (mm)  LUMEN
  OUTPUT (Lm)
Rated Power (W)
  LD35H-4000-TX-YYY  431 x 316 x136460035
  LD65H-4000-TX-YYY504 x 316 x 136860065
  LD100H-4000-TX-YYY 577 x 316 x 13613,300100
  LD135H-4000-TX-YYY650 x 316 x 13617,900135
  LD165H-4000-TX-YYY723 x 316 x 13621,900165
LD200H-4000-TX-YYY796 x 316 x 13626,600200
LD230H-4000-TX-YYY  869  x 316 x13630,500230

OPTICAL
Light sourceLumileds LEDs
Lumen output 4,494 - 31,488 lm
CRI Ra>70
CCT4000K standard;
  3000K, 5000K & 5700K optional
Luminaire efficacy up to 130 lm/W
Lens Angle TI, TII, TIII, TV
ELECTRICAL
Power consumption (W)35, 65, 100, 135, 165, 200, 230
Operating frequency50/60 Hz
Operating voltage range 100 - 240V AC
Power factor>0.9/240V AC at full load
Maximum current 0.18A, 0.33A, 0.51A, 0.69A, 0.85A, 1.03A, 1.18A/240V
Driver type
MEANWELL
Driver efficiency
>90%
ENVIRONMENTAL
IP ratingIP66
Impact ratingIK10
Weight 5.3 - 10.8kg
Ambient temperature range -40°C to +50°C
Material composition (body)Die-cast aluminium
Material composition (heat sink)
Anodized aluminium
Expected lifespan
>140,000 hours @ L70
CONTROLS - OPTIONAL  Photo electric (PE) cell
 24V DC driver
Installation

STEP 1
Adjust the multi-angle fitter (0,5 15 degree vertical and 0,10, 15 degree horizontal)

Step 2Step 3
To open cover, hold fixture by heatsink
with the light modules facing down.
Remove 2 screws on the cover with a
4mm allen key.
Keep the cover in open position, lead the Input Wires in through the M16 waterproof connector (see A) - Do not tighten.
Slide fixture onto pole (see B) and adjust to
a level position. Once desired position is
achieved, tighten (see 2) mounting bolts (see C)
STEP 4STEP 5
Connect Input Wires into Surge
Protector. Reference 'Electrical
Connections' section for completing
electrical connections.
Close the cover, tighten (2) mounting bolts.

MOUNTING

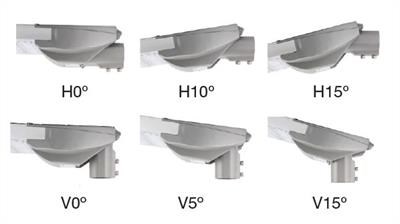

The Zorro comes with a spigot/mounting bracket, which can be adjusted for horizontal or vertical mounting at angles shown below. The bracket is suitable to be mounted on a 60mm diameter pole or arm.

POLE MOUNT ADAPTORS & ACCESSORIES

NamePart no
Pole ReducerZWB-PoleRedReduces pole diameter from 78mm to 60mm. Powder coated Q235 steel 3mm/7.5mm thickness, RAL9022
Cross ArmZWB-CrosArmPerfect for two lights on one pole.
Arm: 500mm x 60mm diameter. Fits 76mm diameter round pole. Powder coated Q235 steel, RAL9022
Connecting AdaptorZWB-ConAdapV2Anodized aluminium, 4mm thickness

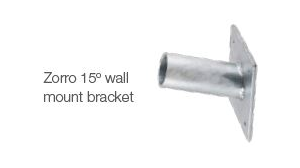

Wall Mounted BracketZWB-15 DegreeWall mounted bracket creating a 15° upward tilt. Galvanised hot dip 3mm/6mm thickness, silver bracket

Download the installation manual
