Skyline LED panel

Double edge lit, low glare edge lit panel

Overview

The Skyline panel is a double edge lit, low glare LED panel that provides an energy efficient retrofit solution to conventional fluorescent luminaires.

The Skyline offers superior performance with the LED panels incorporating a unique light guide plate design, using a high quality PMMA. The prismatic diffuser distributes the light evenly and eliminates glare.

This slimline LED panel is professionally finished with a seemless frame and is suitable for the office or school environment. Designed for recessed, surface mounted or suspended applications.

Dali 2
The Skyline panel is very versatile, it can be fitted with a DALI-2/DSI compliant driver that easily connects to an existing lighting control system.

Product Features

5 year warranty Ceiling recessed Safety Compliance Suspension Mount Surface Mount Low glare Flicker free
Highlights

Key Features

  • Double edge lit, low glare, UGR<19 and flicker free to maximise comfort
  • Extra long LED lifespan  >120,000 hours
  • Enhanced visual comfort via highly transmissive light guide plate
  • Slim profile creates elegant look for surface mount & suspended installations
  • Extruded aluminium housing provides effective heat sinking
  • High colour rendering of CRI: Ra > 80
  • High luminaire efficacy of up to 125 lm/W
  • 4000K & 5000K CCT standard with 3000K & 6000K optional
  • Easy to install with 1.5m flex & plug
  • Mounting options available - Recessed, hanging and surface mounted kits
  • Suitable for standard ceiling grid sizes
  • Optional DALI/DSI or 1-10V drivers for dimming





Applications

Classrooms Government buildings Large retail Libraries Meeting rooms Office areas Univesities & school campuses
Technical Info
  MODEL  RATED POWER(W)   LUMEN
 OUTPUT(lm)
DIMENSIONS(mm)

 WEIGHT(kg)

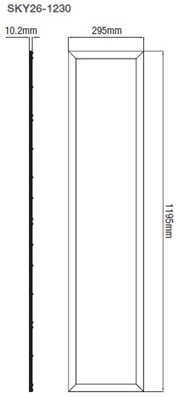

SKY26-123026W3250lm1195 x 2953.7

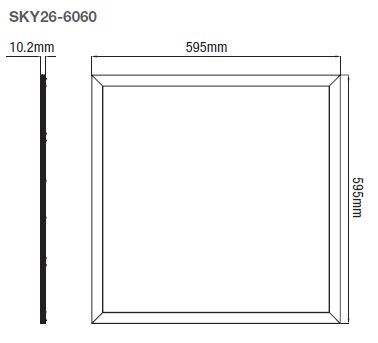

SKY26-606026W3250lm595 x 5953.5

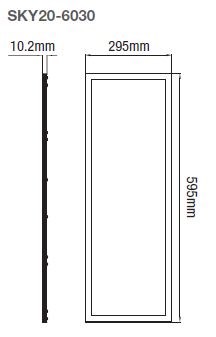

SKY20-603020W2000lm595 x 2951.9

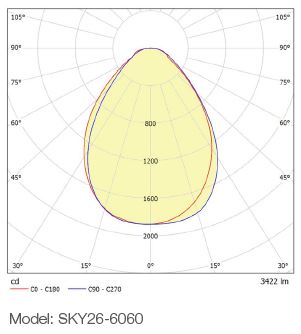

OPTICAL
Lumen output2000-3250 lumens
CRIRa> 80
CCT4000K & 5000K standard, 3000K & 6000K optional
Luminaire efficacyUp to 125 lm/W
Glare rating (UGR)UGR < 19
ELECTRICAL
Power consumption (W)20W - 26W
Operating frequency50Hz
Operating voltage range220 - 240V AC
Power factor>0.95 / 240 V AC
ENVIRONMENTAL
IP ratingIP40
Weight1.9 - 3.7kg
Ambient temperature range-20°C to 40°C
Material Composition (body)White powder-coated aluminium
Material Composition (diffuser)PMMA LGP
Expected Lifespan>120,000 hours @ 70% lumen maintenance
CONTROLS
DimmingDALI/DSI, 1 - 10V
Installation

RECESSED

Remove ceiling tile
Remove ceiling tile

Recess LED panel into ceiling
Ensure panel sits flush with the ceiling
Ensure panel sits flush with the ceiling

SUSPENDED

Stainless steel hanging Kit
Stainless steel hanging Kit
(Part No. HG-001)
Screw and cables
1. Unscrew the ceiling mount from the cable
2. Fix the ceiling mount
3. Screw the cable into the ceiling mount
4. To adjust mounting height, press the toggle
release and pull the wire through
Attach hooks
5. Attach hooks to suspension points on
panel as shown above

OPTIONAL ACCESSORIES

SURFACE MOUNT KIT

  PART NO   SKYLINE MODEL DIMENSIONS
SM-001SKY26-12301216 x 316 x 51mm
SM-002SKY26-6060616 x 616 x 51mm
SM-003SKY26-6030616 x 316 x 51mm

RECESS MOUNT - Recess plaster kit

  PART NO   SKYLINE MODEL DIMENSIONS
R-001SKY26-12301232 x 332 x 31mm
R-002SKY26-6060632 x 616 x 31mm
R-003SKY26-6030632 x 332 x 31mm

Download the installation manual

Related Videos

Our customer road tests the Skyline panel. See the difference

Brad Wyber from Trackie Industries talks about how strobing light in an office environment can affect your health and well-being. Enjoy this road test of the skyline panel vs a competitor. See the difference... The enLighten Skyline panel has no flicker and is low glare UGR<19.

Why not all panels are created equal?

Good office lighting supports health, well-being and performance, so choosing the right lighting has never been more important. Skyline is a low glare double edge lit LED panel - designed to perform and outlast the rest. With a ribbed backing plate and robust aluminium extruded frame. It uses a state of art Light Guide Plate made from PMMA which has the highest optical properties of all plastic materials. This slimline LED panel is suitable for the office or school environment. Designed for recessed, surface mounted or suspended applications.
