Zorro 2
RELIABLE, EFFICIENT AREA LIGHT
The Zorro 2 is a robust and reliable pathway and area light. It features superior optical performance with >150 lumens per watt. This versatile area light offers a wide range of power 15W to 200W and multiple lens options available.
This luminaire has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn.
Get total lighting control with optional Casambi wireless control technology. It is easy to commission, flexible, scalable, and intelligent — giving you smart control over your area lighting system.
Built for reliability, the Zorro 2 area light offers long-lasting performance even in harsh outdoor environments.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Overview
Wide range of power and lens options
Easy to install and maintain - Toolless clipping system
High efficacy >150 lm/W using Lumileds LED
Smart controls optionals: PE Sensor and Casambi wireless control technology
Inbuilt 10kV surge protection
High ingress protection IP66
High impact rating IK10
Available in black and optional in silver
VEU approved
IPART approved

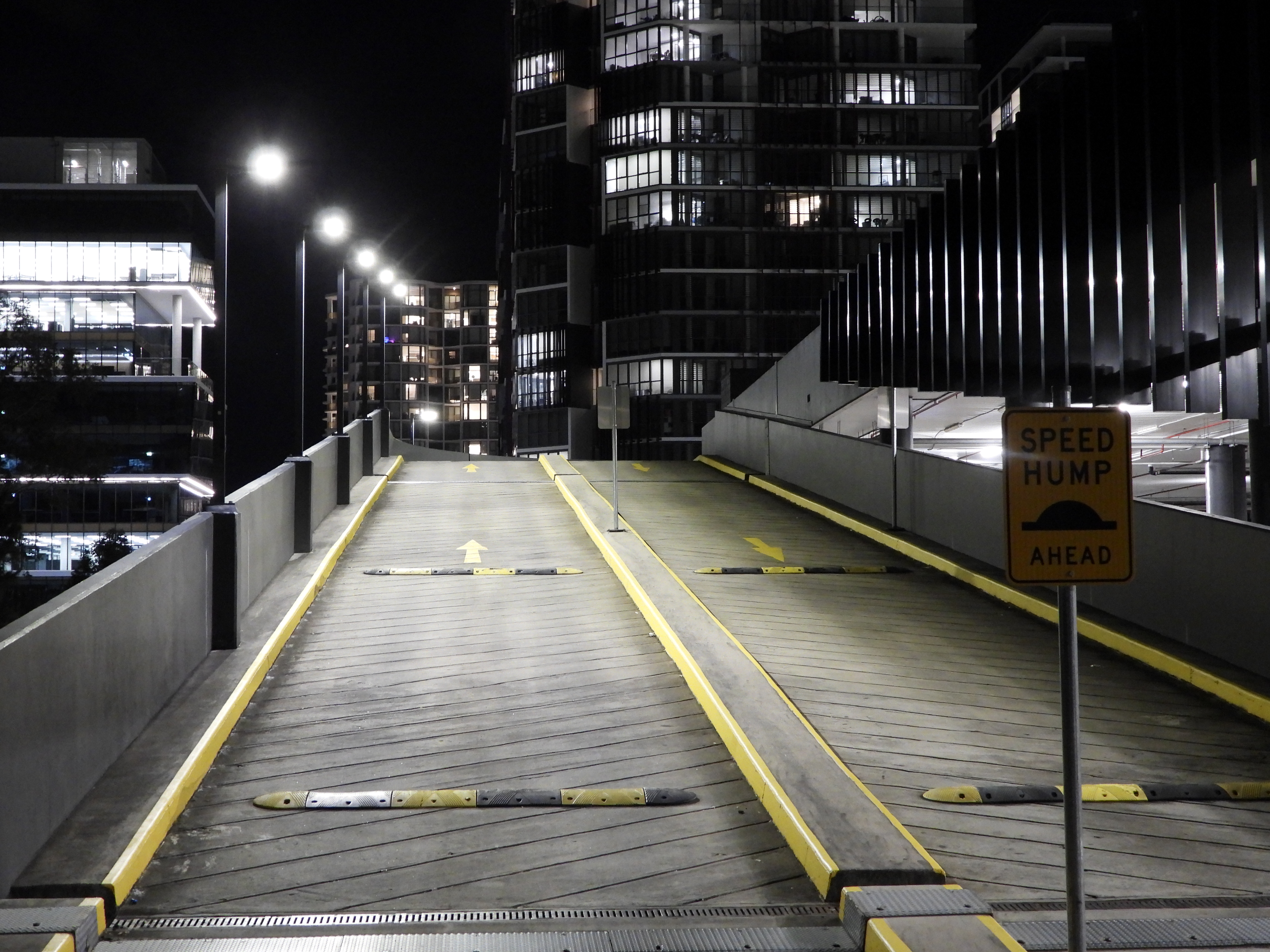

Applications
Zorro 2 MODELS | DIMENSIONS (mm) | LUMEN | RATED POWER (W) | WEIGHT (kg) |
ZAL15S-Tx-4K-B | 610 x 190 x 143 | 2,400 | 15 | 4.7 |
ZAL40S-Tx-4K-B | 610 x 190 x 143 | 6,400 | 40 | 4.7 |
ZAL60S-Tx-4K-B | 610 x 190 x 143 | 8,900 | 60 | 4.7 |
ZAL80M-Tx-4K-B | 660 x 240 x 143 | 12,800 | 80 | 5.8 |
ZAL120M-Tx-4K-B | 660 x 240 x 143 | 18,600 | 120 | 5.8 |
ZAL150L-Tx-4K-B | 762 x 290 x 143 | 23,900 | 150 | 8.1 |
ZAL200L-Tx-4K-B | 762 x 290 x 143 | 29,900 | 200 | 8.1 |
ENVIRONMENTAL |
|
IP rating | IP66 |
Impact rating | IK10 |
Weight | 4.7 - 8.1kg |
Ambient temperature range | -40°C to +50°C |
Material composition (body) | Powder coated die-cast aluminium |
Glass cover | Tempered glass |
Expected lifespan | >110,000 hours @ L70 |
CONTROLS - OPTIONAL | Photo electric (PE) cell |

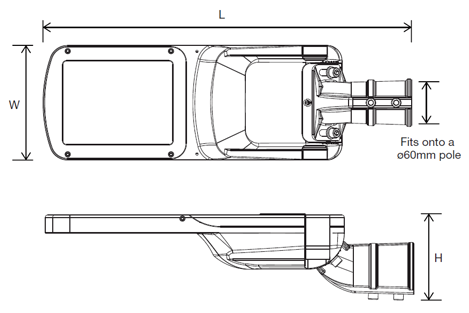

MODEL | DIMENSIONS (mm) |
ZAL15S-Tx-4K-B | 610 x 190 x 143 |
ZAL40S-Tx-4K-B | 610 x 190 x 143 |
ZAL60S-Tx-4K-B | 610 x 190 x 143 |
ZAL80M-Tx-4K-B | 660 x 240 x 143 |
ZAL120M-Tx-4K-B | 660 x 240 x 143 |
ZAL150L-Tx-4K-B | 762 x 290 x 143 |
ZAL200L-Tx-4K-B | 762 x 290 x 143 |
