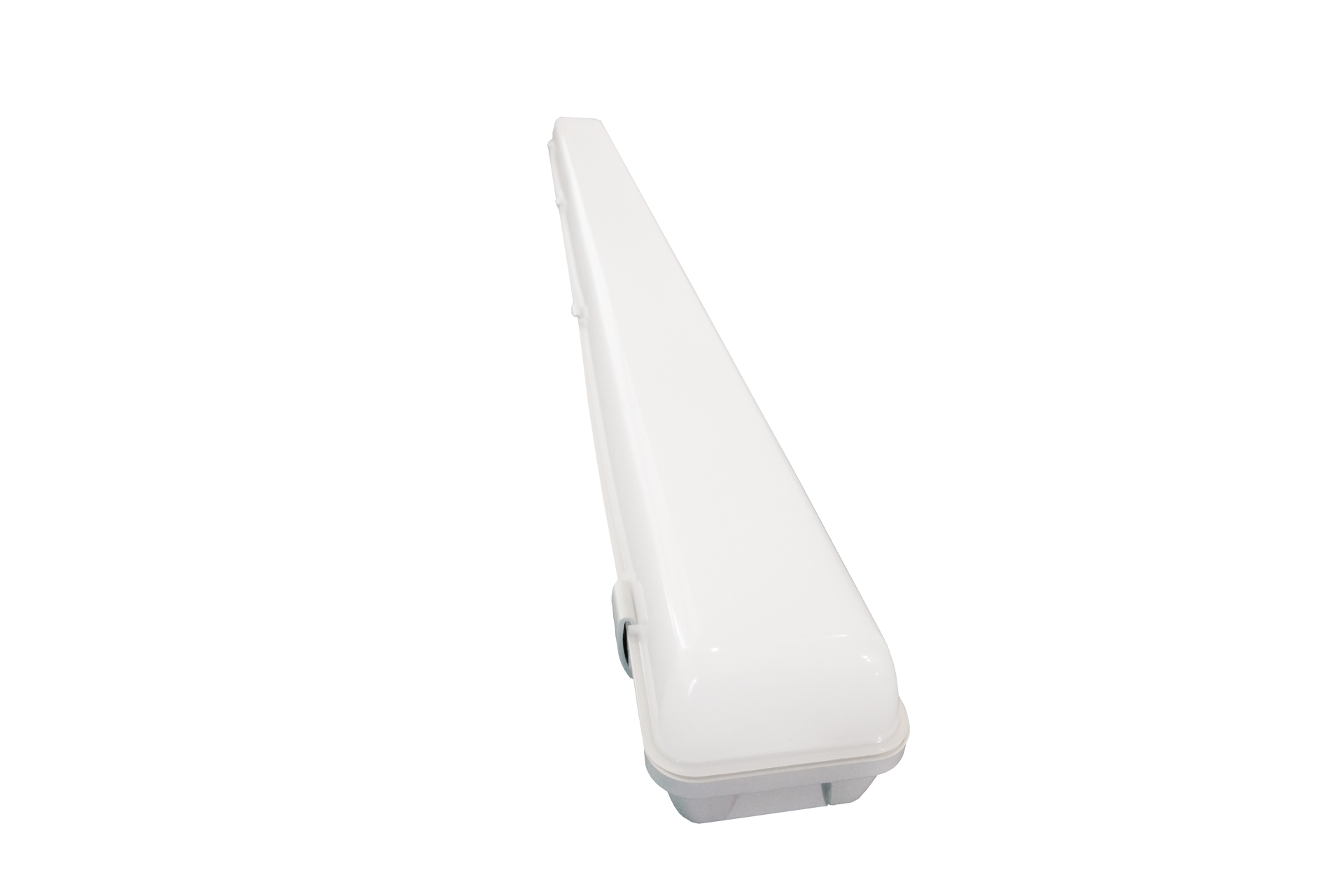

Vico LED Linear Batten Light
Low power option & LiFeP04 battery
The Vico LED batten light offers a quality T8 or T5 fluorescent batten replacement that will last for many years. It uses a series of quality Samsung LED modules that provide industry leading efficacy of up to 147 lumens per watt.
The Vico is a key member of enLighten’s range of intelligent LED lighting solutions for long lit low occupancy spaces, with a range that includes 2ft (600mm) 16W & 4ft (1200mm) 22W/30W.

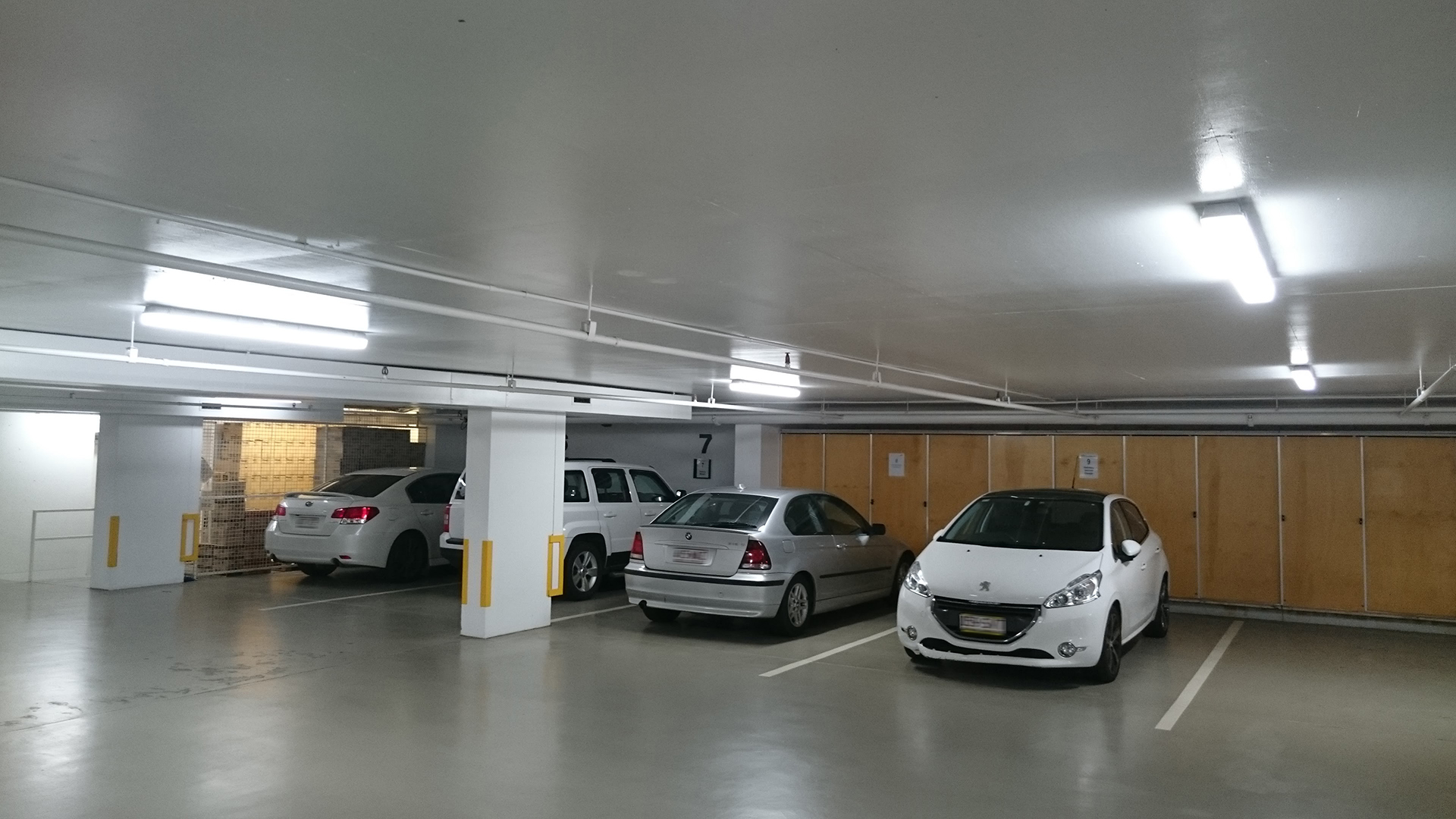

The Vico is available in non emergency and emergency, it is ideal for corridors, fire stairs, store rooms, plant rooms and undercover car parks. See how this is used on construction sites to provide reliable and efficient lighting in temporary tunnel construction zones as part of our enConnect system.
The Vico batten can be fitted with a DALI-2 compliant driver that easily connects to an existing lighting control system. DALI is not available in emergency models.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key Features
Emergency and non-emergency options available
Microwave sensor option to maximise energy savings

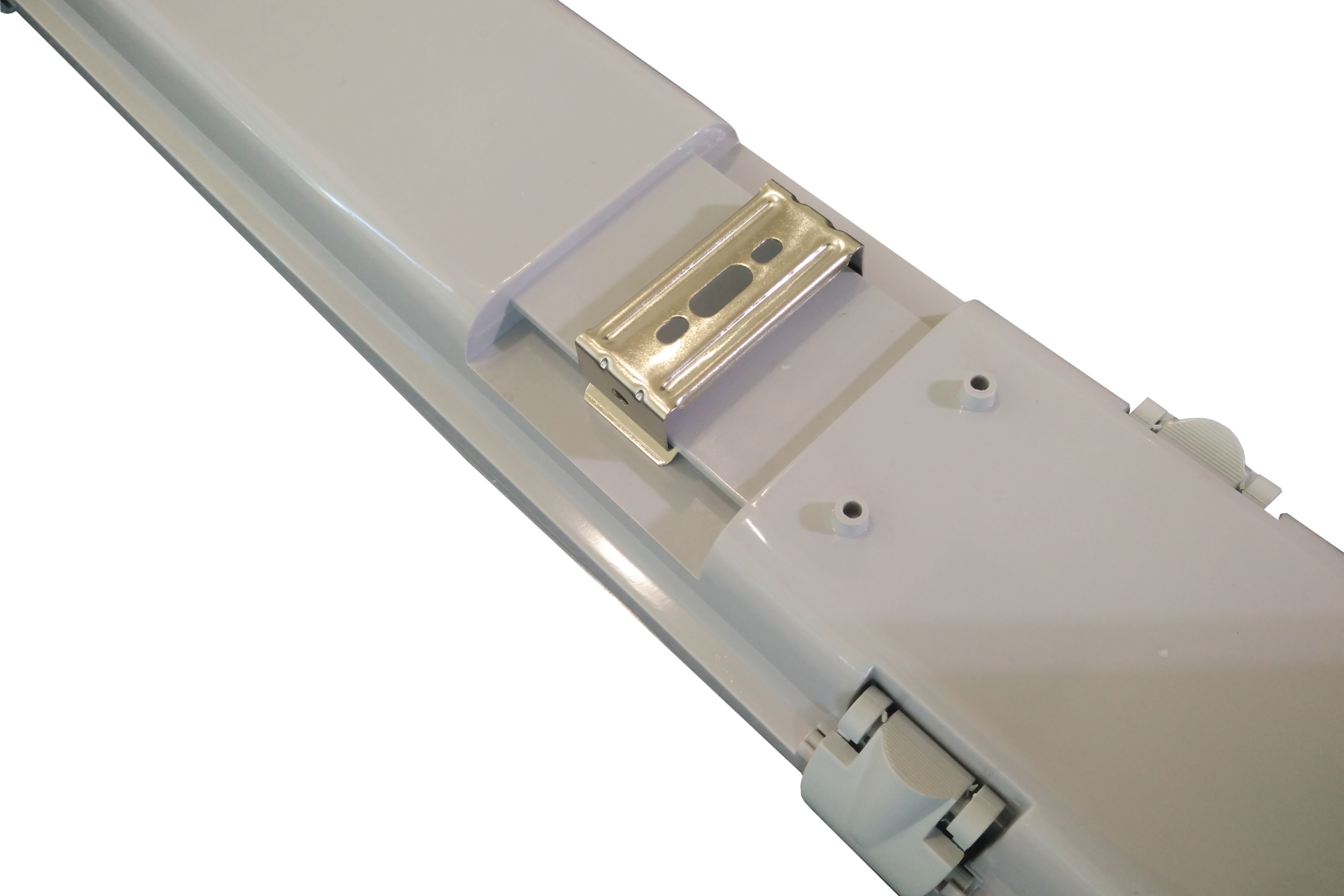

Ease of installation with screwless gear tray and large terminal blocks
2ft and 4ft options available
Environmentally friendly and stable LiFePO4 battery
Control options – DALI-2 (non-emergency only)
IP66 ingress protection
IK10 highest level of impact resistance
Expected life over 160,000 hours at L70 delivered by high quality LEDs
High luminaire efficacy of up to 147 lm/W
5 year warranty (2 years for battery)
Applications
PRODUCT RANGE | Description | Lumen output (lm) | Rated Power (W) | Rated Power (W) |
VB06-8xx | 600mm 16W | 2215 | 16W | N/A |
VB06S-8xx | 600mm 16W with MW sensor | 2215 | 16W | N/A |
VB06E-8xx | 600mm 16W emergency | 2215 | 16W | 5W |
VB06ES-8xx | 600mm 16W emergency with MW sensor | 2215 | 16W | 5W |
VB06-8xx-D | 600mm 16W with DALI-2 driver | 2215 | 16W | N/A |
VB12LP-8xx | 1200mm 22W | 3290 | 22W | N/A |
VB12SLP-8xx | 1200mm 22W with MW sensor | 3290 | 22W | N/A |
VB12ESLP-8xx | 1200mm 22W emergency with MW sensor | 3290 | 22W | 6W |
VB12LP-8xx-D | 1200mm 22W with DALI-2 driver | 3290 | 22W | N/A |
VB12-8xx | 1200mm 30W | 4220 | 30W | N/A |
VB12S-8xx | 1200mm 30W with MW sensor | 4220 | 30W | N/A |
VB12E-8xx | 1200mm 30W emergency | 4220 | 30W | 7W |
VB12ES-8xx | 1200mm 30W emergency with MW sensor | 4220 | 30W | 7W |
VB12-8xx-D | 1200mm 30W with DALI-2 driver | 4220 | 30W | N/A |
xx stands for CCT – use 40 for 4000K, 50 for 5000K
Please note that due to upgrades in our batten lights we have changed our product codes. Download the document to discover the new product code translation.
OPTICAL |
|
Light source | SMD LED |
Lumen output | 1750 lumen |
CRI | Ra>80 |
ELECTRICAL |
|
Power consumption | 16W-30W full light output |
Operating frequency | 50/60 Hz |
Operating voltage range | 220 -240 V AC |
EMERGENCY LIGHT |
|
Battery type | 6.4V 3300 mAh LiFePO4 |
Discharge time | 90 minutes |
ENVIRONMENTAL |
|
IP rating | IP66 |
Impact rating | IK10 |
Weight | 600mm - 1.8kg, 1200mm - 2.9kg |
Ambient temperature range | -25°C to +40°C(non emergency models) |
CONTROLS - OPTIONAL |
|
Microwave sensor range | 360 deg; max 8m - adjustable |
Microwave sensor operating interval | 5 sec to 10 min |

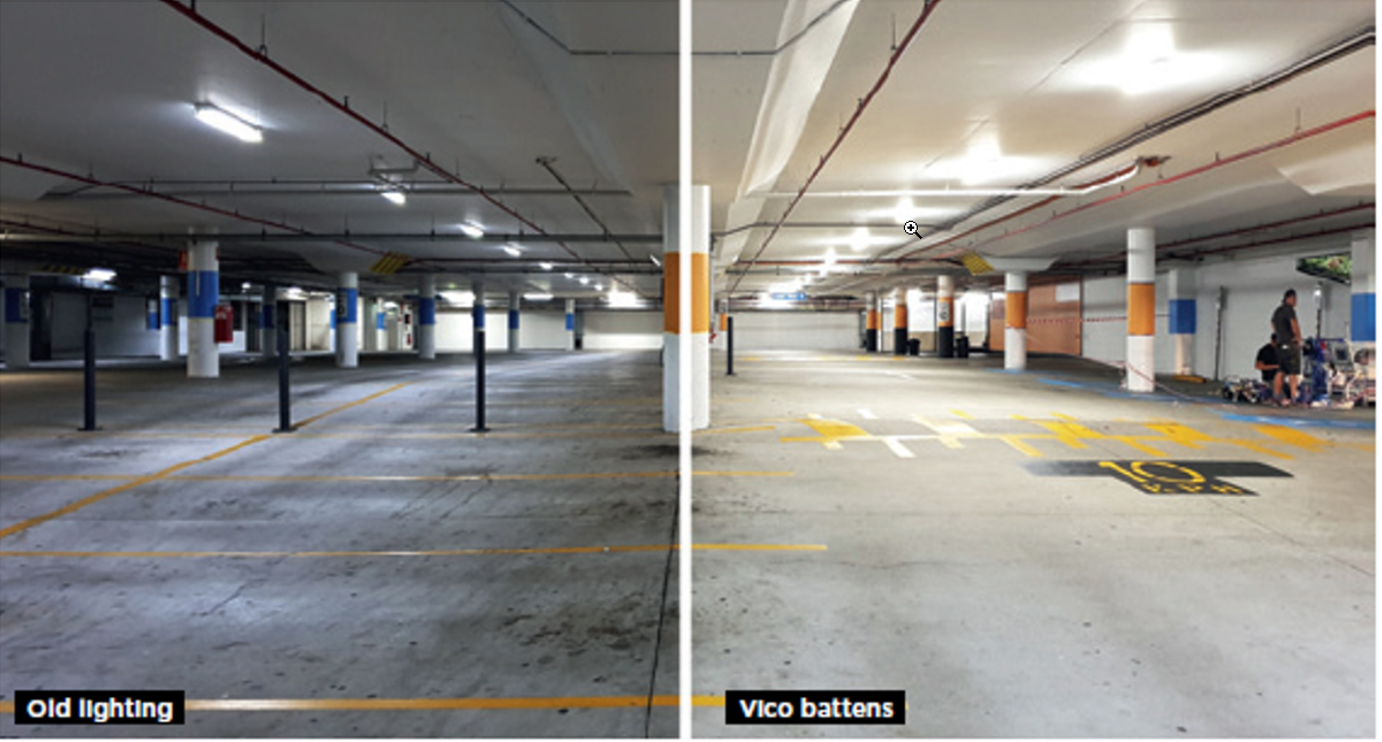

Brad Wyber, Trackie Industries
The Hills Super Centre, Castle Hill
‘We often forget the hidden costs of lighting, such as the cost per hour of life expectancy. Operating life can dramatically impact your maintenance costs and overall bottom line.
I like the Vico batten as it has an impressive operating life of 160,000 hours @L70, it uses an environmentally friendly LiFePO4 battery and quality Samsung LEDs.
I was able to achieve $22,000 a year savings in energy and reduced maintenance costs. I am delighted at the results’.
Darren Hynd, Jones Lang LaSalle

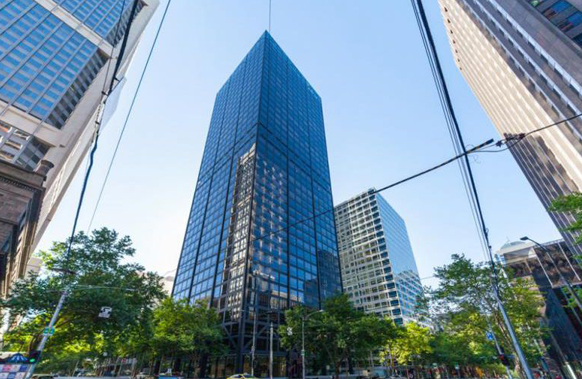

140 Williams St, Melbourne
"It is important that we always look at ways to improve the safety while keeping in mind improving sustainable energy efficient practices when making improvements to our properties. enLighten's Vico batten has not only improved light output but it has dramatically reduced energy spend within the fire stairs. These real savings add up."

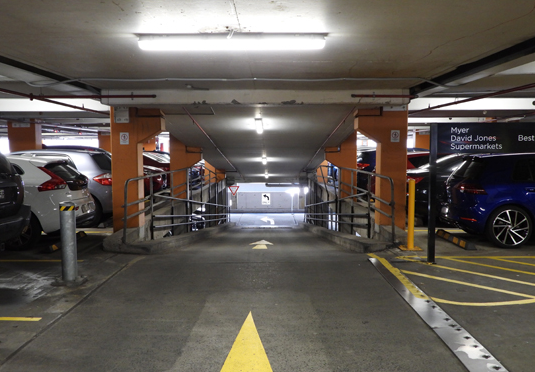

Andrew Caswell, Nutbrook Engineering Group
Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens
‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.
I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’

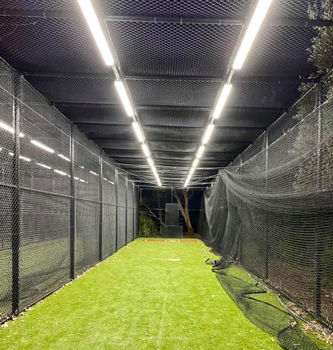

Steve Vescio, Electrospark Electrical Services
Pittwater Baseball batting cage lighting revamp
‘Every now and then you complete a job where you stand back and feel super proud of what you have achieved - Completing the batting cage lighting for the Pittwater Baseball Club is one of those moments. Doing something for such an awesome club where both my boys and I play is very rewarding.

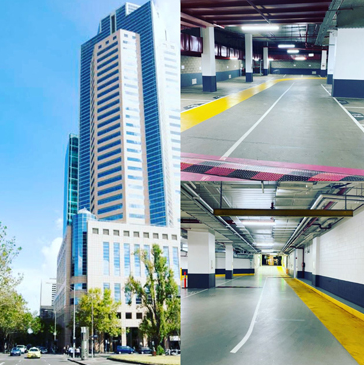

Elecflight
2 Lonsdale St, Melbourne
Elecflight recently completed the carpark lighting up grade at 2 Lonsdale Street@casseldenmelbourne - A Grade office tower with 39 levels within the prestigious and historically rich Parliamentary precinct of the CBD.
They installed Vico, Chamaeleon III and a car park entry system. The results:
* Floor space of the premises (m2): 550
* Energy & Maintenance savings $25,034 per annum
* Energy Reduction of 53.89%
* CO2 Reduction 112 Tonnes Per annum
* BCA compliant car park entry to AS1680.
CONGRATS!

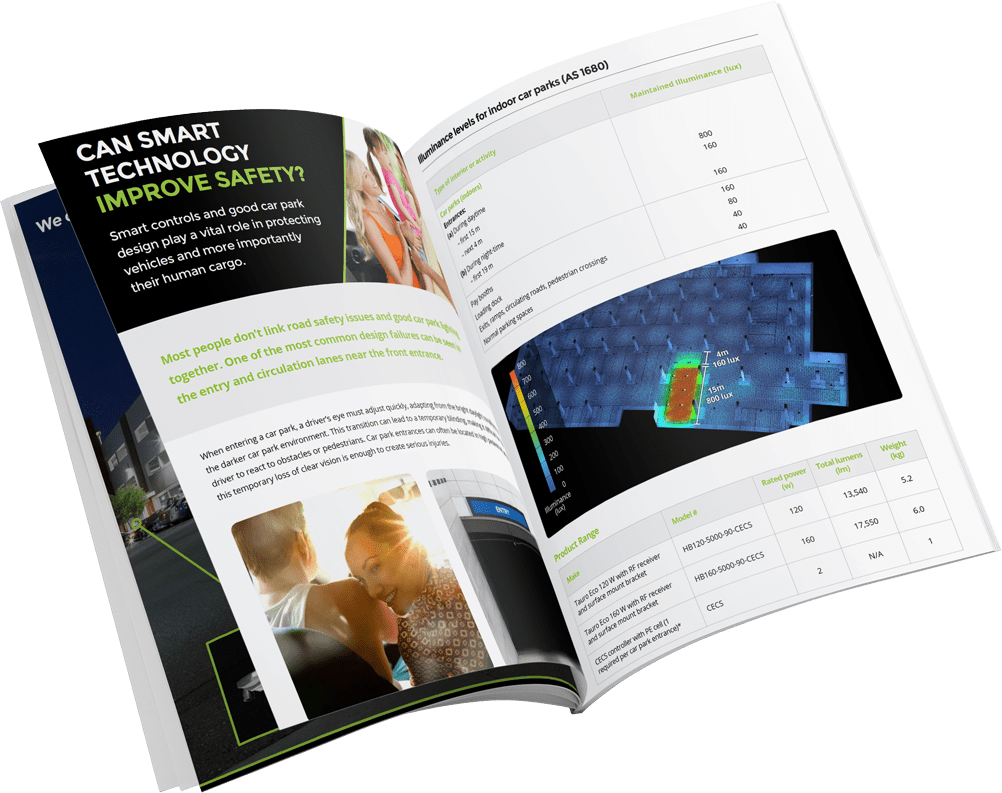

Download our Car park entrance lighting guide
