Noctua - IN STOCK NOW!

Directional flood light with superior illumination

Overview

NEW DIRECTIONAL FLOOD LIGHT
The Noctua is a high quality commercial LED flood light that has been designed to maximise area illumination and light uniformity.

Designed with an asymmetrical forward throwing lens, the Noctua provides 30% better illumination uniformity and saves up to 40W when compared against common LED flood lights. The lensed optics are engineered to achieve significant glare reduction giving you light where you need it.

It is a robust and reliable product with high ingress protection and it has been IPART approved. With versatile mounting options the Noctua can easily be wall or ground mounted using the mounting bracket or can be pole mounted, using the optional pole mounting adaptor.


The Noctua flood light can be fitted with a DALI compliant driver that easily connects to an existing lighting control system.

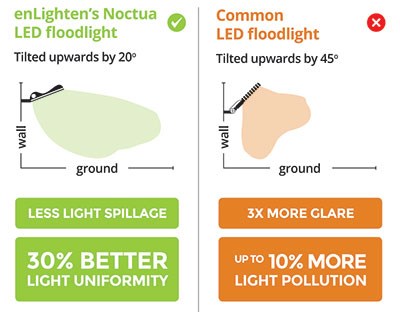

BENEFITS OF A FORWARD THROWING LEN





Product Features

Highlights

Key Features

  • Low glare, directional flood light with superior illumination
  • Achieve 30% better illumination uniformity using an asymmetrical forward throwing len
  • Versatile mounting options suitable for pole, wall or ground mounting
  • Easy install using mount brackets or adaptors
  • Dimming options include 1-10V, PWM and DALI
  • Corrosion resistant powder coated body
  • IP66, high ingress protection for dust and withstands significant water pressure
  • IK08 impact resistance
  • Respirator valve achieves zero steam build up internally




Applications

Technical Info
  MODEL   DIMENSIONS (mm)   LUMEN
  OUTPUT (Lm)
Rated Power (W)
  NFL40-40K-FTL  308 x 82.9 x 359.3  5,740   40
  NFL60-40K-FTL  308 x 82.9 x 359.3  8,440   60
  NFL80-40K-FTL  308 x 82.9 x 359.3  10,790   80
  NFL100-40K-FTL  366 x 82.9 x 413.2  13,970  100
  NFL120-40K-FTL  366 x 82.9 x 413.2  16,240  120
  NFL150-40K-FTL  366 x 82.9 x 413.2  20,240  150
  NFL180-40K-FTL
 462 x 87.9 x 452.3  24,390  180
  NFL200-40K-FTL  462 x 87.9 x 452.3  26,430  200
  NFL240-40K-FTL     462 x 87.9 x 452.3  31,670  240












  OPTICAL
  Light Source   Nichia LEDs
  Lumen output   5,740 – 31,670 lumens
  CRI   Ra>70
  CCT   4000K standard; 3000K & 5000K optional
  Luminaire efficacy   Up to 139 lm/W
  Beam angle  Asymmetric forward throw








  ELECTRICAL
  Power Consumption  40W - 240W
  Operating frequency  50Hz
  Operating voltage range  220-240V AC
  Power factor  >0.90/240V AC
  Driver   Sosen, DALI compliant driver (optional)
  Dimming controls (optional)  1-10V, PMW, DALI dimming








  ENVIRONMENTAL
  IP rating   IP66
  Impact rating   IK08
  Weight   4.3 - 8.9 kg
  Ambient temperature rating   -30°C to +50°C
  Material Composition (body)   Aluminum Alloy
  Material Composition (diffuser)  Polycarbonate lens and tempered glass
  Expected lifespan   >130,000 hours at L70




Dimensions


Mounting bracket







Mounting bracket







Mounting bracket





Installation

  INSTALLATION
  1. Switch mains power off
  2. Secure mounting bracket to surface   ensuring a fixing method adequate for the
  fitting weight (see fig. 1 & 2)
  3. Terminate the mains cable into an junction box with a suitable IP rating
  4. Switch mains power on.
  5. Loosen adjustment knobs and adjust angle of the luminaire (see fig. 3).
  Tighten adjustment knobs

  The Noctua works best if tilted between 0 degrees and 20 degrees


  ACCESSORIES
  Pole mount adaptors

  Three sizes of powder coated pole mounted adaptors are available:

  • NFL-PM42 for 42mm OD round poles
  • NFL-PM60 for 60mm OD round poles
  • NFL-PM76 for 76mm OD round poles



  Two sizes of powder coated adaptors for mounting one or two Noctua lights on pole

  • NFL-PC40-80 for Noctua 40W-80W, fits 40mm-100mm dia round pole
  • NFL-PC100-240 for Noctua 100W-240W, fits 40mm-150mm dia round pole
