Tauro Black HT

Ultra durable, high temperature high bay

Perfect where reliability is critical

Product enquiry


Designed for illuminating large interior spaces where reliability is critical.

Low maintenance high bay that operates well in high temperature environments, it comes with a massive 10 year warranty.

A wide range of optics make this light suitable for both open spaces and racking environments. These optics will ensure good uniformity and vertical illumination creating a safe work environment.

Product Downloads

Click the below links to download guides, datasheets and more.

Secure Zone Documents

Login to view the latest IES files, spacing guides, installation guides and frequently asked questions.

suspension mount 1 IP65 Rating 1 IK10 Rating 1

Optional Features

Daylight Sensor Microwave Sensor Surface Mount

Key Features

• Controls-ready programmable LED driver with ultra-long lifetime
• High temperature rating - designed to operate at 60°C
• Industry leading efficacy of up to 165 lm/w using Nichia LEDs
• Up to 40% more efficient when compared to standard LED highbays.
• Variety of optics available - symmetric & asymmetric
• Wide range of sizes 90W-240W to cover low to high ceilings
• Optional controls through the high temperature rated daylight harvesting & motion sensor controller
• Durable and robust with IP65 & IK10
• Hanging kits included for easy mounting
• 10 year warranty


Large retail Loading docs Manufacturing Warehousing
Technical Info
SIZE LxWxH (mm) WEIGHT (kg)
TB90HT 14,100 90 718 x 137 x 102 4.7
TB120HT 18,700 120 948 x 137 x 102 5.7
TB150HT 23,000 150 1178 x 137 x 102 6.9
TB180HT 27,700 180 718 x 275 x 102 8.5
TB240HT 37,100 240 950 x 299 x 102 10.3

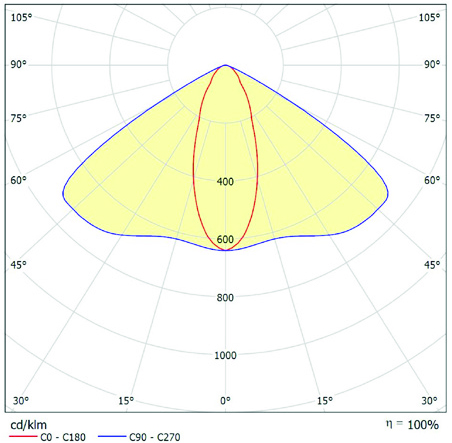

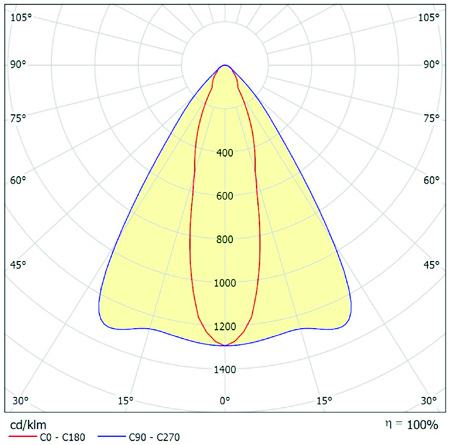

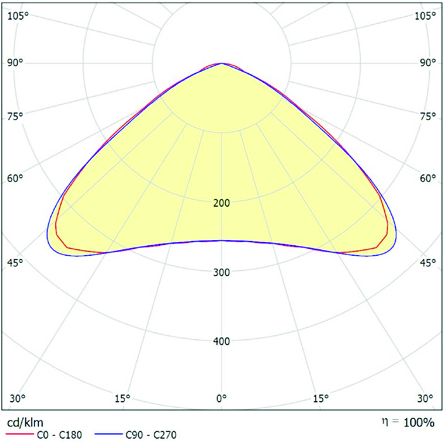

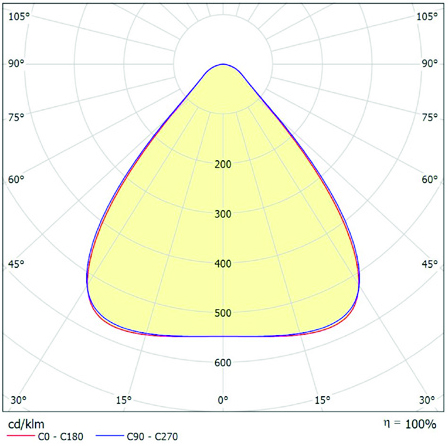

57 AR1, 57 AR2, 57 AR3, 57 S1, 57 S2

Light Source Nichia LEDs
Lumen output 14,100 – 38,550 lumens
CRI Ra>70 standard; Ra>80 optional
CCT 5000K standard, 4000K optional
Luminaire efficacy 151-165 lm/W
Beam angle Symmetrical & asymmetrical racking


Power Consumption 90 - 240W
Operating frequency 50 Hz
Operating voltage range 90 - 305V AC
Power Factor >>0.9/240V AC
Driver Inventronics EUD-DVL
Surge Protection 6kV line-line, 10kV line-earth (driver), 1kV (sensor)
IP rating IP65
Impact rating IK10
Net Weight 4.7, 5.7, 6.9, 8.5, 10.3 kg (+/- 0.3kg)
Ambient temperature rating -30°C to +60°C
Material Composition (body) Aluminum Alloy
Material Composition (lens) Polycarbonate
Expected Lifespan >130,000 hours at L70

The Tauro Black highbay has a smart control sensors for daylight harvesting and motion detection. The highbay sensor is an LED lighting control device that can detect motion and ambient light when mounted up to a maximum height of 12m. Gain up to 40% increase in energy savings using sensors.


Design features:

  • Wide detection range of up to 16m diameter
  • 2 & 3 Step dimming offers full, standby & off modes
  • Daylight harvesting function can adjust light output depending on the amount of natural light available.
  • Maximum mounting height of 12m suitable for warehouse use
  • Setting are adjustable via a remote control commissioning tool.

Operating modes of the high bay sensor:

  • Motion detection and daylight harvesting
  • Motion detection only (no daylight harvesting)
  • Daylight harvesting only (no motion detection)

The smart control sensor can achieve up to 3-step dimming functions between high light output (100%), stand-by dimming (10-50%) and off. An integrated photo electric (PE) cell detects ambient light levels and will adjust the light output according to preset lux thresholds.

The intelligent lux level auto-commissioning function calibrates the target lux level automatically which simplifies the commissioning process.

TB90HT 718 x 137 x 102
TB120HT 948 x 137 x 102
TB150HT 1178 x 137 x 102
TB180HT 718 x 275 x 102
TB240HT 950 x 299 x 102
