Zorro
ROBUST AND RELIABLE Street/area/food light
The Zorro area light offers superior performance and reliability. It is a high efficacy exterior car park and external walkway lighting solution. This light has an integrated PE cell option which allows the fitting to automatically switch on at dusk and off at dawn. This versatile light comes in a wide range of power and lens options to suit your application.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Key Features
Sleek low profile design available in silver or black
Modular design offering a broad range of lumen outputs and light distribution
High performance Lumileds LUXEON TX LEDs

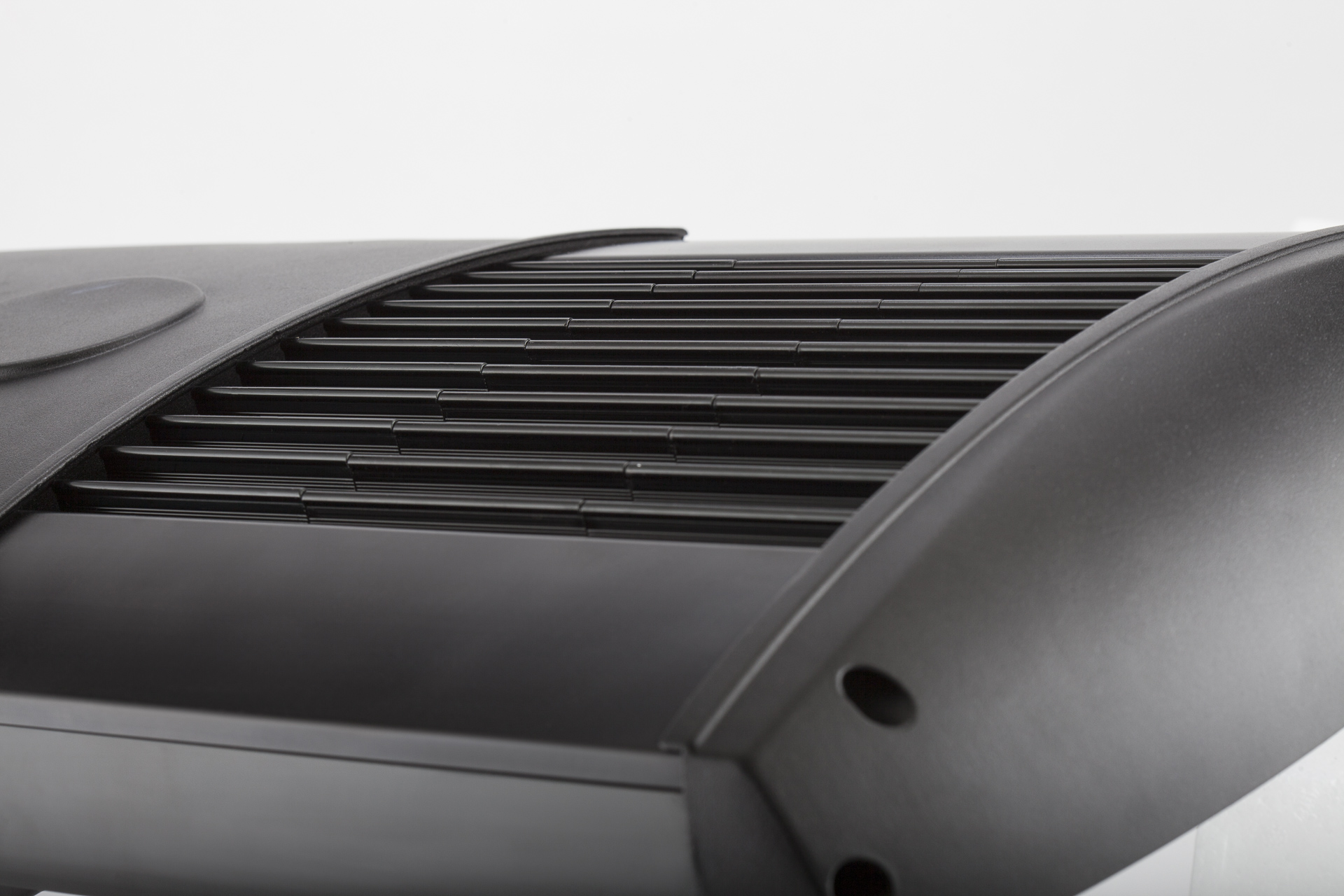

Breather gaps between modules increase heat transfer to maximise LED performance

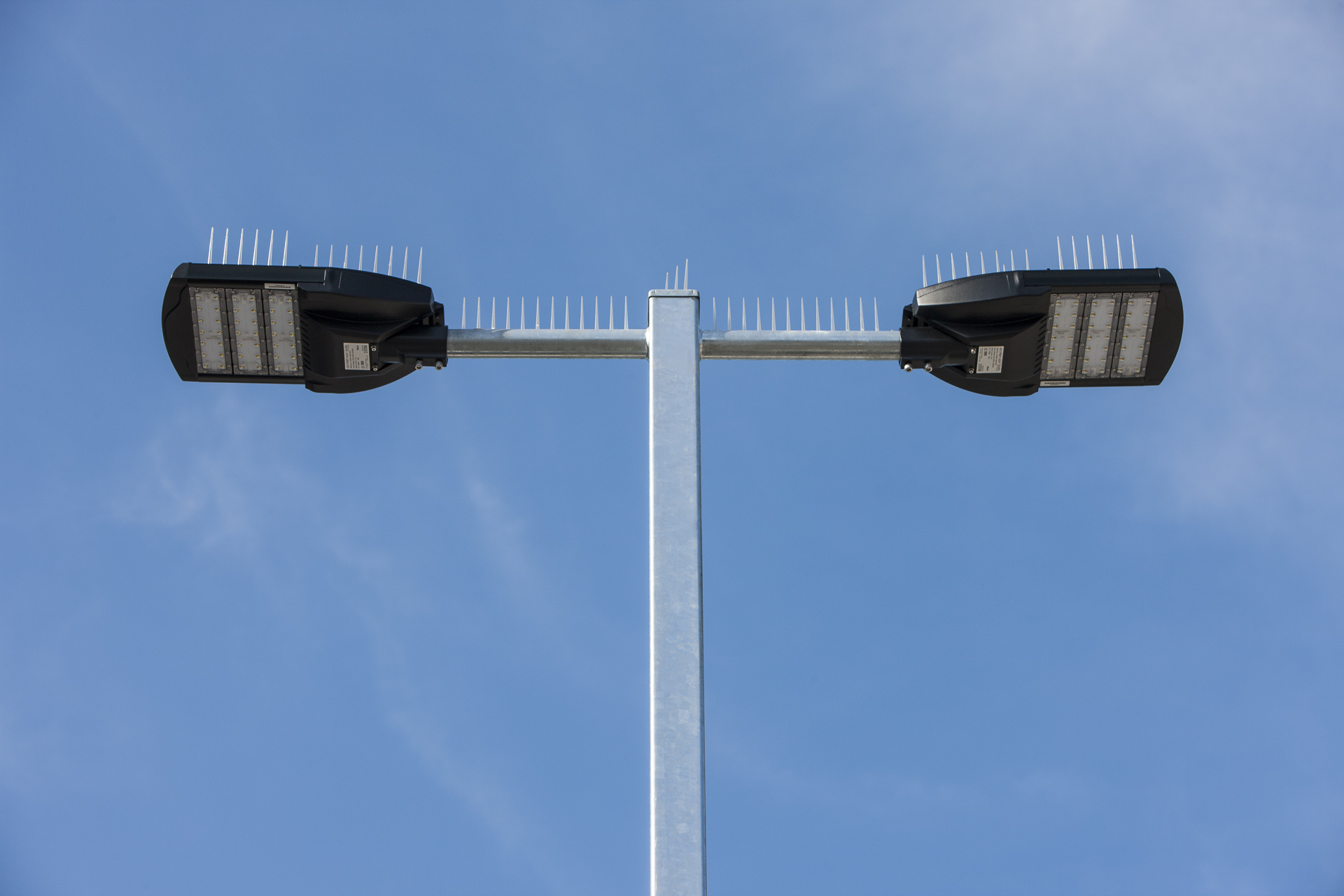

Easy fit universal mountings and connectors – ability to fit square and round poles

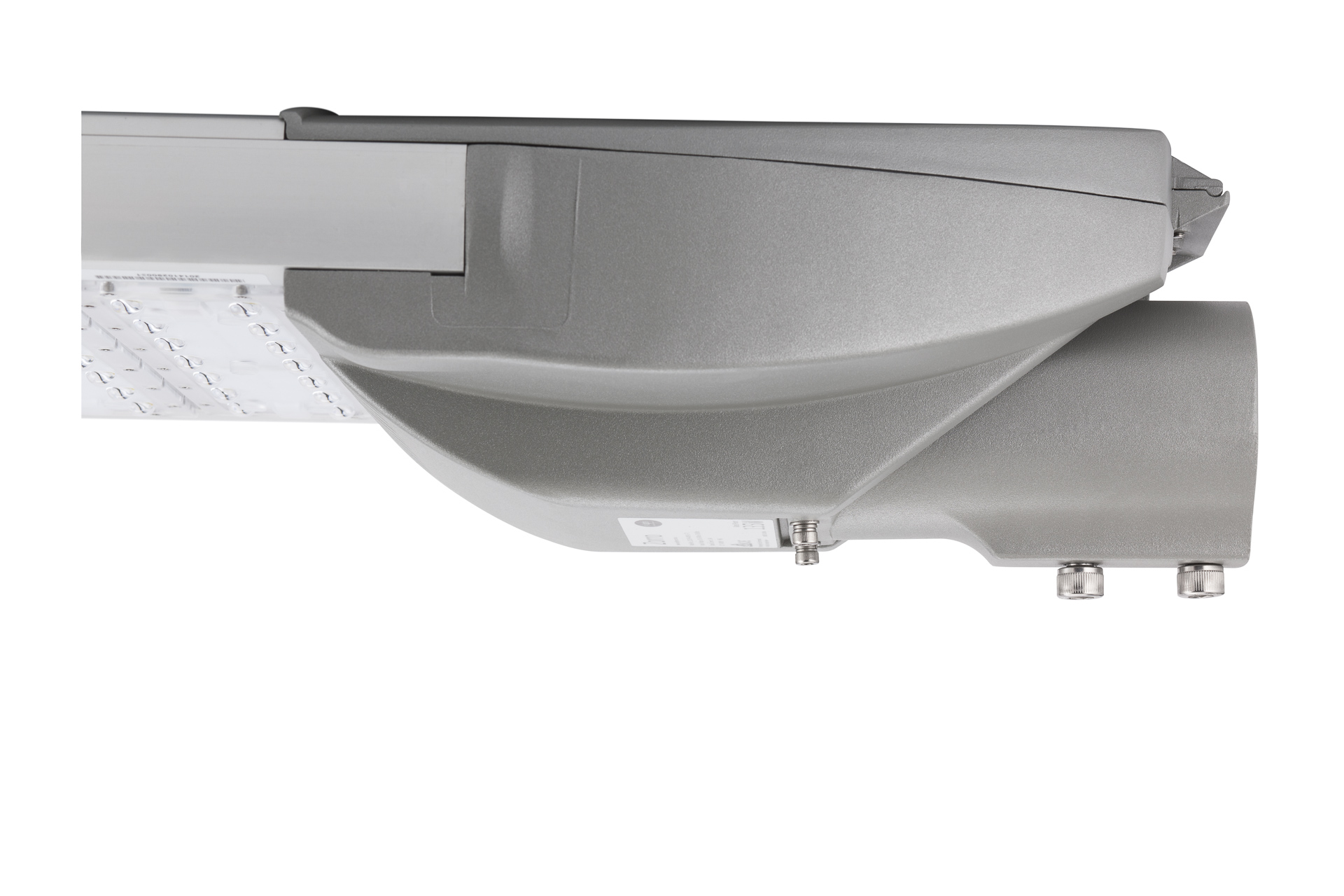

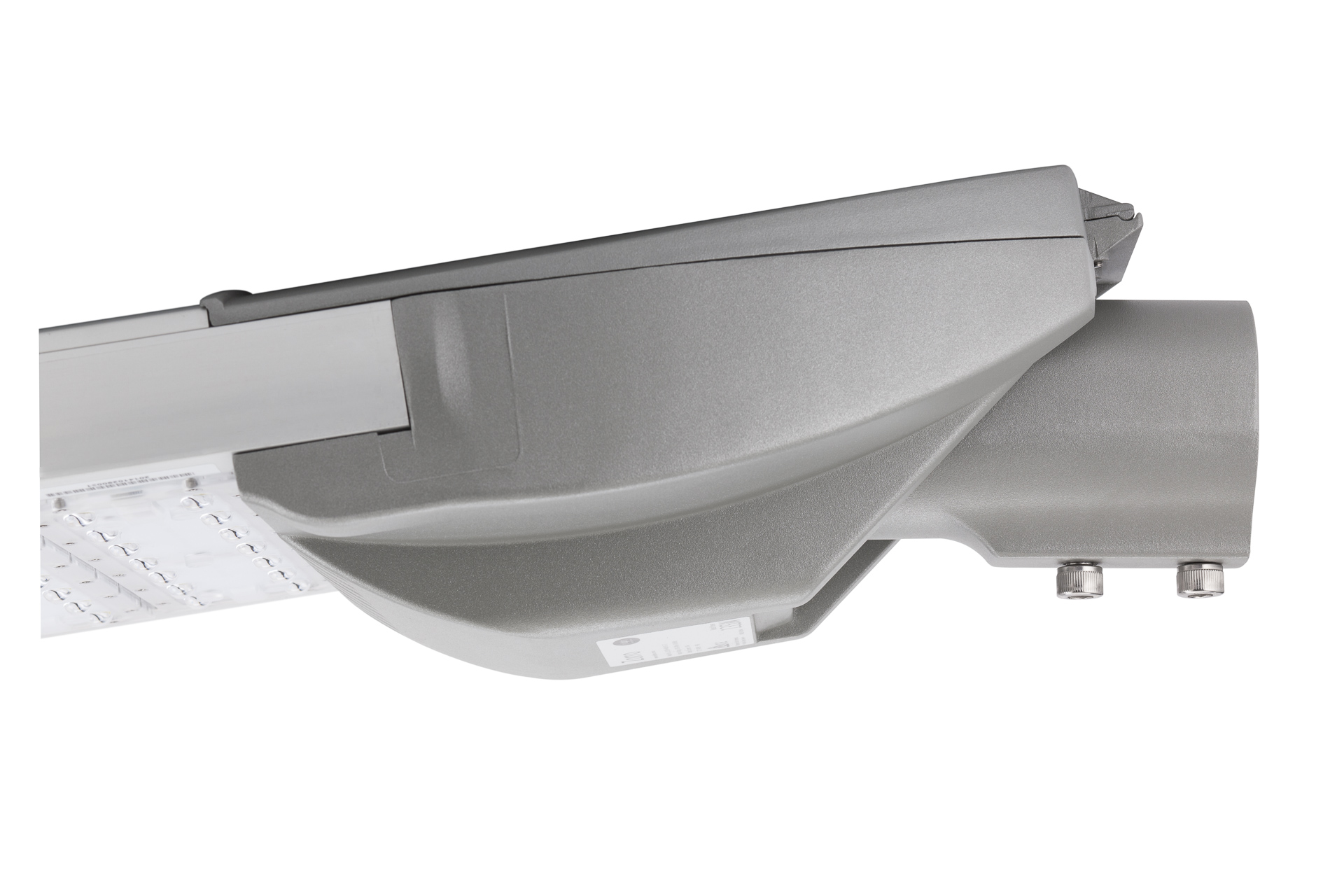

Adjustable spigot offers horizontal and vertical installation
Integrated PE option available to switch off during the daylight hours
Optional low voltage DC drivers for solar/battery powered interface
IPART approved
Applications

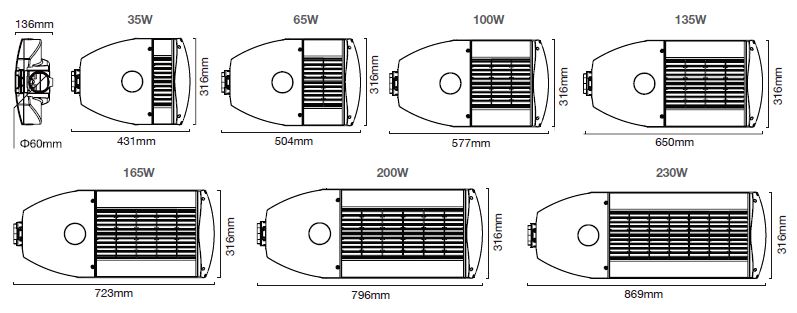

MODEL | DIMENSIONS (mm) | LUMEN | Rated Power (W) |
LD35H-4000-TX-YYY | 431 x 316 x136 | 4600 | 35 |
LD65H-4000-TX-YYY | 504 x 316 x 136 | 8600 | 65 |
LD100H-4000-TX-YYY | 577 x 316 x 136 | 13,300 | 100 |
LD135H-4000-TX-YYY | 650 x 316 x 136 | 17,900 | 135 |
LD165H-4000-TX-YYY | 723 x 316 x 136 | 21,900 | 165 |
LD200H-4000-TX-YYY | 796 x 316 x 136 | 26,600 | 200 |
LD230H-4000-TX-YYY | 869 x 316 x136 | 30,500 | 230 |
OPTICAL |
|
Light source | Lumileds LEDs |
Lumen output | 4,494 - 31,488 lm |
CCT | 4000K standard; |
Luminaire efficacy | up to 130 lm/W |

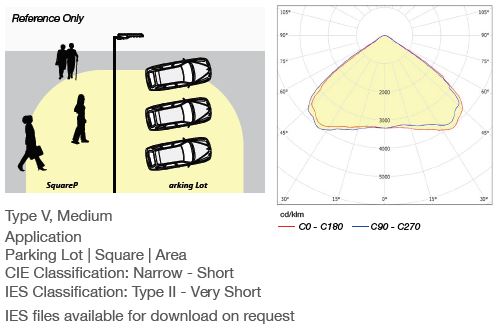

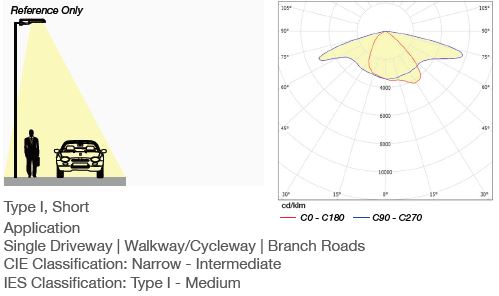

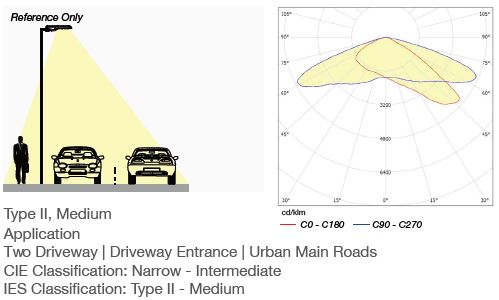

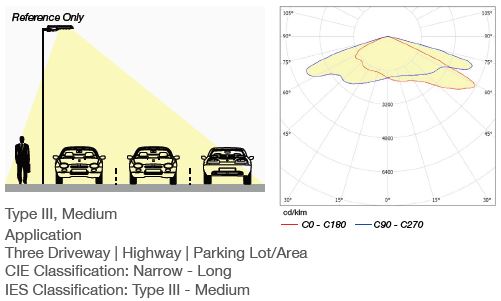

Lens Angle | TI, TII, TIII, TV |
ELECTRICAL |
|
Power consumption (W) | 35, 65, 100, 135, 165, 200, 230 |
Operating frequency | 50/60 Hz |
Operating voltage range | 100 - 240V AC |
Power factor | >0.9/240V AC at full load |
Maximum current | 0.18A, 0.33A, 0.51A, 0.69A, 0.85A, 1.03A, 1.18A/240V |
Driver type | MEANWELL |
Driver efficiency | >90% |
ENVIRONMENTAL |
|
IP rating | IP66 |
Impact rating | IK10 |
Weight | 5.3 - 10.8kg |
Ambient temperature range | -40°C to +50°C |
Material composition (body) | Die-cast aluminium |
Material composition (heat sink) | Anodized aluminium |
Expected lifespan | >140,000 hours @ L70 |
CONTROLS - OPTIONAL | Photo electric (PE) cell |
Andrew Caswell, Nutbrook Engineering Group

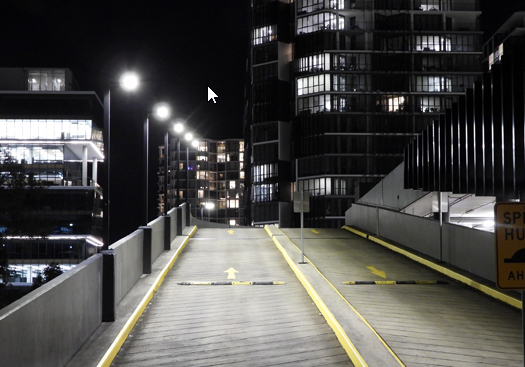

Macquarie Centre car park
Installed on this site were:
Zorro area light and the Noctua non-glare floodlights and Vico battens
‘Providing quality, uniform light in the car park has helped to transform the Macquarie Centre shopping experience. Choosing enLighten’s luminaires for the multi-level car park and loading docks has helped us meet and exceed our design criteria.
I was very impressed by the energy saving... according to the dataloggers installed onsite we are experiencing a 73% reduction...the savings will certainly benefit the centre for years to come.’
Asher Christophers, Director at Austep Lighting

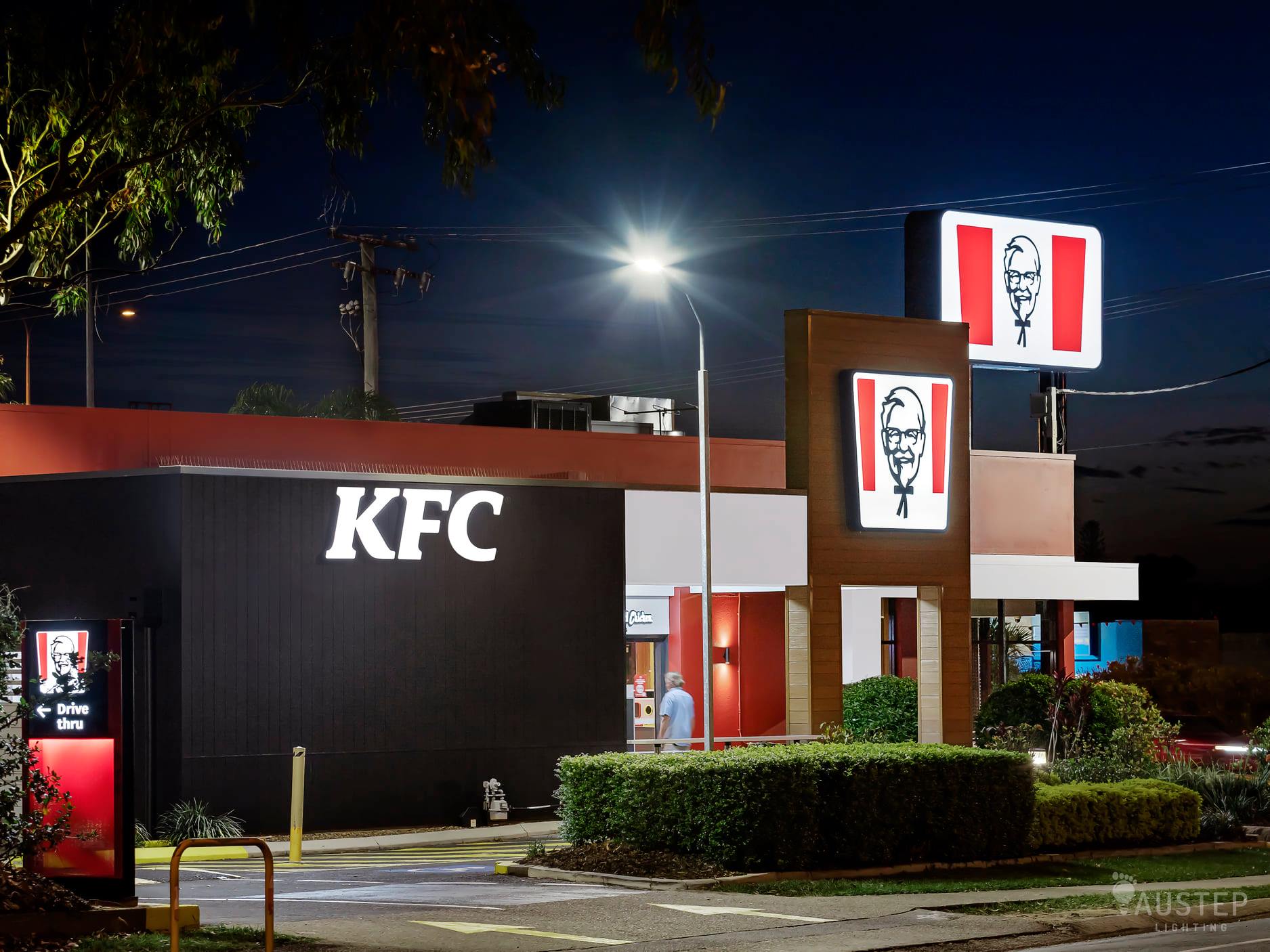

Outdoor lighting upgrade for KFC stores in NSW
‘I wouldn’t choose anything but the Zorro, the longevity and efficiency of the fittings have really helped to deliver on energy savings and sustainability initiatives for our client.
The low-glare optics mean the KFC stores are looking great and we are very pleased with the result.’

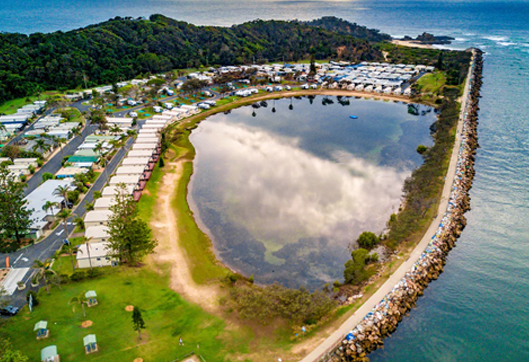

Matthew Young, General Manager Tourism, Ingenia Communities
Ingenia White Albatros, Nambucca Heads
32 x Zorro: Area light
75 Vico: BBQ/recreation and amenity light
Ingenia South West Rocks
17 x Zorro: Area lights
60 x Vico: BBQ/recreation and amenity light
2 x Noctua: Floodlights
‘The recent LED lighting upgrades undertaken across Ingenia Holidays parks in QLD and NSW will not only help the Group reduce carbon emissions but also make the parks safer and more inviting for our guests.’
