Yindi
Robust, low glare architectural design with selectable power & CCT
Modern design
The updated Yindi has been engineered to deliver greater versatility across a wide range of outdoor applications, from pathways and parks to campuses and commercial entrances. A mounting adaptor is now included as standard, allowing direct installation on both 60mm and 76mm poles without the need for additional components, simplifying installation and reducing the number of parts required on site.
With two models covering the range from 18W - 100W and selectable colour temperature (3000K/4000K), output and ambience can be configured directly on site to suit the requirements of each space. This single, adaptable fitting replaces multiple fixed variants, giving specifiers and contractors the flexibility to meet changing project requirements while reducing lead times, stock holding and product selection without compromising on performance or appearance.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Key Features
Wide range of power and lens options
Smooth housing with no screws exposed
3000K/4000K Selectable
Tempered glass protecting optic lens
No upward light spill
IP66 - Ingress protection
IK08 - Impact rating
High efficacy of >120 lm/W
Expected life >130,000hrs @ L70
Adaptor included to suit 60mm and 76mm poles
Easy to maintain with driver in the pole
DALI-2 option available
5 year warranty

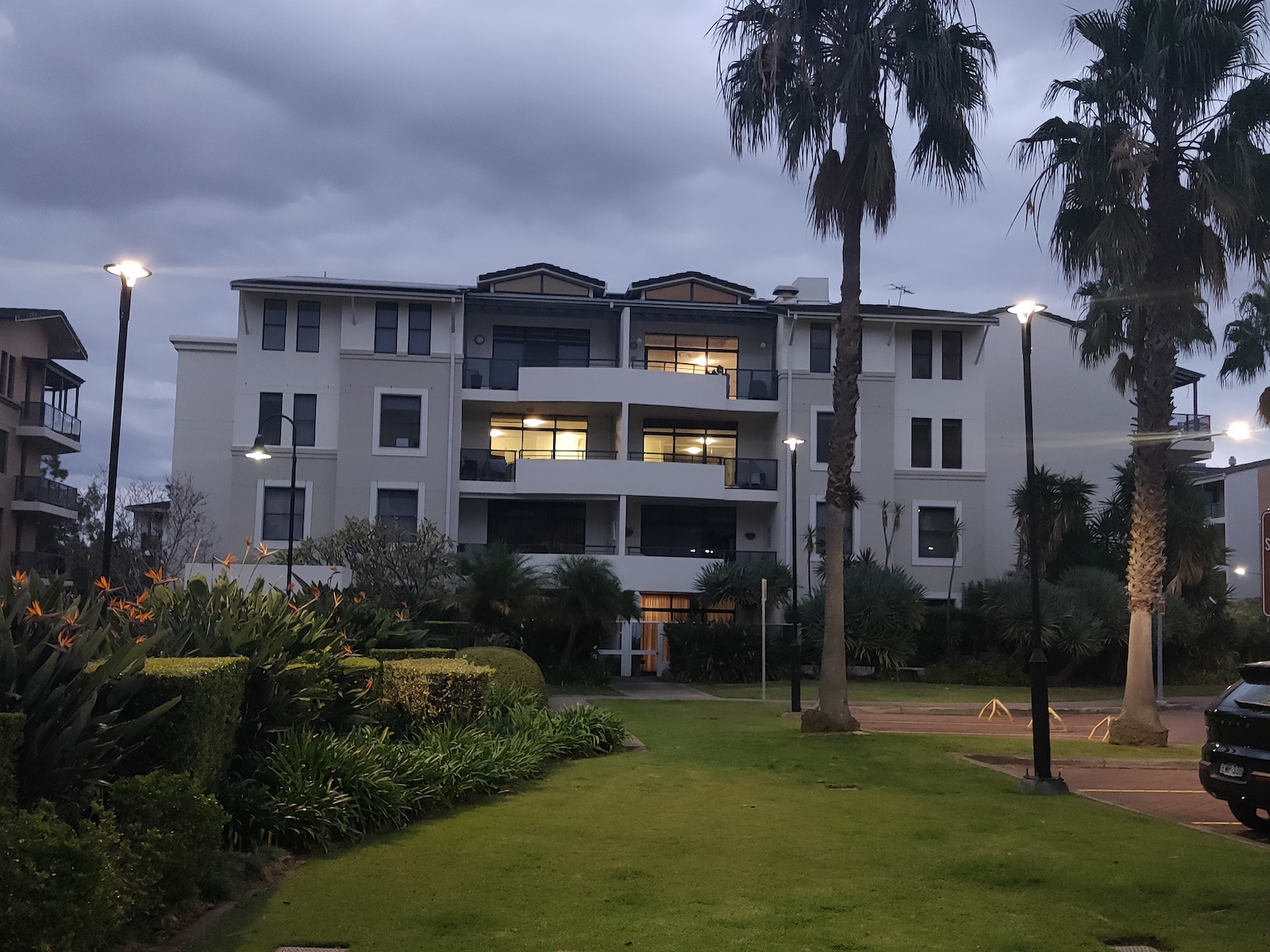

Applications
MODEL | SELECTABLE POWER(W) | LUMEN | DIMENSIONS | WEIGHT(kg) |

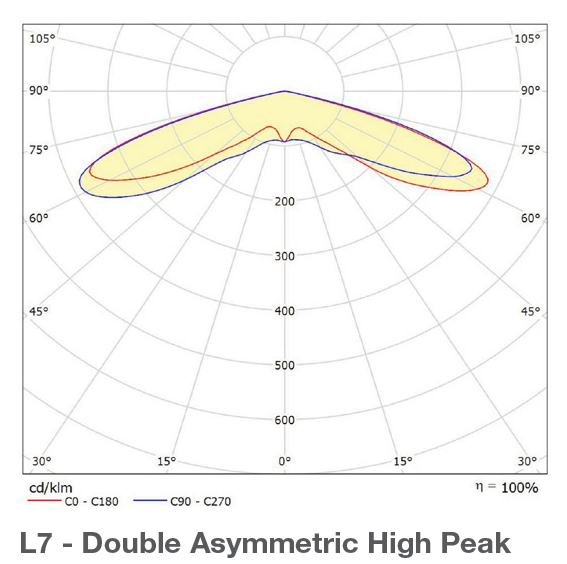

YPT60A-8CS-L7 | 18, 30, 45, 60 | 2170, 3800, 5900, 8000 | ø450x526mm | 7.5 |
YPT100A-8CS-L7 | 30, 50, 75, 100 | 3800, 6100, 8900, 11780 | ø450x526mm | 8.2 |

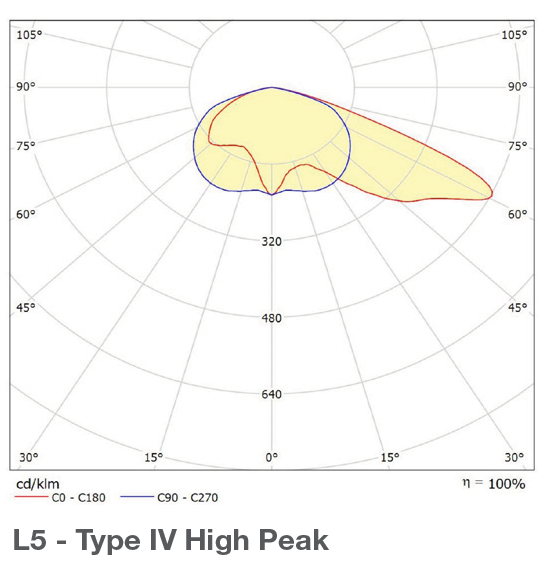

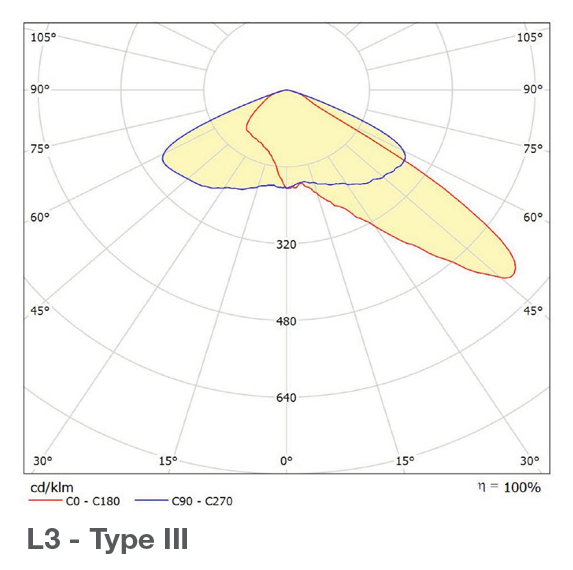

The above models are stocked. Other lens types are available on order. For L3 and L5 lens types, replace L7 with L3 or L5. DALI models only feature the CCT switch. Contact enLighten for DALI model numbers. |
OPTICAL |
|
Light source | Seoul Semiconductor |
Lumen output | 2170 - 11800 lumens |
CRI | Ra>80 |
CCT | 3000K/4000K (selectable) |
Luminaire efficacy | >120 lm/W |
ELECTRICAL |
|
Power consumption (W) | 18 - 100 |
Operating frequency | 50/60 Hz |
Operating voltage range | 100 - 277 V AC |
Power factor | >0.9/240 AC at full load |
Driver efficiency | >90% |
ENVIRONMENTAL |
|
IP rating | IP66 |
Impact rating | IK08 |
Weight | 7.5 - 8.2kg |
Ambient temperature range | -30°C to +50°C |
Material Composition (body) | Black powder coated diecast aluminium |
Material Composition (lens) | Tempered glass and polycarbonate optical lens |
Expected Lifespan | >130,000 hours @L70 |

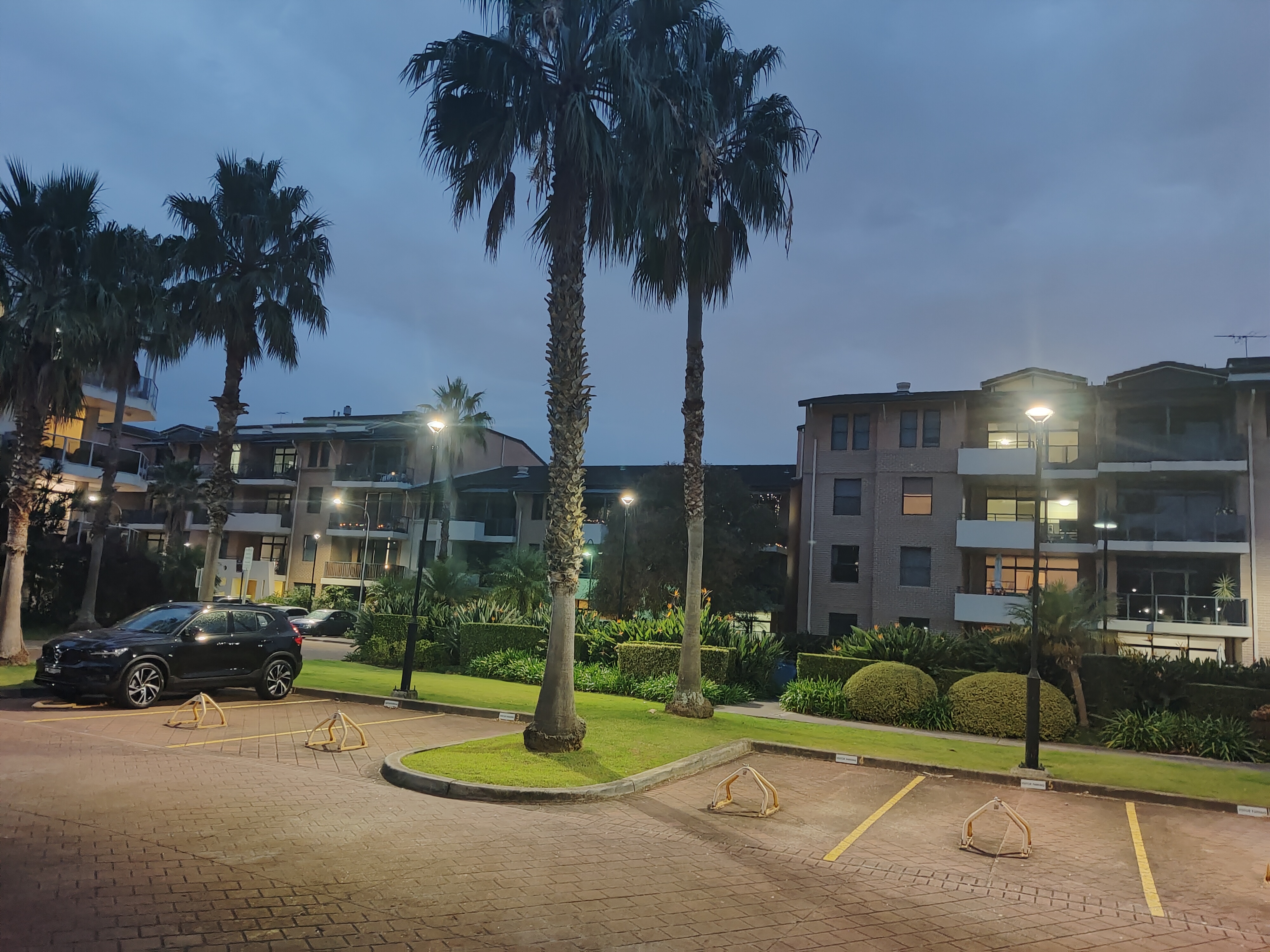

Alessandro Mattiolo, Managing Director, A1 Sparky
Riviera Apartments, Chiswick
‘We recently installed the new Yindi area light. It’s design is aesthetically pleasing, easy to install, securing it into position was simple and it has ample room for termination.
The variety of lens available makes it perfect for any complex.
I highly recommend this light’.
