Tauro Black HT
Ultra durable, high temperature high bay
Perfect where reliability is critical
Designed for illuminating large interior spaces where reliability is critical.
Low maintenance high bay that operates well in high temperature environments, it comes with a massive 10 year warranty.
A wide range of optics make this light suitable for both open spaces and racking environments. These optics will ensure good uniformity and vertical illumination creating a safe work environment.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key Features
Controls-ready programmable LED driver with ultra-long lifetime
High temperature rating – designed to operate at 60°C
Industry leading efficacy of up to 165 lm/w using Nichia LEDs
Up to 40% more efficient when compared to standard LED highbays

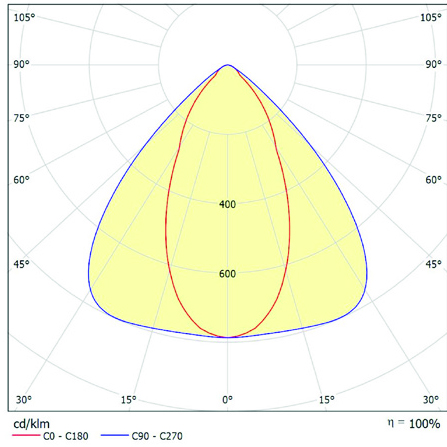

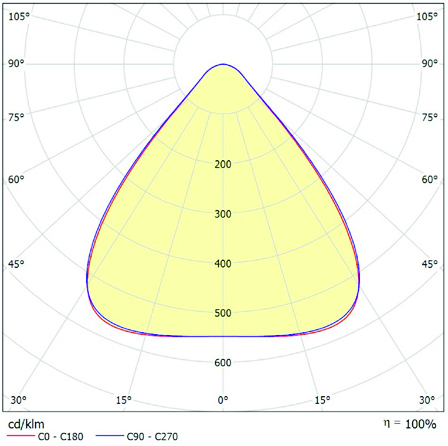

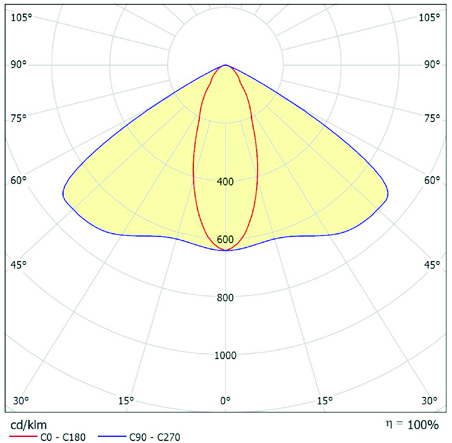

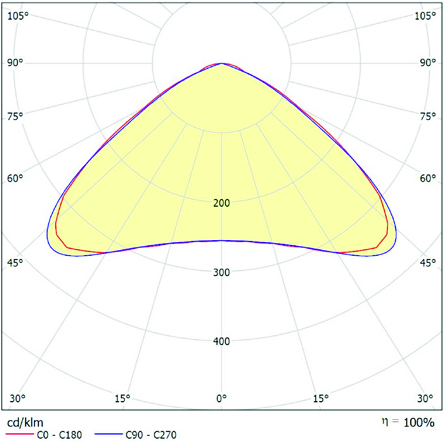

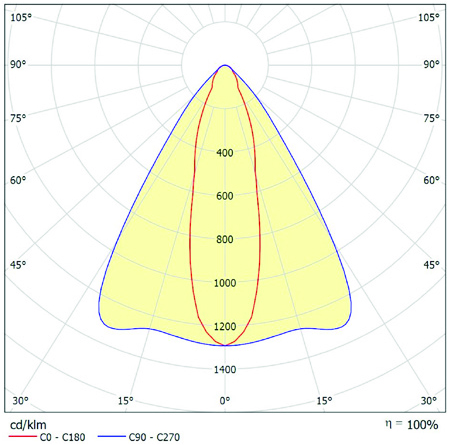

Variety of optics available – symmetric & asymmetric
Wide range of sizes 90W–240W to cover low to high ceilings
Optional controls through the high temperature rated daylight harvesting & motion sensor controller
Durable and robust with IP65 & IK10
Hanging kits included for easy mounting
10 year warranty
Applications
MODEL | LUMEN | POWER | SIZE LxWxH (mm) | WEIGHT (kg) |
TB90HT | 14,100 | 90 | 718 x 137 x 102 | 4.7 |
TB120HT | 18,700 | 120 | 948 x 137 x 102 | 5.7 |
TB150HT | 23,000 | 150 | 1178 x 137 x 102 | 6.9 |
TB180HT | 27,700 | 180 | 718 x 275 x 102 | 8.5 |
TB240HT | 37,100 | 240 | 950 x 299 x 102 | 10.3 |
|
OPTICAL | |
Light Source | Nichia LEDs |
Lumen output | 14,100 – 38,550 lumens |
CRI | Ra>70 standard; Ra>80 optional |
CCT | 5000K standard, 4000K optional |
Luminaire efficacy | 151-165 lm/W |
Beam angle | Symmetrical & asymmetrical racking |
OPTICAL | |
Light Source | Nichia LEDs |
Lumen output | 14,100 – 38,550 lumens |
CRI | Ra>70 standard; Ra>80 optional |
CCT | 5000K standard, 4000K optional |
Luminaire efficacy | 151-165 lm/W |
Beam angle | Symmetrical & asymmetrical racking |
ENVIRONMENTAL | |
IP rating | IP65 |
Impact rating | IK10 |
Net Weight | 4.7, 5.7, 6.9, 8.5, 10.3 kg (+/- 0.3kg) |
Ambient temperature rating | -30°C to +60°C |
Material Composition (body) | Aluminum Alloy |
Material Composition (lens) | Polycarbonate |
Expected Lifespan | >130,000 hours at L70 |
SMART CONTROL SENSOR
The Tauro Black highbay has a smart control sensors for daylight harvesting and motion detection. The highbay sensor is an LED lighting control device that can detect motion and ambient light when mounted up to a maximum height of 12m. Gain up to 40% increase in energy savings using sensors.
| Design features:
Operating modes of the high bay sensor:
|
The smart control sensor can achieve up to 3-step dimming functions between high light output (100%), stand-by dimming (10-50%) and off. An integrated photo electric (PE) cell detects ambient light levels and will adjust the light output according to preset lux thresholds.
The intelligent lux level auto-commissioning function calibrates the target lux level automatically which simplifies the commissioning process.
MODEL | DIMENSIONS (mm) |
TB90HT | 718 x 137 x 102 |
TB120HT | 948 x 137 x 102 |
TB150HT | 1178 x 137 x 102 |
TB180HT | 718 x 275 x 102 |
TB240HT | 950 x 299 x 102 |
