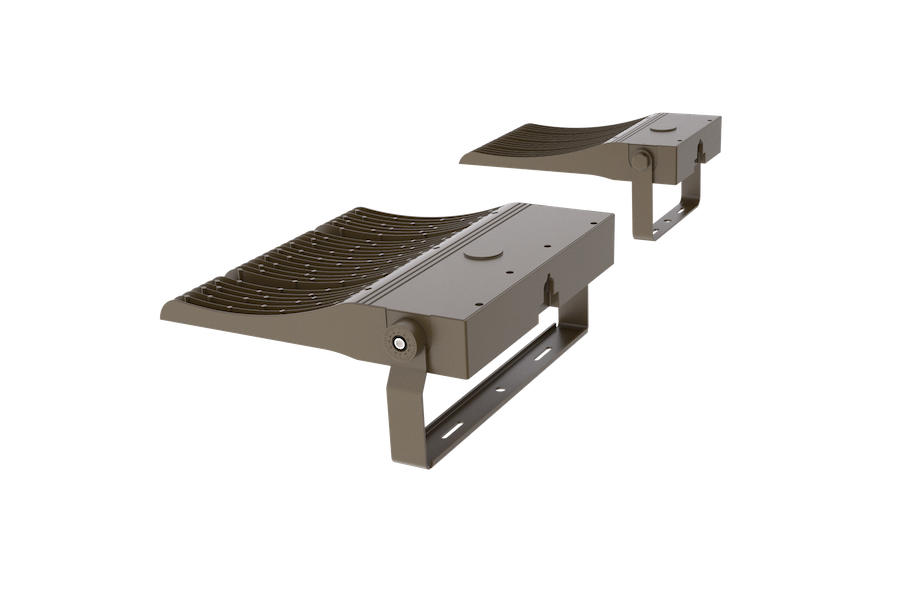

SuperNova
High powered multiple optic floodlight
The SuperNova™ LED floodlight is a high powered solution perfect for any industrial estate, mid-sized sporting field or court. Improve area safety and visual comfort by delivering quality area light using tailored asymmetric optics.
Minimise light pollution and spill into nearby premises using full cut off optics, glare control and optional backward spill guard. Achieve a perfect balance between superior optical performance and energy consumption.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Optional Features
Key Features
Multiple optic floodlight
Directional light throw to minimise light pollution
Improved visual comfort with tailored asymmetrical lens
High luminaire efficacy greater than 140 lm/W
Long lasting Seoul Semiconductor LEDs with over 130,000 hours operating life at L70

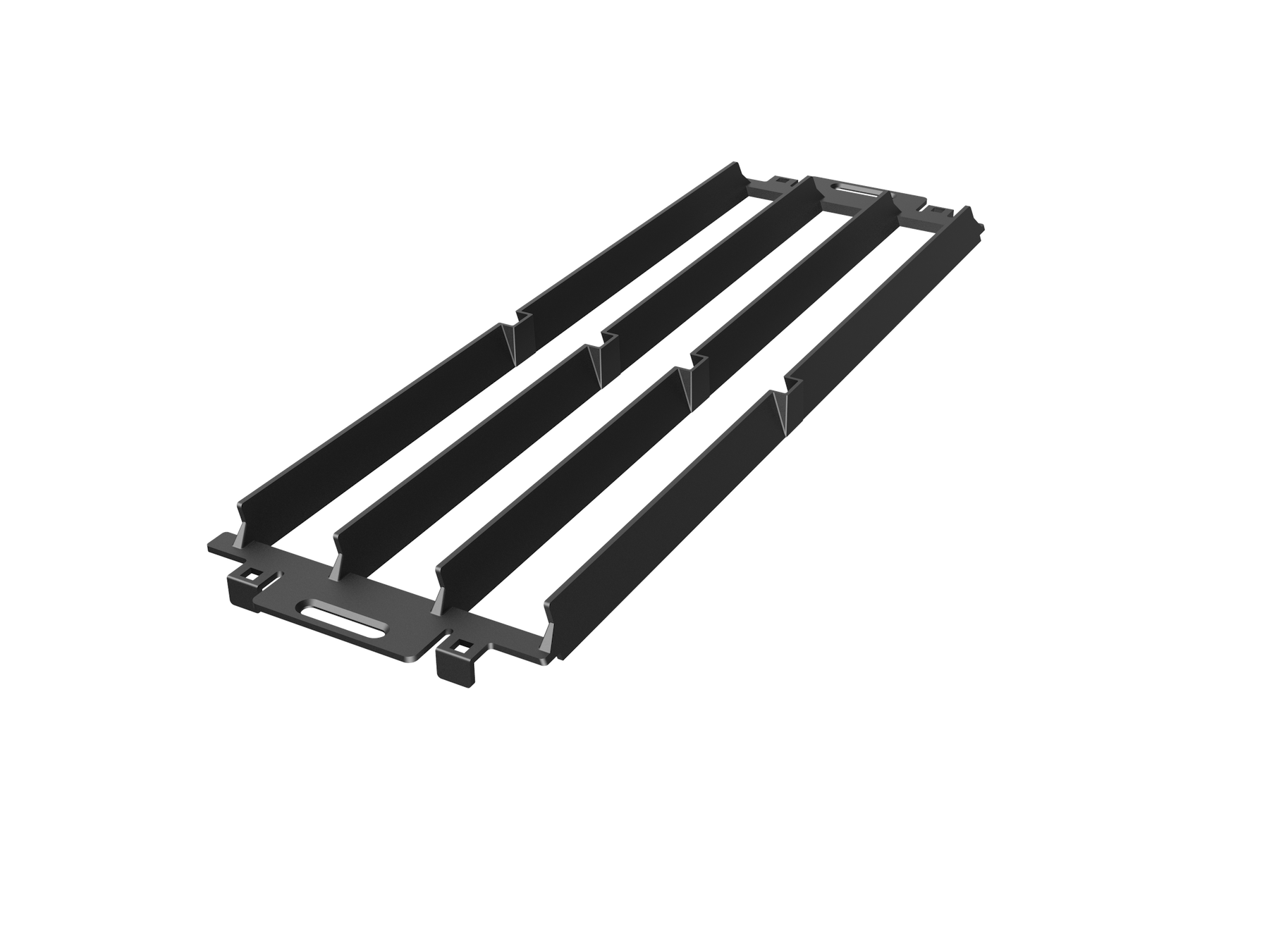

Optional back spill guard to control light trespass
Highest impact resistance: IK10
IP66 ingress protection
Easy installation with a versatile bracket for flexible angle adjustment
Robust, water resistant UV stabilised case
Lightning surge protection: 10 kV
Pole mount adaptors available
5 year warranty
VEU approved
IPART approved
Applications
Lumen Output and Rated Power (W)
Model # | Lumen | Rated |
SFL-180-40K-Lx | 25,200 | 180 |
SFL-240-40K-Lx | 33,600 | 240 |
SFL-300-40K-Lx | 42,000 | 300 |
SFL-450-40K-Lx | 63,000 | 450 |
SFL-600-40K-Lx | 84,000 | 600 |
Optical
Lumen output | 25,200 - 84,000 lumens |
CRI | Ra>70, Ra>80 &Ra>90 |
CCT | 4000K standard; 3000K & 5000K |
Luminaire efficacy | >140 lm/W |
Beam angle | 9 lens optics |
Electrical
Power Consumption | 180W, 240W, 300W, 450W, 600W |
Operating frequency | 50 Hz |
Operating voltage range | 220 - 240V AC |
Power factor | >0.9/240V AC |
Environmental
IP rating | IP66 |
Impact rating | IK10 |
Net weight | 9.3 kg to 21.4 kg |
Ambient temperature range | -30° to +50°C |
Inclusions | U-Shaped bracket |
Warranty | 5 years |

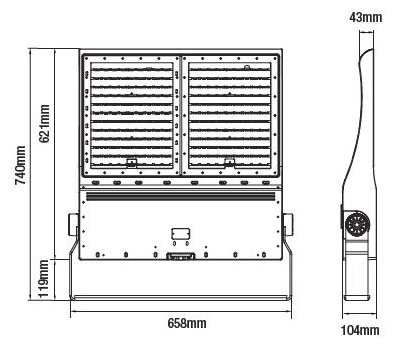

SIZE AND PRODUCT WEIGHT
Model # | Size | Weight (kg) |
SFL-180-40K-Lx | 685 x 362 x 94 | 9.3 |
SFL-240-40K-Lx | 685 x 362 x 94 | 9.3 |
SFL-300-40K-Lx | 685 x 362 x 94 | 9.9 |
SFL-450-40K-Lx | 740 x 658 x 104 | 19.9 |
SFL-600-40K-Lx | 740 x 658 x 104 | 21.4 |
CSM Trade Services
NSW Port, Botany Bay
Quality uniform light was achieved over a 10,000 sqm truck yard at the NSW Port in Botany Bay. Night time visibility is paramount for safety in a busy and often crowded truck yard. The SuperNova flood lights were mounted on a 16m pole and replaced old high pressure sodium lights.
View the video to see what CSM Trade Services thought about the SuperNova.

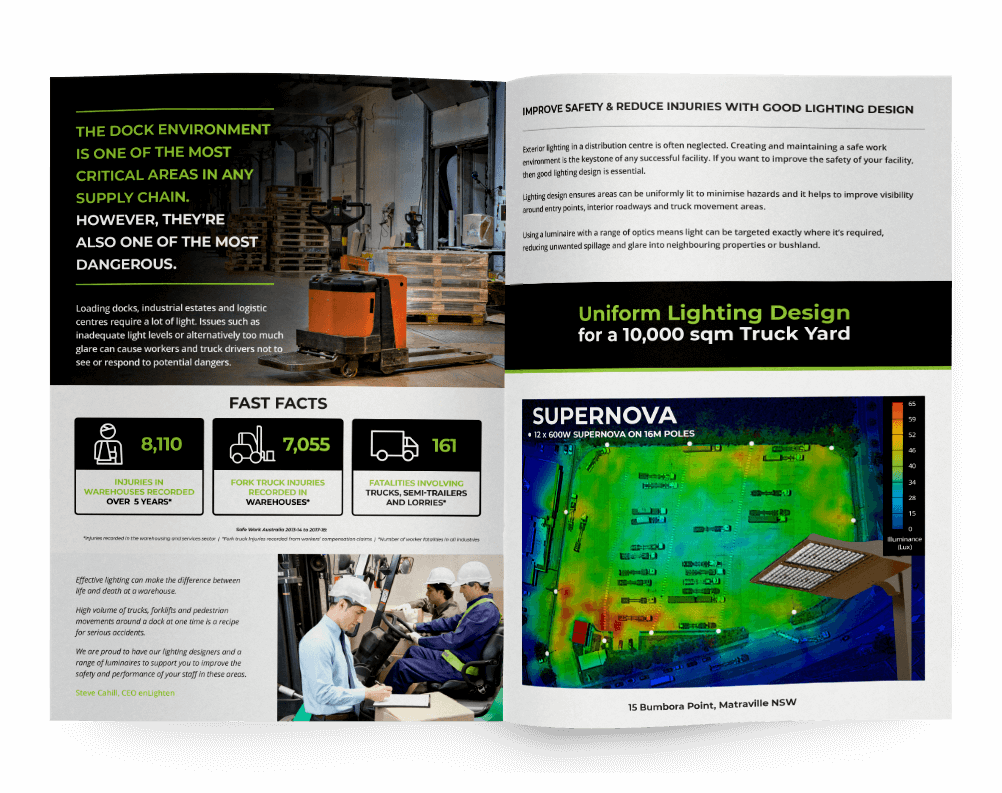

Distribution Centre Lighting guide
