Mirador Surface
Non-maintained LED emergency light
The Mirador Surface is an ultra-bright wide angle surface mounted emergency light that provides emergency illumination to allow the occupants of a building to safely exit in the event of a mains power failure.
It is a non-maintained emergency light that achieves a high emergency classification of D80 as per AS/NZS 2293. It uses an environmentally friendly LiFePO4 battery with a long lifespan and a fast-charge rate.
If you're looking for a more advanced Emergency lighting system, explore enlink, our monitored emergency lighting system.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Key Features
Operating Mode - Non-Maintained
Slimline Surface Mount Box with 1.2m flex & plug
Emergency Classification: D80
Compliant to AS/NZS 2293
IP20 - Ingress protection
Commissioning Self-Test: Automatic commissioning test 16 hours after install
Duration Self-Test: Automatic duration testing every 3 months
Long life LiFePO4 battery
5 year warranty (2 years for battery)
Applications

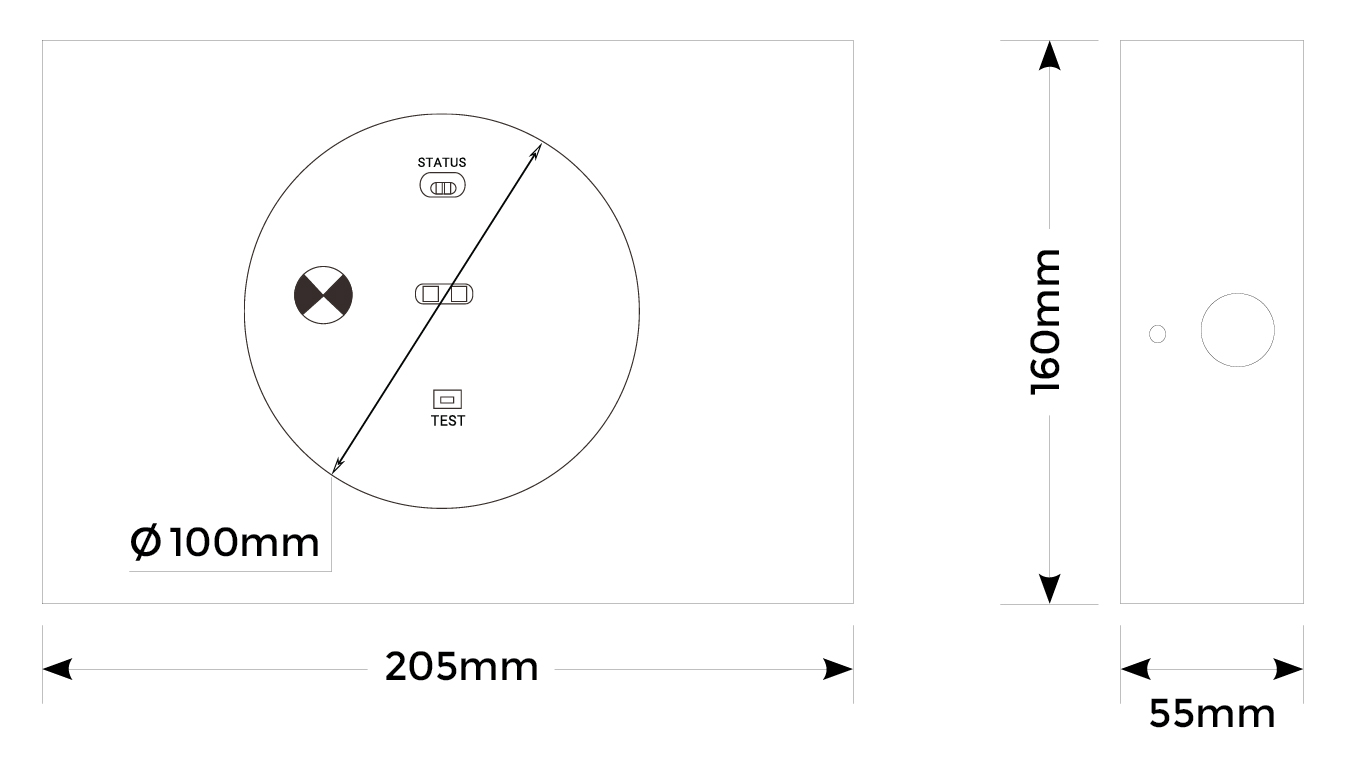

MODEL | DIMENSIONS (mm) | RATED POWER (W) | WEIGHT (kg) |
MIRA-EL-D80-SM | 205 x 160 x 55 | 4 | 1.05 |
OPTICAL |
|
Light source | Osram LEDs |
Mode of operation | Non-Maintained |
Emergency Duration | >180 minutes |
ELECTRICAL |
|
Power consumption (W) | 7W charging mode, 4W standard mode |
Operating voltage & frequency | 220-240VAC, 50Hz |
Charger | BMS controlled constant voltage charging |
Battery type | LiFePO4 |
Battery rating | 3.2Ah, 3.2V, 10.24Wh |
Protection | Overcharge, low voltage disconnect, overcurrent, short circuit |
ENVIRONMENTAL |
|
IP rating | IP20 |
Weight | 1.05kg |
Ambient temp. range | 1°C to +40°C |
Material Composition (body) | Powder coated metal box, flame retardant ABS disc |
|
|
CONTROLS |
|
Testing facility | Manual test switch |
Indicators | Battery charger green LED |
COMPLIANCE |
|
AS/NZS 2293 | D80 |
