Chamaeleon Deco 3
Microwave sensor controlled bulkhead light
A robust bulkhead light that is easy to customise, adjustable brightness and dual colour temperature switch.
Ideal for every corridor, lobby and building exterior. It is available in emergency and nonemergency.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product features
Emergency & non-emergency options available
Adjustable brightness - 100%/70%/50% luminance options within same fitting
Dual colour switch - with the flick of a switch choose either 3000K warm white or 4000K natural white colour tone
2 & 3 Step sensor dimming - offers full, standby & off modes
Smart daylight sensor - your lights only turn on when needed
Flicker free
Low standby power - 0.5W to 5.5W
Expected life >54,000 @L70 delivered by high quality LEDs
5 year warranty

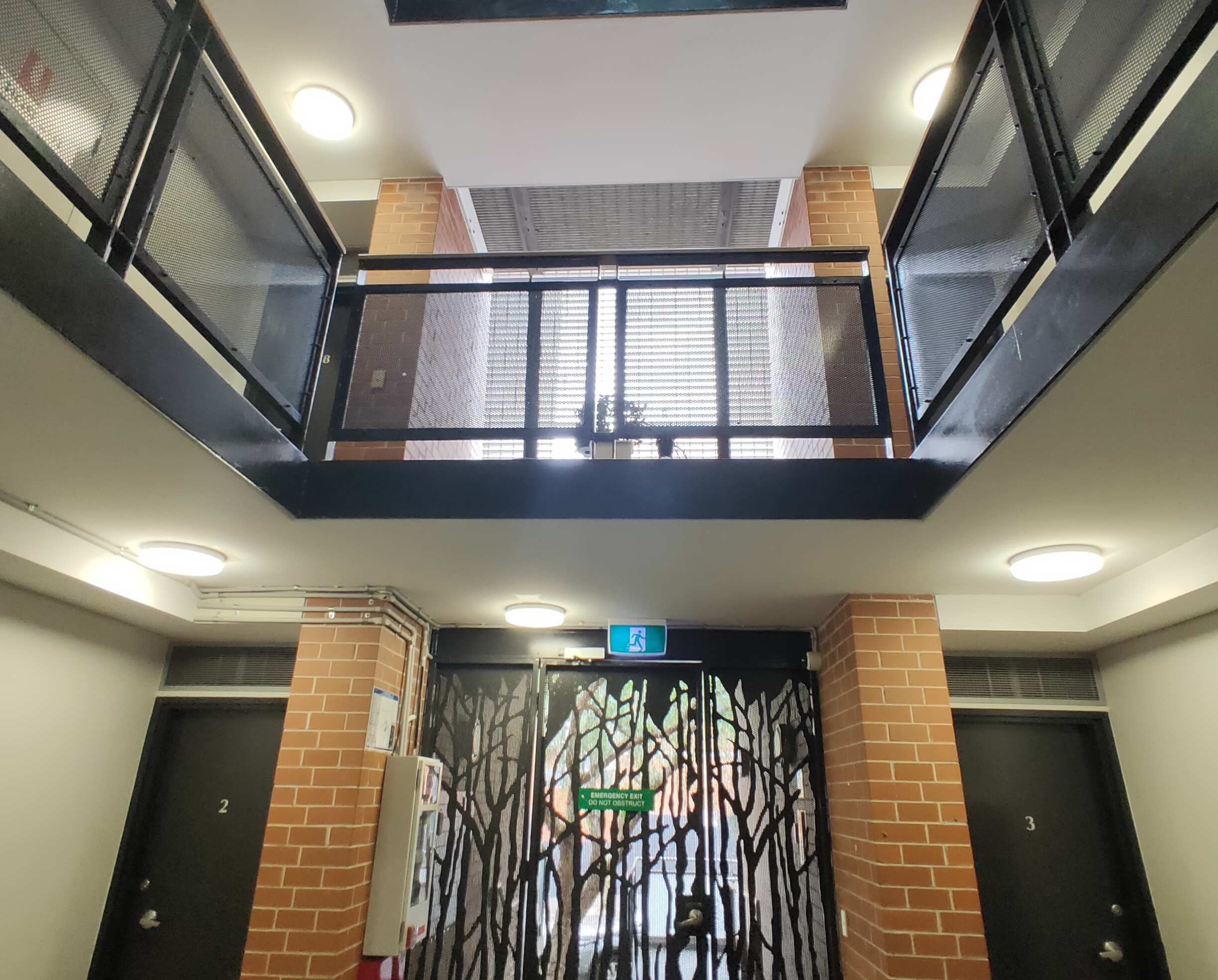

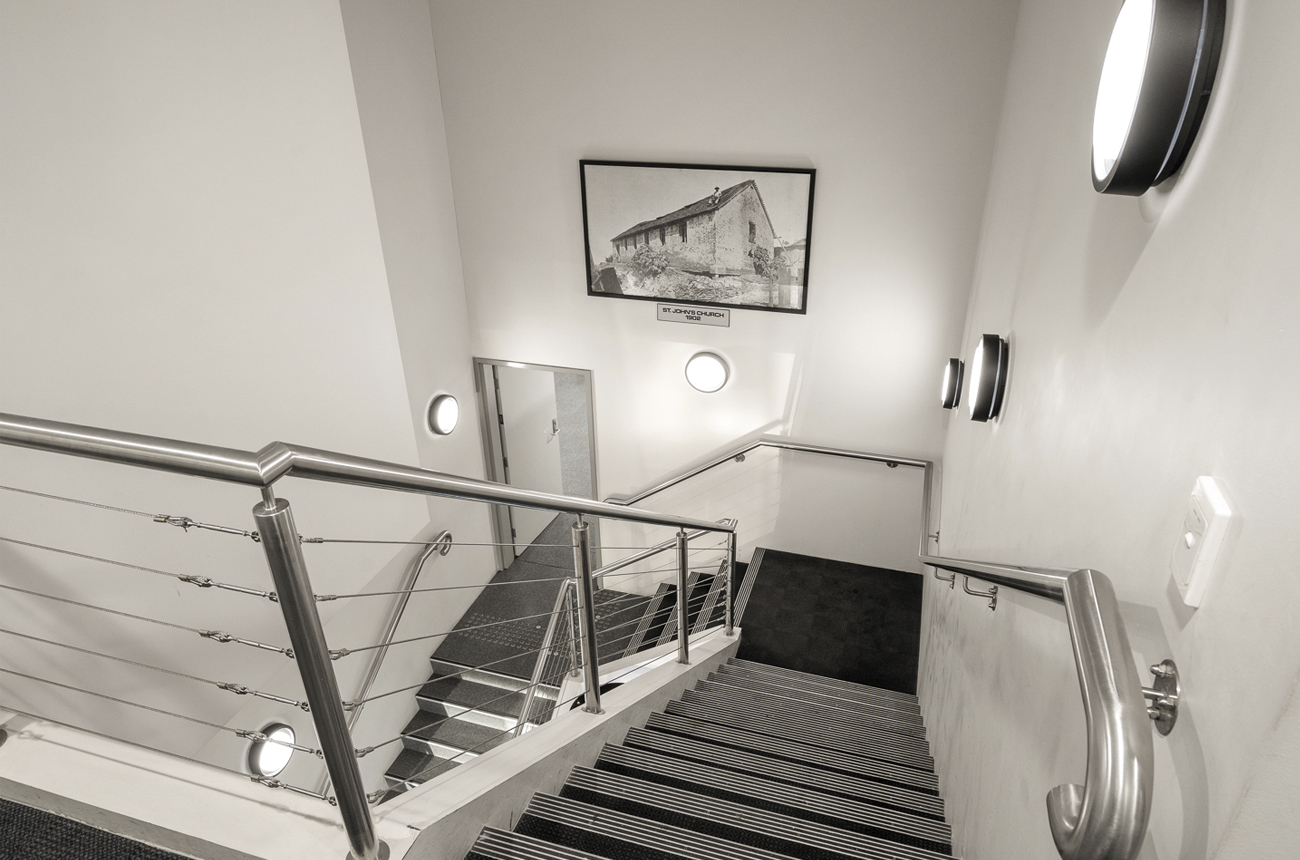

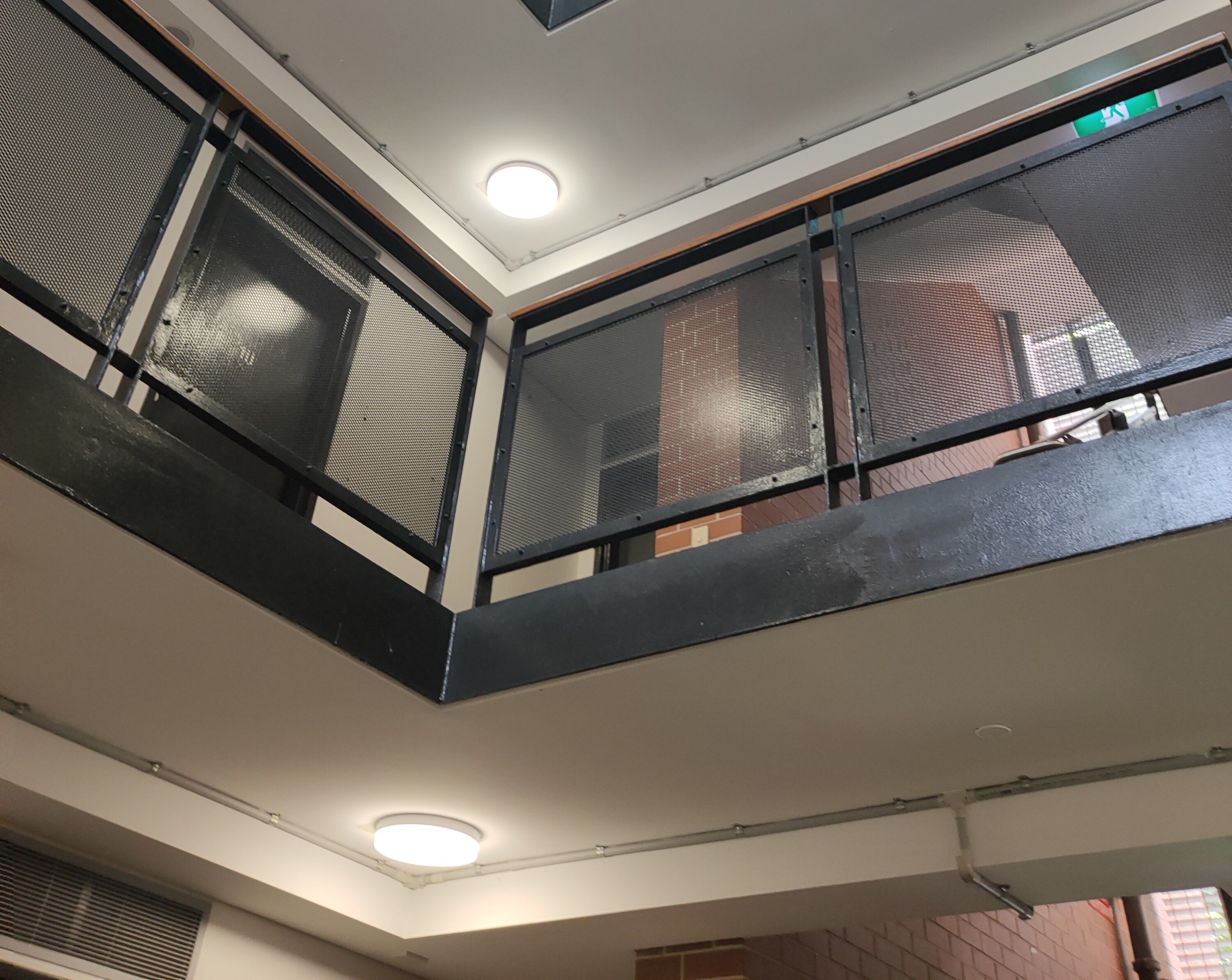

Applications
PRODUCT RANGE |
|
D3-CHAM | Chamaeleon Deco 3 Standard with built-in microwave motion & daylight sensor |
D3-CHAM-E | Chamaeleon Deco 3 Emergency with built-in microwave motion & daylight sensor |
D3-CHAM-P | Chamaeleon Deco 3 Standard |
D3-CHAM-E-P | Chamaeleon Deco 3 Emergency |
D3-CHAM-HO | Chamaeleon Deco 3 High Output With built-in microwave motion & daylight sensor |
OPTICAL |
|
Light source | LEDs |
Lumen output | 700lm - 2250lm |
CRI | Ra>80 |
CCT | Ra>3000K or 4000K (colour selectable) |
ELECTRICAL |
|
Power consumption | 16W Standard, 17W Emergency, 23 High Output |
Standby light level | 25%, 10% & off |
Standby power | 0.5W - 5.5W |
Operating voltage | 220 -240 V AC, 50/60Hz |
EMERGENCY LIGHT |
|
Battery type | 6.4V 1500mAh LiFePO4 |
Discharge time | 90 minutes |
ENVIRONMENTAL |
|
IP rating | IP66 |
Impact rating | IK10 |
Weight | 2.5kg standard, 2.9kg emergency |
Temperature range | -20°C to +40°C (Standard), 0°C to +40°C (Emergency) |
Material Composition (Body) | Die Cast Aluminium |
Material Composition (Diffuser) | Polycarbonate |
Expected Lifespan | >54,000 hours @L70 |
CONTROLS |
|
Selectable Brightness | Allows for adjustable brightness, select 1500lm, 1000lm or 700lm |
Smart daylight sensor | Standby at dusk, full light when motion is detected and switches off automatically with morning light |
Integrated motion sensor | 2 & 3-step dimming to standby level or off |
Spare Parts |
|
Replacement battery pack | 6.4V 1500mAh LiFEPO4 Part # SPC-BATT-D3 |
