Mirador Exit
Maintained LED Exit Sign with Slide’n’Connect quick fit bracket
The Mirador Exit Sign is a highly reliable, longlife and cost effective product that complies with AS/NZS 2293.
The Slide’n’Connect quick fit bracket allows for fast ceiling or wall mount installation, simple wiring and ease of maintenance.
This one box solution has a range of decals for every location. Our Exit Sign uses environmentally friendly LiFePO4 battery.
This product performs the dual role as a Maintained Exit Sign with max 24m viewing distance & a Maintained Emergency Light with D3.2 emergency classification. It is well suited for use in commercial, educational, retail, strata & health care buildings.
If you're looking for a more advanced Emergency lighting system, explore enlink, our monitored emergency lighting system.
Product Downloads
Secure Zone Documents
Log in to access our secure documents area, where you'll find the latest IES files, spacing guides, installation instructions, and answers to frequently asked questions for all our lighting products.
If you do not have a login you can request access.
Product Features
Key Features

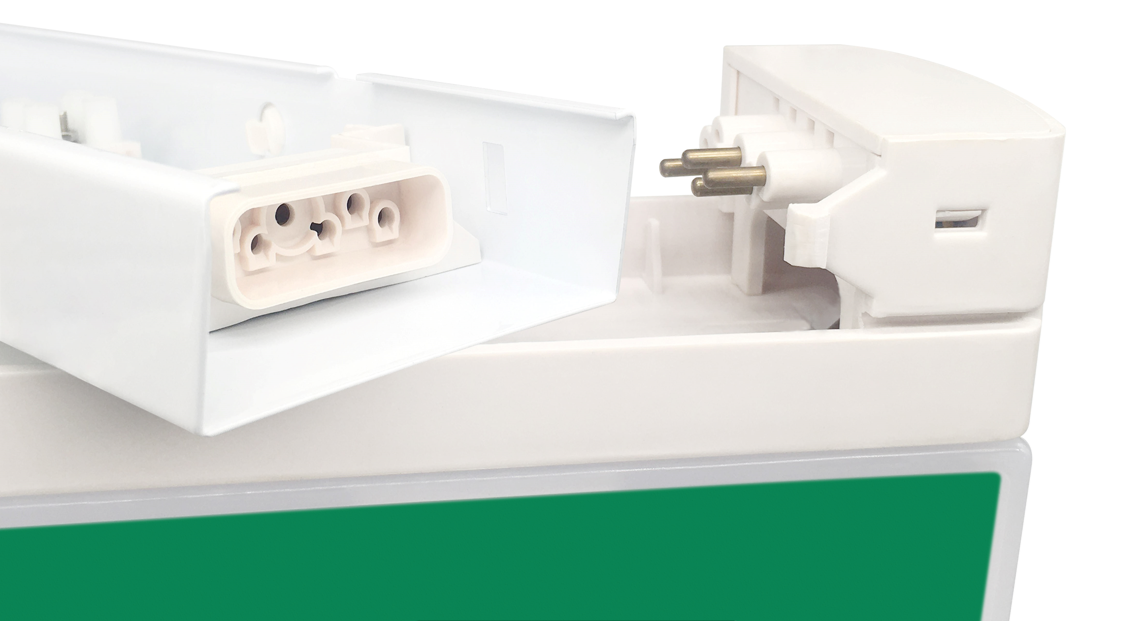

Slide’n’Connect quick fit bracket for easy installation
Single or Double Diffuser with a selection of directional decals included
Max. viewing distance: 24m
Emergency Classification: D3.2
Expected LED life: >110,000hrs @L70
Emergency duration: >180 minutes
IP20 – Ingress protection
Commissioning Self-Test: Automatic commissioning test 16 hours after install
Duration Self-Test: Automatic duration testing every 3 months
Long life LiFePO4 battery
5 year warranty (2 years for battery)
Applications

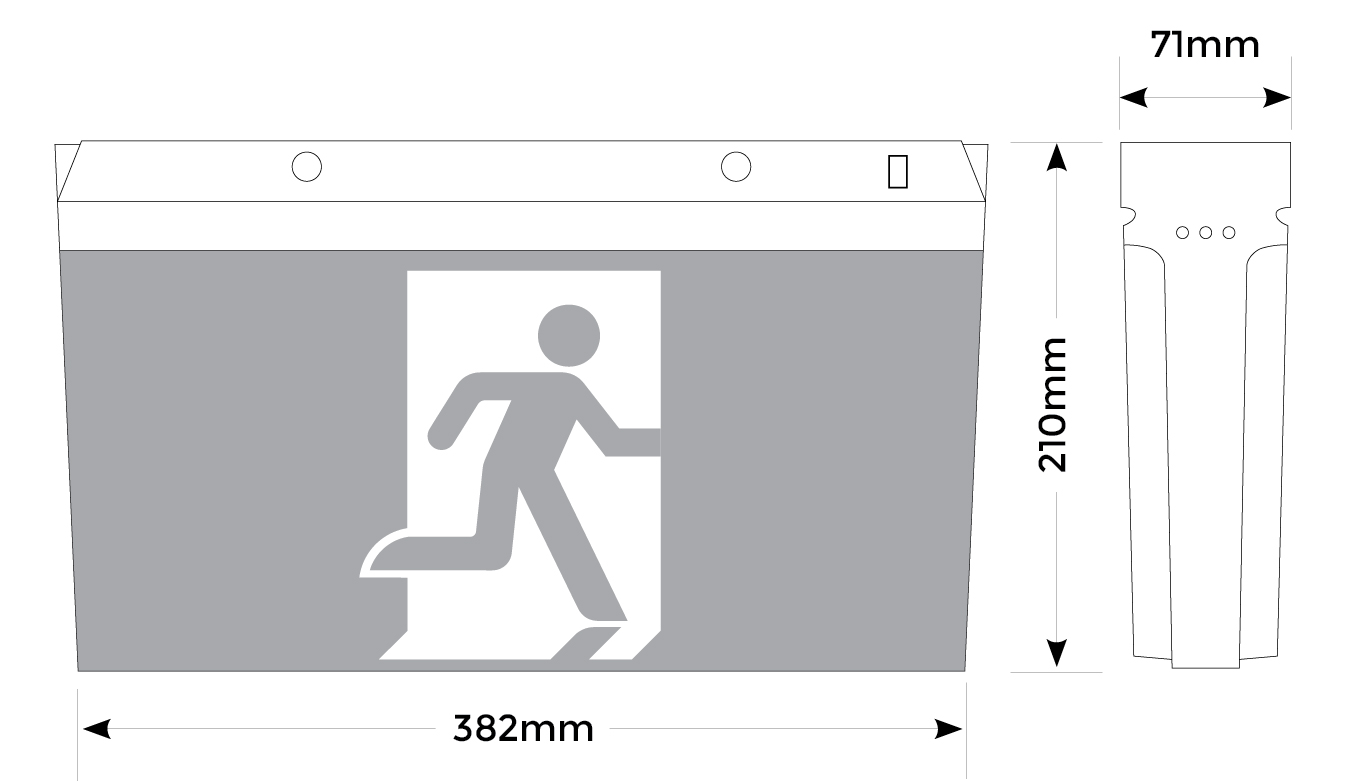

MODEL | DIMENSIONS (mm) | RATED POWER (W) | WEIGHT (kg) |
MIRA-EXIT-SC | 382 x 71 x 210 | 2 | 1.5 |
OPTICAL |
|
Light source | Osram LEDs |
Mode of operation | Maintained |
Emergency Duration | >180 minutes |
ELECTRICAL |
|
Power consumption (W) | 4.5W Charging Mode | 2W Standby Mode |
Operating voltage & frequency | 220 - 240V AC, 50 Hz |
Charger | BMS controlled constant voltage charging |
Battery type | LiFePO4 |
Battery rating | 4.8Wh, 3.2V 15000mAh, LiFePO4 |
Protection | Overcharge, low voltage disconnect, overcurrent, short circuit |
|
|
ENVIRONMENTAL |
|
IP rating | IP20 |
Weight | 1.5kg |
Ambient temp. range | 0°C to +40°C |
Material Composition (body) | Flame retardant ABS body, powder coated metal bracket, PS diffuser |

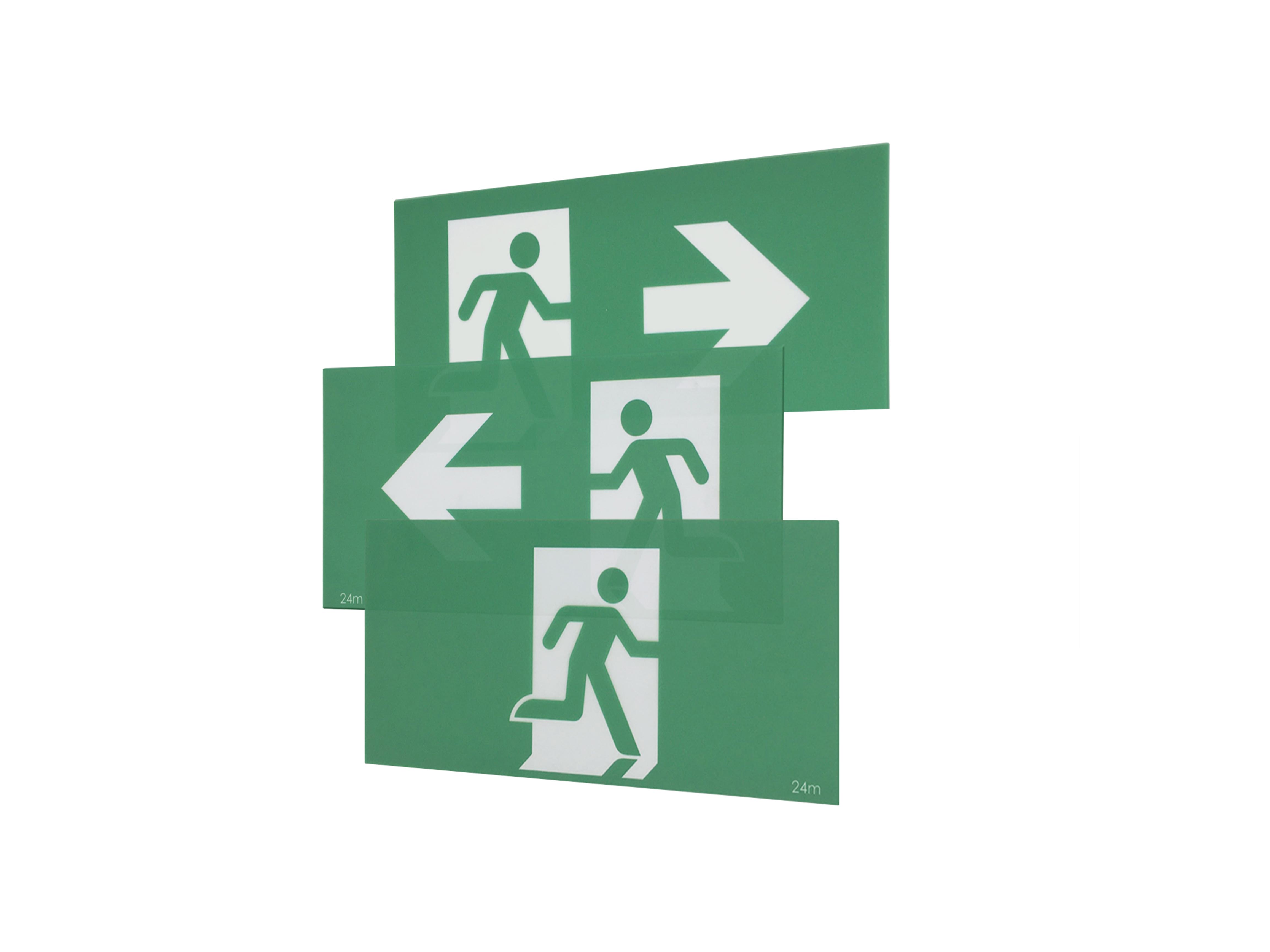

Decals | Arrow Left, Arrow Right, Running Man |
CONTROLS |
|
Testing facility | Manual test switch |
Indicators | Battery charger green LED |
COMPLIANCE |
|
AS/NZS 2293 | D3.2; 24m max. viewing distance |
