What is an LM80 report & how can it help to evaluate LEDs?

Written by: Steve Cahill | Published: 27-Apr-2015

With the explosion of LED lighting products onto the market, the LM-80 is an international industry standard to assess and compare LED performance and an important part of the equation in assessing the complete LED luminaire's performance or reliability.

The question for electrical contractors, wholesalers, energy project companies, designers and consultants is how to assess and compare luminaire quality and communicate the findings to end customers.

Here at enLighten, we are aware of low performing  imitations of enLighten's patented Chamaeleon light and encourage scrutiny via LM-80 and TM-21 reports to assist lighting professionals easily evaluate and compare LED components within a luminaire. They are also an important part of the equation in assessing the complete LED luminaire's performance or reliability.

What is LM-80?

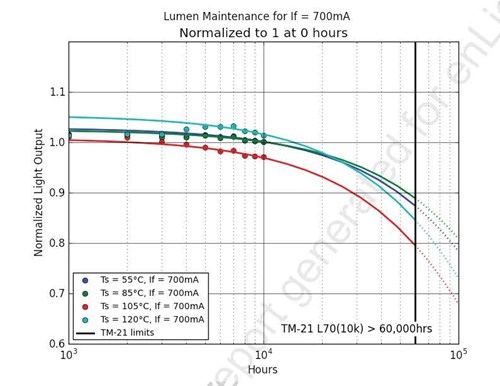

Fig 1: LM-80 graph of Lumileds LUXEON M LED

LM-80 is a standardised testing method for measuring the lumen depreciation of  LED modules or chips over a period of time and under certain set conditions. Before the advent of LM-80, LED component manufacturers each reported lumen maintenance data using their own disparate and varied systems.

LM-80 is one part of a larger puzzle of overall LED luminaire performance or reliability. Other components, including the LED optical system, heat sink, LED drivers and luminaire housing, should also be taken into consideration to form a full picture of an LED luminaire' s projected useable life.

Is the LED chip's lifetime rating the same as the luminaire's lifetime?

No, but how quickly the light output of the LED chip will depreciate will certainly help to determine the useful lifetime of the product (luminaire) in which the LED will be used.

Once an LED chip has reached the minimum 6,000 required test hours for LM-80,  a lifetime extrapolation, known as TM-21, is applied to the test data. TM-21 is the internationally recognised method for projecting lumen degradation of LEDs beyond the LM-80 test data.

For example, as a customer of Lumileds LUXEON LED range, we can claim a 60,000-hour-or-more lifetime for our Chamaeleon IIZorro, Medici, Cincinatti, Tauro Blu and Tauro Eco luminaires. This claim is supported by the 6,000-10,000 hour LM-80 test results of the component LUXEON LEDs, extrapolated by TM-21.

When will an LM-80 test report be used?

The state government energy efficiency certificate schemes, including the NSW Energy Savings Scheme, the Victorian Energy Saving Incentive Scheme and the SA Retailer Energy Efficiency Scheme all require LM-80 reports as supporting documentation for LED luminaire product accreditation. Once approved, commercial lighting upgrades using these products which reduce energy consumption will be able to generate tradeable certificates which will return a financial rebate to the project hosts.

For more information go to Rebates, Grants & Incentives.

Related articles: Avoiding the pitfalls of the LED lighting quality gap
